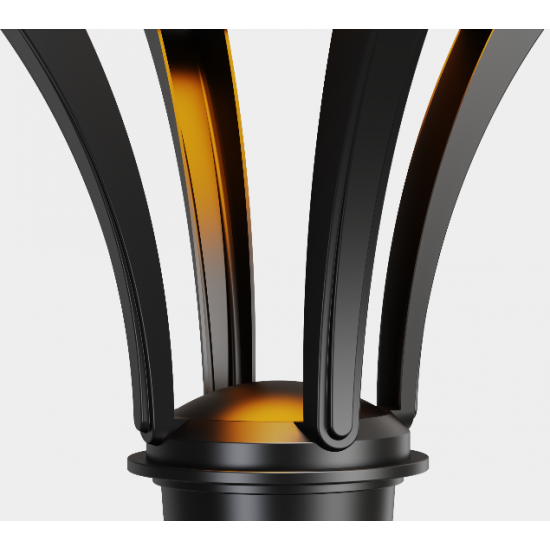

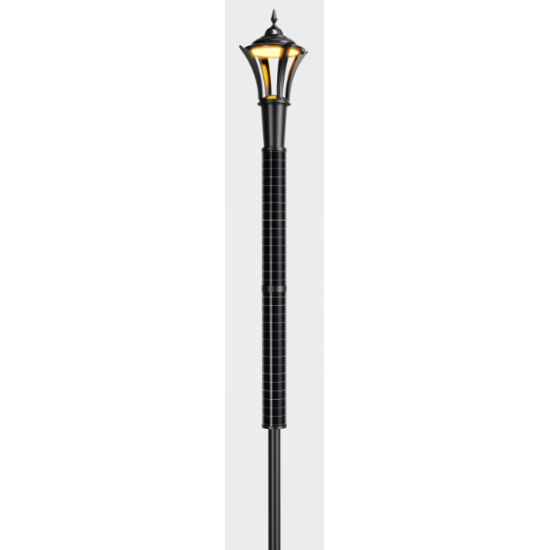

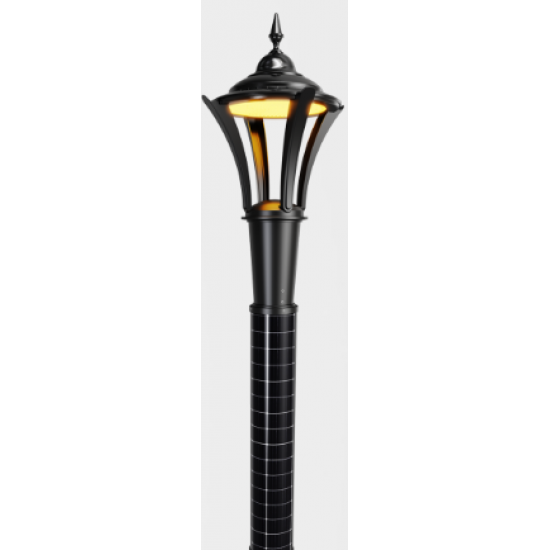

PO38 Solar 15W~25W LED Street Light (With Pole)

This solar powered street light fixture is perfect for applications where a more traditional aesthetic look is required and/or where a conventional flat solar panel would be detracting. This fixture is designed to attach to the top of a suitable 3" OD pole and the vertical, cylinder style solar panel attached below.

This pole top fixture is available with a choice of LED power (15W to 25W) and vertical solar panel sizes depending on the required lumen output, the hours or times of operation, and the geographic location of the installation site. It features powerful Osram LEDs, and internal high-capacity lithium battery and a single or double module vertical solar panel. It has programmable feature that allow one or more dimming modes and a choice of operating times. The fixture is of die-cast construction with a powder coated black finish. It's suitable for pole up to 20'. It can be attached to the top of a suitable 3" OD pole or to other diameters with a tenon adaptor (available as an option). The fixture allows the user or installer to select a desired LED color temperature (warm white 3,000k or daylight white 5,000k). This solar powered pole light is ideal for use as a retro-fit fixture. Great for residential and commercial applications as well as in public spaces, parks, walking trails, play areas, mailboxes, and dog parks, etc. An ideal choice for private and gated communities, HOA's, etc. It can be used for general outdoor areas, small parking lots, small streets, and sidewalks, etc. Color of fixture is black. Color of light output is white. Pricing from $1,799.99.
PLEASE NOTE - THIS IS A SPECIAL ORDER, MADE-TO-ORDER SOLAR STREET LIGHT.

Performance
Programmable operating modes.
Typical mode would be automatic on at dusk for up to 14 hours at 100% output then reduce to 25% output for up to 5 hours or until dawn.
Dimming option available for any duration.
Remote control option is available by special order.
Up to 3 days reserve (autonomy) power to allow for cloudy days (subject to local conditions).
A a microwave motion sensor can be incorporated into this fixture by special order.
Mounts to a suitable 3" OD pole (pole not included).
Commercial grade quality.
IP 65 weather rated.

Light Fixture
15W, 20W, or 25W LED power.
2,000, 3,000, 4,000 or 5,000 lumen output.
Fitted with multiple Osram LEDs.
Die-cast aluminum construction.
Powder coated black finish.
Other colors available via special order.
User selectable LED color temperature (CCT).
Select either warm white 3,000k or daylight white 5,000k.
Other color temperatures available by special order.

Battery
A preinstalled high-capacity LiFePO4 battery is included.
Battery capacity is 307.2WH or 614.4WH.
12.8V 154 Watt-hour lifePO4 lithium battery is supplied and pre-installed.
Battery is replaceable when necessary.

Pole
This fixture is supplied complete with a choice pole heights.
Custom pole heights are available by special order.
The pole is made of galvanized steel and with a satin black painted finish.
The 10' (3M) pole is approximately 9' 10" (300cm) high and has a welded base plate of approximately 3/8" (9.5mm) thick and approximately 10" x 10" (25cm x 25cm) square.
The 15' (4.5M) pole is approximately 14' 9" (435cm) high and has a welded base plate of approximately 3/8" (9.5mm) thick and approximately 10" x 10" (25cm x 25cm) square.
The 20' (6M) pole is approximately 19' 10" (605cm) high and has a welded base plate of approximately 3/8" (9.5mm) thick and approximately 11" x 11" (28cm x 28cm) square.
The 10' and 15' pole base has four pre-drilled elongated holes 3/4" wide.
The 10', 15', and 20' pole is approximately 3" (76mm) diameter (O.D.) at the top and approximately 4.5" (115mm) diameter at the base.
The 10', 15', and 20' poles are supplied with a rebar/anchor kit is included for installation into wet concrete with nuts, bolts and washers.
The 10' and 15' poles can be fixed to an existing concrete pad using suitable expanding anchor bolts (not included).
The 20' pole has a square flat base (flat plate) with pre-drilled holes for installation which are approx. 13/16" (20mm diameter).

Controller
Internal MPPT charge controller.
Charge controller stops over charge and over discharge of battery.
Controls lighting modes and operation.

Solar Panel

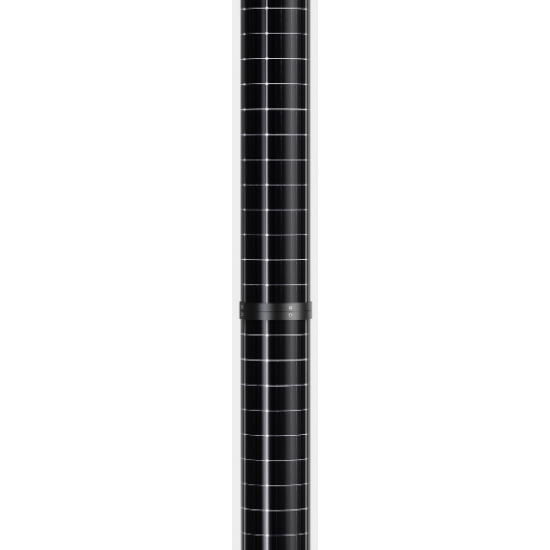

The light fixture is supplied with a vertical, cylinder type of solar panel.
It can be supplied with a single 100W solar panel or a pair to create 200W.
Each 100W module is approx. 36" long.

Installation
Lamp requires full, direct sunlight throughout the day.
Suitable for mounting on a pole 10' to 20' high and 3" OD.
Avoid installing in shaded areas, around trees or tall structures.
Can be attached to other pole diameter using a tenon adaptor (not included).

With valid warranty registration, this fixture is offered with a 24 month warranty (excluding battery), in accordance with our Terms, Conditions, and Policies.

Please Note:
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
