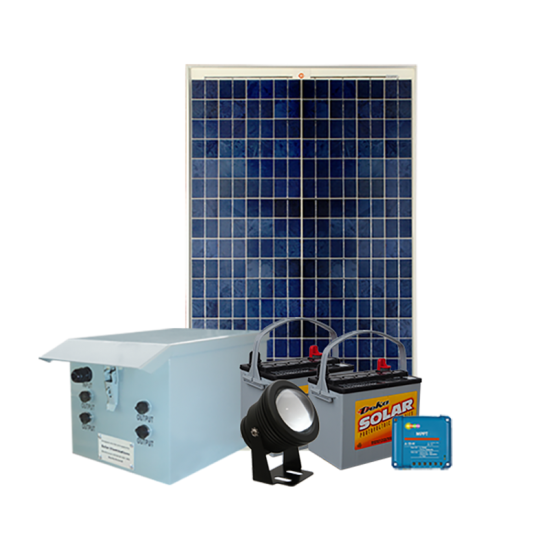

PDF DataThis solar-powered exterior lighting system includes up to four 7 Watt 800 lumen spot lights perfect for up-lighting trees, flag poles, church crosses, or other tall structures. The system includes the necessary components such as solar panel, batteries, MPPT charge controller, weather-proof battery enclosure and necessary cables.
A commercial grade system that is built to last! The solar-powered exterior lighting system is capable of providing dusk to dawn illumination, 8 hours illumination, or any other required illumination period. The system is supplied with the appropriate sized solar panel and batteries based on the winter weather conditions in your location. Other factors for solar panel and battery sizing include the quantity of light fixtures supplied with the system, and the desired illumination time. Spot light color temperature options include white, warm white or RGB.
To determine the appropriate system for your application please refer to the map and table below. Select your zone based on the installation location, then find the correct system option based on the quantity of lights and desired illumination time.
Perfect for use where electricity is unavailable or where it is too expensive to install. This solar-powered exterior lighting system can also be used for outdoor up lighting applications.
Please note that the installation location and desired light fixture power (Wattage) will determine the appropriate sized solar panel and batteries for your system. Please refer to the zone map and options table below, and select the correct system option from the drop down bar above.
1 - Using the map below as a reference, determine what zone your installation site is located in

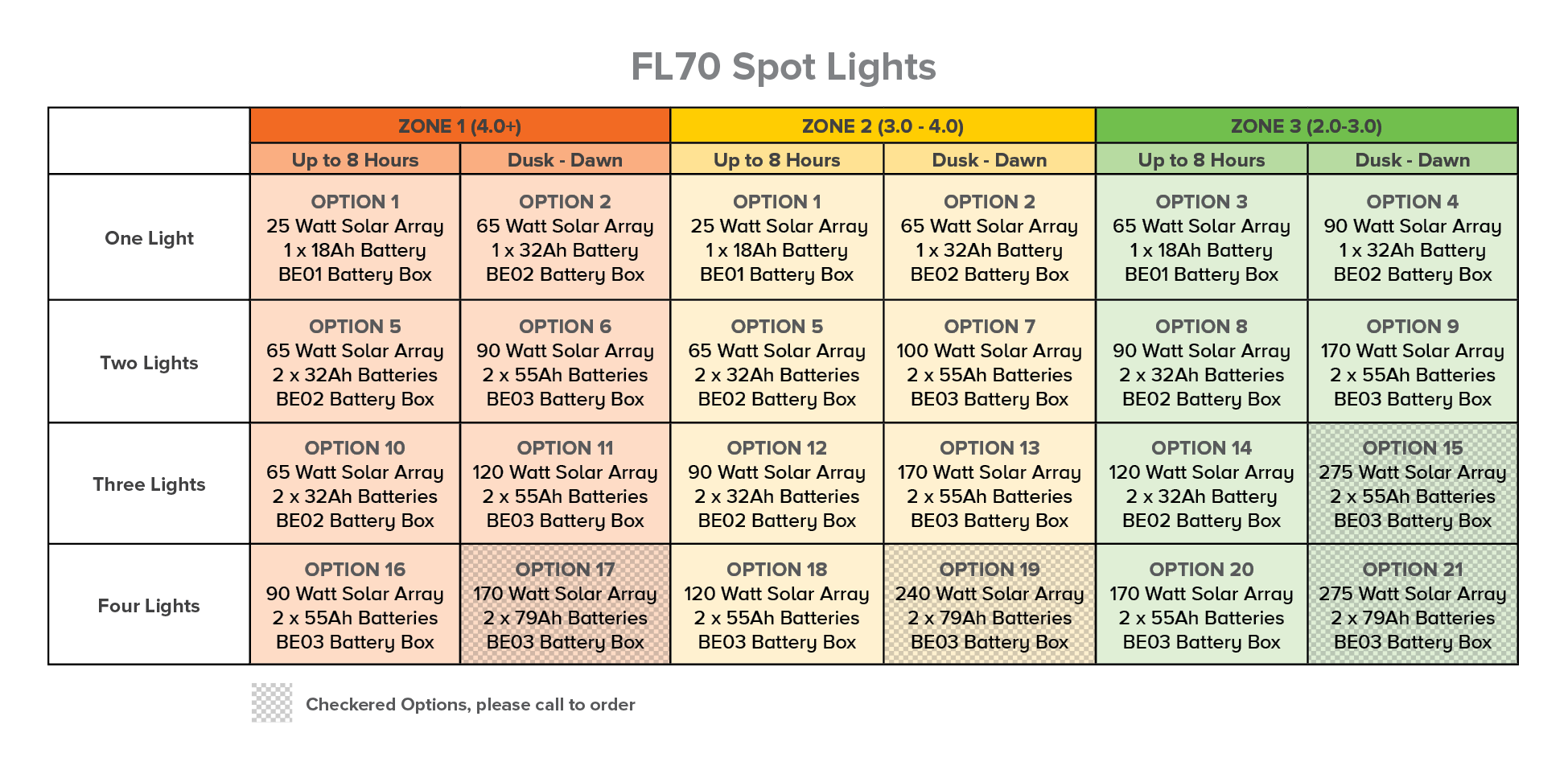

2 - Using the table below, determine what system option you should select. Choose your desired lamp power, and illumination period within your zone. The point where the two intersect will be the system option you require.
For installation sites in zone 4 or outside of the United States, please contact our sales department for system requirements and pricing. The zone map above is based on estimations and may not be accurate for all areas. For the most accurate solar panel sizing we suggest contacting our sales department. If you require a system with an illumination time other than 8 hours or dusk to dawn, please contact our sales department.
Performance
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Dusk to dawn illumination available as well as up to 8 hours illumination.
Select the appropriate system based on desired quantity of light fixtures, illumination time, and installation location.
Light Fixture
Up to four spotlight is included in this system.
Additional light fixtures can be added up request.
The spotlight is fitted with powerful 10W SMD/LED.
Total 800-950 Lumens per lamp (subject to color temperature).
LED beam angle is approx. 60 degrees.
Choice of white, or RGB (multi-color LED)
White LED color temperature is approx. 6000-6500k.
RGB LED provides 16 different colors, dimmable feature and color changing option.
RGB model comes complete with an IR remote control.
The light fixture is weather rated to I.P 65.
The light's mounting bracket has pre-drilled holes to allow fixing using screws or bolts (not included).
Black colored finish of light.
The light is fitted with approximately 18' (5.5m) of pre-wired cable which is pre-plugged ready for easy connection to the battery box.
Additional cable is available as an option.
Light fixture dimensions approx. 3" long x 3" (8cm x 8cm) diameter.
Battery
12V DC system.
One or two high capacity 12 Volt batteries are supplied.
Battery type is AGM. Gel battery is available by special order.
Battery capacity is dependent on quantity of light fixtures and desired illumination time.
Battery Box
A remote battery box is supplied to accommodate the batteries.
A weatherproof battery box is supplied to accommodate the battery.
The battery box has a removable front which is lockable (padlock not included).
The battery box also houses the charge controller.
Battery box size varies based on required batteries.
Solar Panel
A aluminum framed, tempered glass solar panel is supplied.
Size of the solar panel will be based on quantity of light fixtures and installation location.
Solar panel is supplied with 18' (5m) of cable.
Solar panel cable routes to battery box.
Extension cables available upon
Solar panel mounting triangles included to allow installation to a flat surface.
Pole mount hardware available as an optional extra.
Please refer to data sheet for more information.
Control Module
Supplied with a MPPT charge controller which automatically controls the solar panel power, battery charging and lighting function and operation.
An optional Bluetooth dongle can be purchased to allow access to the charge controller history and programming options.
Provides extended battery life and extra protection against excessive battery discharge and overcharge.
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Lighting control features illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Operating temperature is -22 deg. F (-30 deg. C) to 140 deg. F (+60 deg. C).
Installation
Easy to install. All connections are simply plug & play.
The solar panel support is supplied with a fold-out 'U' shape bracket which can be used to mount it to a suitable surface.
The light's mounting bracket has pre-drilled holes to allow fixing using screws or bolts (not included).
Subject to warranty registration, a limited 20 year solar panel warranty applies and a limited 5 year warranty on all other components (excluding batteries). Battery warranty (if applicable) is with the battery manufacturer.* Warranty registration is required (after purchase), otherwise a standard 30 day limited warranty will apply. After making your purchase, go to www.solarilluminations.com/registration to register your warranty.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
*View our Terms, Conditions and Polices (including our Returns Policy) for further information.
