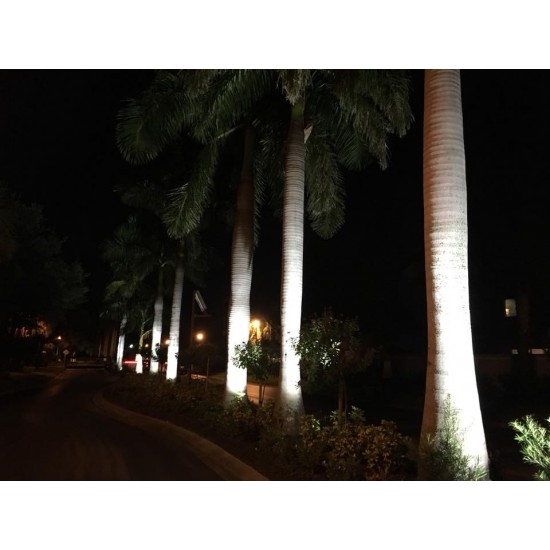

Up-lighting trees, landscapes, or other tall structure can be accomplished with this commercial grade spot light system. Supplied with between one and three 1380 lumen LED spot lights, along with the necessary solar equipment.
Our system can illuminate from dusk to dawn, up to 8 hours or any other requested time period. The solar panel size and battery capacity supplied with the system are based on the winter weather conditions in your area to achieve reliable performance year-round. System includes solar panel, batteries, MPPT charge controller, weather-proof battery enclosure, necessary cables and solar panel mounting triangles. Systems supplied with higher powered lights and additional light fixtures are available upon request.
For appropriate system sizing for you location, determine the zone that your system will be installed in using the map below. Then refer to the table, select the desired illumination time in your zone, and decide on how many light fixtures needed. Determine what system option number you’ll need and make that selection in the drop down menu above.
1 - Using the map below as a reference, determine what zone your installation site is located in

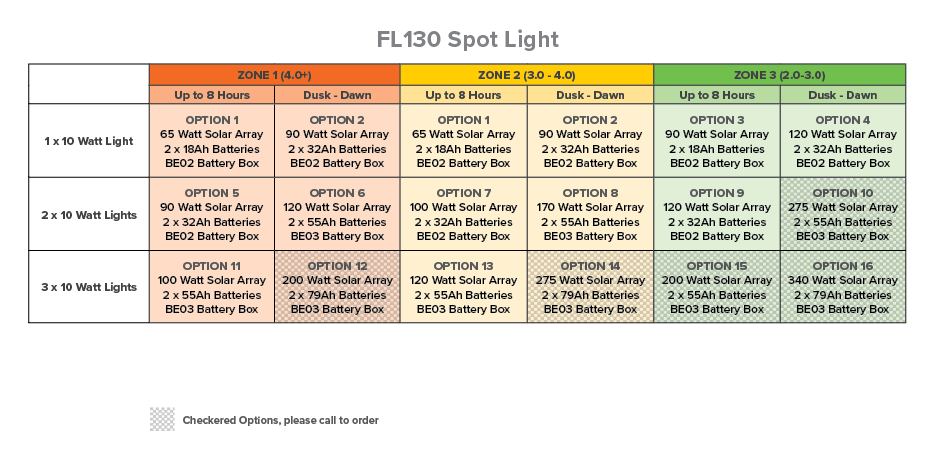

2 - Using the table below, determine what system option you should select. Choose your desired lamp power, and illumination period within your zone. The point where the two intersect will be the system option you require.
For installation sites in zone 4 or outside of the United States, please contact our sales department for system requirements and pricing. The zone map above is based on estimations and may not be accurate for all areas. For the most accurate solar panel sizing we suggest contacting our sales department. If you require a system with an illumination time other than 8 hours or dusk to dawn, please contact our sales department.
Performance
Manufactured in an ISO9001:2008 'Quality Assured' facility.
System allows for dusk to dawn illumination.
Contact our sales team for help determining the appropriate sized solar panel and batteries for you.
Each light is designed to illuminate a flag pole up to 50’ (15m).
Light Fixture

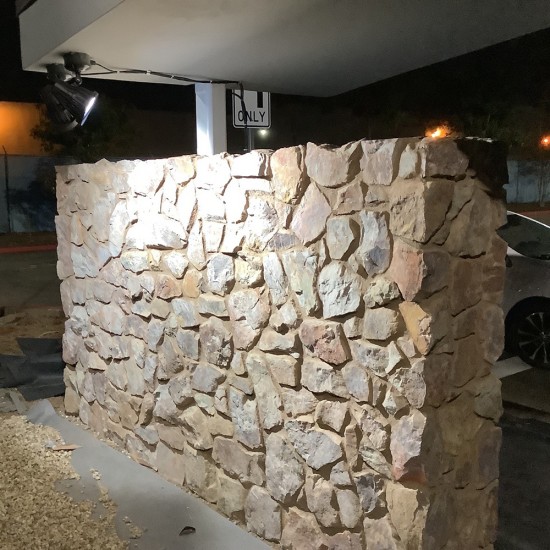

System includes up to three commercial grade weatherproof spot lights.
Offered in 10 Watts (1380 lumens) or 18 Watts (2500 lumens).
10 Watt light can illuminate flag poles up to 30ft
18 Watt light can illuminate flag poles up to 50 ft
Each spot light emits a concentrated 20 degree spot light beam.
Supplied with approx. 20’ of pre-wired and pre-plugged cable, to connect to the battery box.
Extension cables are available upon request.
The light is supplied with a ground spike for ground mounting.
Fitted with a 1/2" knuckle.
The light can be mounted to electrical boxes or posts with a 1/2" threaded bushing.
Color of fixture is green.
Product dimensions (main floodlight body) approx. 5.97" x 5.97" x 6.84".
Battery
12 Volt DC system
System is supplied with two 12V batteries connected in parallel.
Battery capacity varies depending on light power and illumination time.
Capacity options include 18Ah, 32Ah, 55Ah, and 79Ah
Typical life expectancy is between 3 to 5 years.
Battery Box

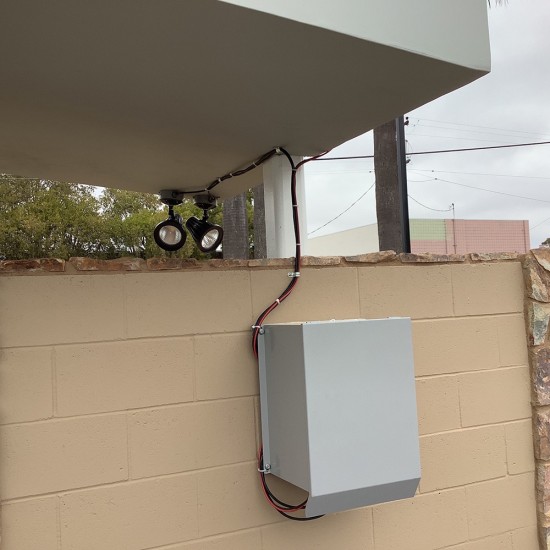

Supplied with an outdoor rated, weather proof battery enclosure.
Size and model of battery enclosure required is based on batteries supplied.
Battery enclosure options include BE02, BE03 & BE05.
All battery enclosures are lockable with the use of a padlock (not included).
Outlets are installed on BE02 & BE03 enclosures for “plug & play” connections.
Our battery enclosures are constructed from galvanized steel, with a gray painted finish.
BE02 dimensions: 9.9” x 15.75” x 8.9”
BE03 dimensions: 21.25” x 15.4” x 11.2”
BE05 dimensions: 20.5" x 13.6" x 33"
Control Module
Supplied with a MPPT charge controller which automatically controls the solar panel power, battery charging and lighting function and operation.
Ultra fast Maximum Power Point Tracking (MPPT).
The MPPT charge controller is typically 30% more efficient than standard PWM controllers and 10% more efficient to most other MPPT controllers.
Additional efficiency for cloudy weather and during times of reduced sun radiation.
This controller features the very latest smart technology.
Provides extended battery life and extra protection against excessive battery discharge and overcharge.
Battery life algorithm operates 24/7.
Low voltage detection for automatic disconnect.
Continuous environment, input and output power management.
The controller is sized to the system specifications with 10A and 15A versions available (subject to solar panel wattage and battery capacity).
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Lighting control features illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Dimming option (where applicable) allows the lighting to dim at any time during the illumination time.
The dimming option or any other illumination mode can be used in conjunction with motion activation (where applicable).
Dimming may be at any percentage from 1-99%.
Supports real time data monitoring (iPhone, Andriod, Mac or PC) with optional interface and/or Bluetooth dongle.
Battery voltage 12/24V dc auto select.
Rated charge current 10A/15A.
Maximum PV power (12V dc) is 135W at 10A and 200W at 15A.
Maximum PV power (24V dc) is 270W at 10A and 400W at 15A.
Maximum PV open circuit is 75V dc.
Solar Panel
Supplied with an aluminum framed glass faced solar panel
Solar panel size and power (Wattage) varies depending on light power, quantity of lights and installation location.
Solar panel(s) are supplied with a pair of mounting triangles for mounting on to flat horizontal or vertical surfaces.
Panel Wattage options include 25W, 65W, 91W, 108W, 124W, 174W, & 275W
25W panel dimensions: 13.88” x 22.63” x 1”
65W panel dimensions: 34.25” x 20.13” x 1.5”
91W panel dimensions: 32.35” x 26.22” x 1.5”
108W panel dimensions: 40.25” x 26.25” x 1.5”
124W panel dimensions: 47.87” x 26.43” x 1.5”
174W panel dimensions: 44” x 38.7” x 1.5” (or may be supplied as two 91W panels).
275W panel dimensions: 64.38” x 39” 1.5”
Installation
Easy to install. All connections are simply plug & play.
A pair of triangle shaped support frames are supplied for the solar panel.
Solar panel should be apropriately angled, facing south.
Solar panel should not be shaded from trees or near-by tall structures.
The light is supplied with a ground spike for ground mounting.
Fitted with a 1/2" knuckle.
The light can be mounted to electrical boxes or posts with a 1/2" threaded bushing.
Subject to warranty registration, a limited 20 year solar panel warranty applies and a limited 5 year warranty on all other components (excluding batteries). Battery warranty (if applicable) is with the battery manufacturer.* Warranty registration is required (after purchase), otherwise a standard 30 day limited warranty will apply. After making your purchase, go to www.solarilluminations.com/registration to register your warranty.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
