This solar parking lot light is available with a 35 Watt (3,570 Lumen), a 65 Watt (7,140 Lumen), a 100 Watt (10,710 Lumen) or a 135 Watt (14,280 Lumen) LED lamp. Sold as a complete system. It is also available in any LED power/wattage between 35W and 135W. Choice of pole sizes include 20', 26' or 33' Pole. Supplied as a complete system. Prices from $2,999.99.

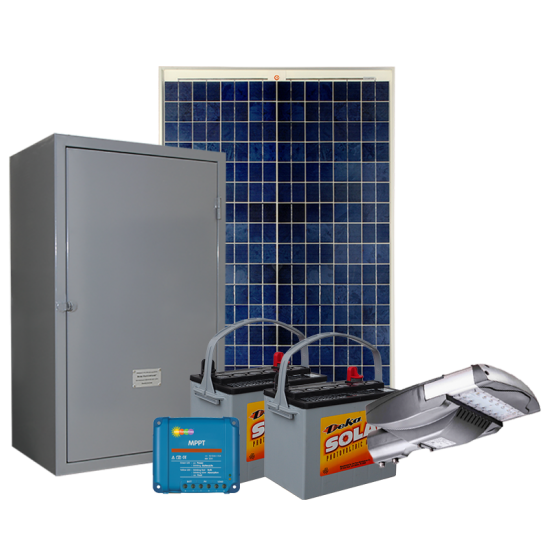

This powerful solar parking lot light system is supplied with a choice of a 35W, 65W, 100W, or 135W LED lamp capable of producing from 3,570 lumens up to as much as 14,280 lumens. This makes it probably the most powerful solar powered fixture of its kind on the market today. The light fixture is fitted with multiple, modular, high output Philips Luxeon® T LEDs. It can be supplied with a Type I, II, III, IV or V lighting distribution pattern. The low profile lampshade unit is attached to a support arm that fixes to a pole, which can be 20’, 26’ or 33’ tall depending on your preference. The system is supplied with a metal lockable battery enclosure, which is depending on battery choice can be installed on the pole or at the bottom of the pole. The battery enclosure houses two large 12V AGM rechargeable batteries and the MPPT Control Module. Solar Panel power and battery capacity depends on the lamp type selected, the installation location, and operation preferences. We offer a range of solar panel options from 100W up to 500W total. The solar panels are mounted on the top of the pole. We offer AGM or Gel type batteries with a range of capacity from 50Ah up to 245Ah. Two batteries are required per system, lighting systems are 24V. The system is controlled by a highly sophisticated programmable MPPT control module. The light will come on automatically at sunset and will run until dawn or will stay illuminated for a set amount of time. The control module light operation can be customized to suite a variety of applications. Common options include dusk to dawn (subject to model selected), or operations for a set number of hours after sunset (from 1 to 12 hours) then turn off (or dim*) with the option of switching back on for a chosen amount of hours before dawn. *Optional dimming is also available which allows the light output to be reduced by a fraction instead of completely turned off during the middle of the night. Standard color of light fixture is silver/grey. Custom paint colors and custom LED colors available by special order only. Standard color of light output is white. Please consult our engineers for specific component recommendations.

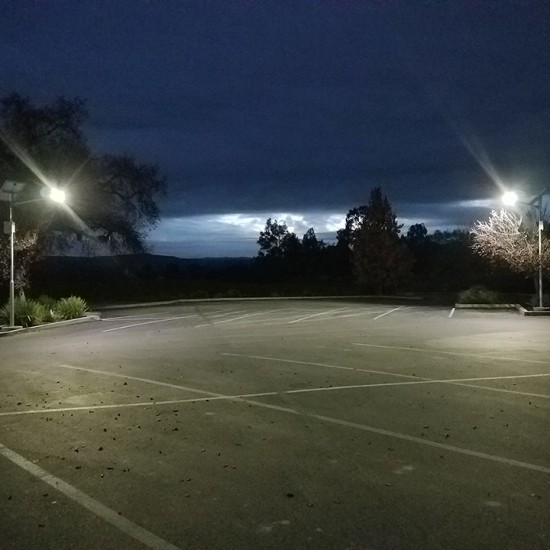

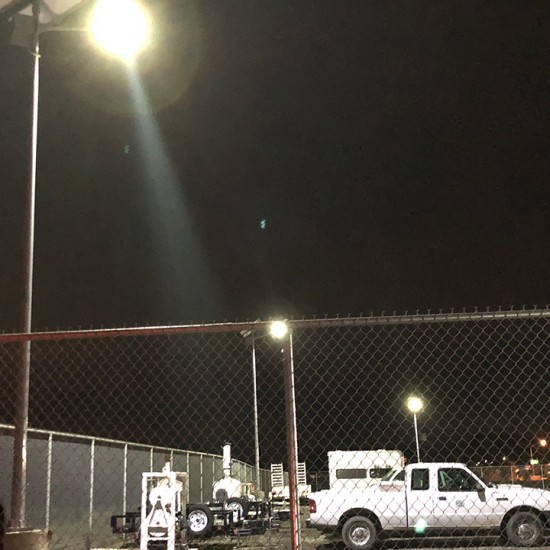

It is perfect for lighting up parking lots, parks, open areas, and such like.
We do not accept credit card payments for this product and for this value. Payment would be via check or bank wire transfer (T/T payment). All orders must be placed in writing (by mail, fax or email) and must include all billing and shipping details, the product number and quantity required. Once we receive your written order or purchase order you will be supplied with a pro-forma invoice which you can check to make sure all the information is correct. You will then be required to make payment, in full, against the pro-forma invoice. Your order will ship only when payment has been received and confirmed cleared. A bank wire transfer is the fastest and easiest way to make payment. Most street light shipments are shipped out from our Florida warehouse via UPS Freight with transit time of typically 1-6 business days (from date of dispatch), subject to the delivery address. Shipments outside the USA may take longer.
Quantity discounts are:
10-19 Units ... Less 5%
20-49 Units ... Less 10%
50-99 Units ... Less 15%
100-499 Units ... Less 20%
500-999 Units ... Less 25%
1000+ Units ... Less 30%
Operating voltage is 24 Volts. DC.
Maximum current 1.62A, 3.01A, 4.63A, 6.44A (subject to model selected).
Power consumption is 35, 65, 100 or 135 Watts (subject to model selected).
Operating temperature -40 deg. C ~ +80 deg. C (-40 deg. F ~ 175 deg. F).
Intelligent battery management software to prevent over-charging and over-discharging.
Includes a minimum of three to five days of autonomy (battery back-up).
Several successive cloudy or alternating overcast days typically will not affect illumination time.
The system (when supplied with 35W, 65W or 100W lamps) can operate typically from dusk to dawn or be single or dual timer controlled.
Supplied solar panel power is based on installation location and system requirements.
Illumination period can be designed to meet specific requirements.
Supplied with a single lampshade unit.
Low profile design with minimal wind resistance.
The lamp is configured with one or multiple LED modules.
Each LED module contains 14 LED's.
Each module has a vented design to increase thermal dissipation.
Can be supplied with a Type I, II, III, IV or V lighting distribution pattern.
The 35 Watt lamp unit is fitted with one module containing 14 high power Philips Luxeon® T LEDs.
The 65 Watt lamp unit is fitted with two modules containing 28 high power Philips Luxeon® T LEDs.
The 100 Watt lamp unit is fitted with three modules containing 42 high power Philips Luxeon® T LEDs.
The 135 Watt lamp unit is fitted with four modules containing 56 high power Philips Luxeon® T LEDs.
Choice of LED color temperature (yellow, warm white or white). White is standard.
Yellow is approx. 3800~4100k.
Warm white is approx. 5000~5650k.
White is approx. 5650~6300k.
Lumen tolerance +/- 5%.
The 35 Watt lamp unit provides approx. 3,570 Lumens (with white LEDs).
The 65 Watt lamp unit provides approx. 7,140 Lumens (with white LEDs).
The 100 Watt lamp unit provides approx. 10,710 Lumens (with white LEDs).
The 135 Watt lamp unit provides approx. 14,280 Lumens (with white LEDs).
Polarity protected circuitry.
LED life is typically up to 100,000 hours or equal to about 22 years.
No bulb changes unlike incandescent street lights.
Fixture attaches to the lamp support arm which in turn attaches to the pole.
Painted aluminum construction with TIR optics.
Silver/gray color anti-static powder coated finish.
Black and custom colors by special order only.
Stainless steel hardware.
IP66 weather rating.
Full cutoff light fixture as specified by IESNA or IES standards.
Dark sky compliant light fixture.
CRI is >75
LEDs are powered by Mean Well, with integrated PWM Dimming control and multi-driver redundancy.
The light fixture incorporates a high efficiency 18V-32V DC Mean Well LED driver.
The LED driver efficiency is over 90% and is I.P. 65 rated.
The LED driver has short circuit, over current, over voltage and over temperature protection.
The 35 Watt fixture is approx. 17" x 12.5" x 5.5" (43cm x 31cm x 13cm) L x W x D.
The 65 Watt fixture is approx. 20" x 12.5" x 5.5" (50cm x 31cm x 13cm) L x W x D.
The 100 Watt fixture is approx. 22.5" x 12.5" x 5.5" (58cm x 31cm x 13cm) L x W x D.
The 135 Watt fixture is approx. 25.5" x 12.5" x 5.5" (65cm x 31cm x 13cm) L x W x D.
The 35 Watt fixture weighs approx. 11.5 lbs (5.3 kgs).
The 65 Watt fixture weighs approx. 13.5 lbs (6.1 kgs).
The 100 Watt fixture weighs approx. 16 lbs (7.3 kgs).
The 135 Watt fixture weighs approx. 18 lbs (8.2 kgs).
Tenon internal diameter is approx. 2.4" (6cm).
Unique adjustable tenon allows horizontal adjustments from 0-15 degrees and vertical adjustments from 0-15 degrees.
The tenon can be set in a horizontal or vertical position to allow for different support arm angles and pole types.
Certifications, listings and approvals: UL, CE, FCC, RoHS, CB, TUV, CCC, CQC, cULus, ETL, DLC, cETLus, Designlights Consortium, LM79, LM80.
24v DC systems use two 12v sealed lead acid, AGM or GEL type rechargeable batteries.
Battery type is deep cycle, marine grade.
Batteries are made in the USA.
Battery capacity is selection is subject to lamp power and illumination duration.
The 55 Amp/Hour AGM battery dimensions are approx. 10" x 5.5" x 10" (24cm x 14cm x 25cm) LxWxD.
The 55 Amp/Hour AGM battery weighs approx. 39 lbs (17.5 kgs).
The 79 Amp/Hour AGM battery dimensions are approx. 11" x 7" x 10" (28cm x 17cm x 25cm) LxWxD.
The 79 Amp/Hour AGM battery weighs approx. 53 lbs (24 kgs).
The 92 Amp/Hour AGM battery dimensions are approx. 13" x 6.5" x 9.5" (33cm x 17cm x 24cm) LxWxD.
The 92 Amp/Hour AGM battery weighs approx. 63 lbs (28.5 kgs).
The 105 Amp/Hour AGM battery dimensions are approx. 13" x 7" x 10" (33cm x 17cm x 25cm) LxWxD.
The 105 Amp/Hour AGM battery weighs approx. 69 lbs (31 kgs).
The 198 Amp/Hour AGM battery dimensions are approx. 21" x 9" x 10" (53cm x 22cm x 25cm) LxWxD.
The 198 Amp/Hour AGM battery weighs approx. 129 lbs (65 kgs).
The 245 Amp/Hour AGM battery dimensions are approx. 21" x 11" x 10" (53cm x 28cm x 25cm) LxWxD.
The 245 Amp/Hour AGM battery weighs approx. 158 lbs (72 kgs).
Typical battery life is approximately 5 years subject to environmental factors and autonomy selection.
Please note, if you do not install or use this product for several months the battery may discharge naturally on its own.
By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge.
Periodic charging is always recommended when a product is not being used or when the solar panel is disconnected.
Higher capacity batteries may be required for more demanding applications and/or locations with lower insolation.
Galvanized steel arm accommodates the light fixture.
Attaches directly to the street light pole.
Choice of arm length available.
Can be attached in any direction and at a choice of height on the pole.
Silver/gray color finish.
Custom colors by special order only.
Galvanized steel pole with base unit to enable secure installation.
Pole has a square flat base (flat plate) with pre-drilled holes for installation.
The square base of the pole is approximately 12.5" x 12.5" (320mm x 320mm).
Anchor bolts and two templates are included.
The 4 pre-drilled holes on each template are approx. 1" (25.4 mm) diameter.
Pole height available in a choices of either 20' or 26' (6m or 8m).
33' (10m) and other sizes available by special order.
The top of the pole has an outside diameter of approximately 3" (76mm) and tapers outwards towards the base.
Silver/gray color finish.
Custom colors by special order only.
The pole diameter will vary depending upon the height.
A 20' pole has a diameter of approx. 6" at its base decreasing down to approx. 3" at the top.
Typically the pole requires a concrete foundation of approximately 1 cubic yard (3' x 3' x 3').
The location, wind factor and ground condition will affect the size of the foundation required.
Galvanized steel lockable battery box will accommodate the rechargeable batteries. (Padlock not included.)
The battery enclosure can be mounted on to the pole or located at the base of the pole depending installation preference and battery capacity.
For battery selections larger than 92Ah the battery enclosure must be located at the base of the pole.
The battery box has pre-drilled holes to enable secure installation to a concrete pad.
For pole mounting, the battery enclosure includes mounting plates with slots for U-bolts or Stainless Steel Banding. (U-bolts and Stainless Steel Banding is not included.)
Silver/gray color finish.
Custom colors by special order.
Pole mount enclosure will fit two 12 volt 55 Amp-Hour, 12 volt 79 Amp-Hour or 12 volt 92 Amp-Hour batteries.
Ground mount enclosure will fit two 12 volt 105 Amp-Hour, 12 volt 198 Amp-Hour or 12 volt 245 Amp-Hour batteries.
The solar panel size and power required depends greatly on the installation location and customer’s requirements, please consult our engineers for specific solar power requirements.
Range of solar panel power avalible between 100W and 500W.
Solar panels are typically supplied in a dual format (2 x 90w = 180w, 2 x 140w = 280w etc.).
Highly efficient monocrystalline or polycrystalline solar panel with aluminum frame, anti-aging, and encapsulated membrane.
Anti-reflective and anti-soiling surface reduces power losses from dirt and dust.
Certified to withstand high wind loads (340PSI) and snow loads (780PSI); and resistance to high salt and ammonia.
Typical solar panel life is approximately 20-25 years subject to environmental factors.
The dimensions of the solar panel can vary and is subject to the wattage and format supplied.
The solar panel(s) are supplied with steel support frame and T-bar pole mounting system with tenon that allows direct attachment to the top of the pole.
The mounting systems allows the solar panel(s) to be tilted to an appropriate angle determined by the geographic location of the installation site.
The solar panel(s) can be rotated (ideally to a southerly unobstructed view of the sky).
A more powerful solar panel may be required for more demanding applications and/or locations with lower insolation, please consult our engineers for specific solar power requirements.
Supplied standard with the most advanced and sophisticated MPPT charge controller technology. The MPPT charge controller automatically controls the solar panel power, battery charging, and lighting function and operation.
Ultra fast Maximum Power Point Tracking (MPPT).
The MPPT charge controller is typically 30% more efficient than standard PWM controllers and 10% more efficient to most other MPPT controllers.
Additional efficiency for cloudy weather and during times of reduced sun radiation.
This controller features the very latest smart technology with intelligent battery management software is used to protect the battery from being excessively discharged.
The controller is sized to the system specifications with 10A and 15A versions available (subject to solar panel power and battery capacity).
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
Lighting control features include illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Dimming option (where applicable) allows the lighting to dim at any time during the illumination time.
The dimming option or any other illumination mode can be used in conjunction with motion activation (where applicable).
Dimming may be at any percentage from 1-99%.
Supports real time data monitoring and 30 day memory (iPhone, Andriod, Mac or PC) with optional interface and/or Bluetooth dongle.
Rated charge current 10A/15A.
Maximum PV power (24V dc) is 270W at 10A and 400W at 15A.
Maximum PV open circuit is 75-100V dc.
Peak efficiency is 98%.
Multi stage adaptive charge algorithm.
Automatic temperature compensation.
Low voltage load disconnect at 11.1V dc to 11.8V dc (12v dc system) or 22.2V dc to 23.6V dc (24V dc system) or battery life algorithm.
Low voltage load reconnect at 13.1V dc to 14V dc (12V dc system) or 26.2V dc to 28V dc (24V dc system).
Protection feature includes battery reverse polarity (fuse), output short circuit and over temperature.
Operating temperature is -22 deg. F (-30 deg. C) to 140 deg. F (+60 deg. C).
Humidity up to 95%, non condensing.
Power terminals are AWG 10 (6mm2).
Protection rating IP22 (connection terminal area).
Weight is 500g (1.1 Lbs).
Dimensions are approx. 4” x 4” x1.5” (10cm x 10cm x 4cm).
Please note: Upon installation and power-up the controller goes into a 7 day evaluation mode where smart monitoring and configurations commence. Additional evaluation with self-managing adjustments may continue for up to 7 more days. This is all part of the smart feature that enables this intelligent controller to understand its use, the application, the surrounding environment and the current conditions. During this time some of its programmed features may differ temporarily. This is a perfectly normal process and must be accepted during that time. During this time the controller will adjust to the current condition and charge status of the batteries. It is therefore recommended that all batteries are 100% fully charged before connection using an appropriate battery charger. This may significantly reduce the evaluation mode time of 7+7 days to much less. The solar panel(s) should be connected to the MPPT charge controller first, followed by the fully charged batteries.
Hardware & Connections
Most necessary hardware is included.
Cables for wiring between the battery box, solar panel, and light fixture is included.
Most wiring is pre-installed.
Most connections are plug & play or use quick connection type connectors.
Installation guide and instruction manual is included.
Upon curbside delivery, installation is entirely at the risk of the customer and/or the customer's appointed installer.
Subject to warranty registration, a limited 20 year solar panel warranty applies and a limited 5 year warranty on all other components (excluding batteries). Battery warranty (if applicable) is with the battery manufacturer.* Warranty registration is required (after purchase), otherwise a standard 30 day limited warranty will apply. After making your purchase, go to www.solarilluminations.com/registration to register your warranty.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
The product specifications above should be used as a general guide. We can offer modifications and changes to the specifications of this product if necessary. This may be required to meet your specific needs and/or due to the geographic location of the installation site. In locations where insolation levels are poor or lower than normal, a higher wattage solar panel and larger capacity batteries may be required. We offer product customization. MPPT, dual timer and dimming charge controllers are all available as optional extras. One or more motion sensors can also be added as an optional extra. Other options included UL listed or ETL certified components and the provision of Buy American Act (BAA & ARRA) compliance, if required. Photometric data, 3D renderings and planning of your lighting project is available. Please contact our sales department for more information before making your purchase.
* View our Terms, Conditions and Polices (including our Returns Policy) for further information.
|Solar Lights Data|
|Lumen Output||From 3,570 to 14,280 Lumens|
|Equivalent Incandescent Wattage||Up to 1000 watts|
|Approximate Illumination Time||Typically dusk to dawn or single/dual timed modes.|
|Approximate Illumination Area||Up to 150' x 100'|
|Solar Panel Wattage||180 Watts to 420 Watts|
|Pole Height||20', 26', or 33' (6, 8, or 10 meters)|
