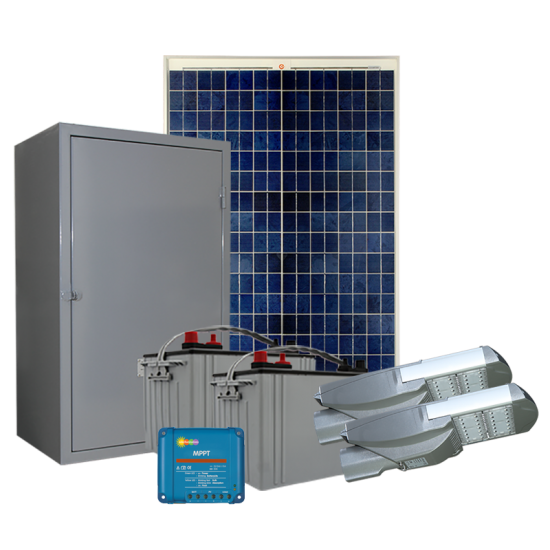

This solar parking lot light system is available with a pair of either 35 Watt (6,475 Lumen) or 65 Watt (12,025 Lumen) LED luminaires. Sold as a complete system. Choose any LED power from 35W to 65W. It's a very powerful solution for illuminating parking lots of all sizes. Sold as a complete commercial grade system, without a pole for retrofit applications. Prices from $3,899.99.
This powerful, professional solar parking lot light system is supplied with a choice of either a 35W or 65W LED lamp capable of producing 6,475 lumens or 12,025 lumens per lamp, respectively. This makes it one of the most powerful, commercial grade solar double lamp system of its kind on the market today. Each LED luminaire is fitted with multiple, modular, high output Philips Luxeon® Rebel ES LEDs. It can be supplied with a Type I, II, III, or V lighting distribution pattern. You can request any LED power from 35W to 65W or choose any lumen output from 6,475lm to 12,025lm. This is because the system is fully adjustable and the light output can be adjusted accordingly. The system is supplied with a metal lockable battery box, which is installed at the bottom of the pole. The battery box houses two large 12V AGM rechargeable batteries and the MPPT charge control module. Solar panel wattage depends on the lamp type selected but ranges from 280W up to 420W total. The solar panels are mounted on the top of the pole. The system is controlled by an MPPT programmable control module. The control module can also be set to run dusk to dawn (subject to model selected), or run for a set number of hours after sunset (from 1 to 12 hours) and has the option of switching on for a chosen amount of hours before dawn. The illumination time may vary depending upon your geographic location. In some locations using a pair of 65w lamps may mean that the system will need to be set for single or dual timed mode (not dusk to dawn). Standard color of light fitting is silver/grey. Custom paint colors and custom LED colors available by special order only. Standard color of light output is white.
STARTING PRICE $3,899.99. THE FINAL COST OF A SYSTEM IS DETERMINED BY SEVERAL FACTORS INCLUDING THE LED POWER REQUIRED, THE GEOGRAPHIC LOCATION OF THE INSTALLATION SITE, AND THE NIGHTLY ILLUMINATION TIME REQUIRED, ETC.
Popular Uses

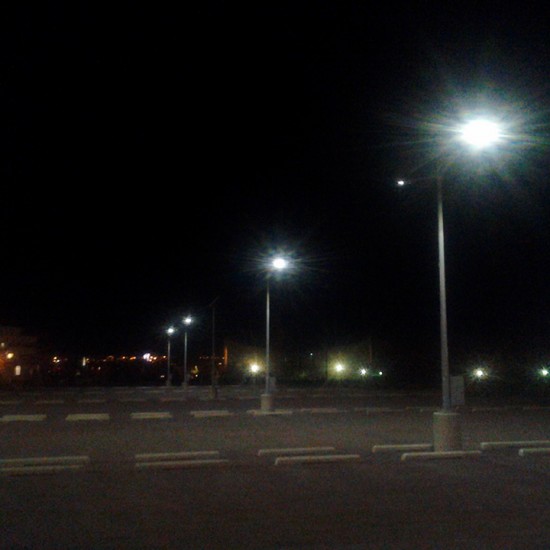

It is perfect for lighting up parking lots, general open areas and such like. Ideal for applications where a suitable pole is already in place or where new poles are being sourced elsewhere.
Technical Specifications
Performance
Operating voltage is 24 Volts. DC.
Maximum current 1.62A, 3.01A, 4.63A, 6.44A (subject to model selected).
Power consumption is 35, 65, 100 or 135 Watts (subject to model selected).
Operating temperature -40 deg. C ~ +55 deg. C (-40 deg. F ~ 131 deg. F).
Special control system to prevent over-charging and over-discharging.
Several successive cloudy or alternating overcast days typically will not affect illumination time.
The system (when supplied with a pair of 35W lamps) can operate typically from dusk to dawn or be single or dual timer controlled.
The system (when supplied with a pair of 65W lamps) may be able to operate dusk to dawn (in ideal conditions) or be set to a single timed mode or a dual timed mode (for less favorable geographic locations).
Light Fixture
Supplied with two LED light fixtures.
Low profile design with minimal wind resistance.
Designed for horizontal and vertical applications.
Features a fully adjustable tenon which can rotate 90 degrees at 15 degree intervals.
Each light fixture is fitted with one or multiple LED modules.
Each LED module contains 14 LED's.
Each module has gaps to increase thermal dissipation speed.
Can be supplied with a Type I, II, III or V lighting distribution pattern.
Choice of LED color temperature (warm white, daylight white, or cool white). Daylight white is standard.
Warm white is approx. 3,800~4,100k.
Daylight white is approx. 5,000~5,650k.
Cool white is approx. 5,650~6,300k.
Other LED color temperatures are available upon request, or by special order, from 2700k to 6500k and also turtle friendly yellow.
Choice of LED color temperature (yellow, warm white or white). White is standard.
Lumen tolerance +/- 5%.
Each 35 Watt lamp unit provides 6,475 Lumens (with white LEDs).
Each 65 Watt lamp unit provides 12,025 Lumens (with white LEDs).
Polarity protected circuitry.
LED life is typically up to 100,000 hours or equal to about 22 years.
No bulb changes unlike incandescent street lights.
Fixture attaches to the lamp support arm which in turn attaches to the pole.
Anodized aluminum construction with toughened glass.
Silver/gray color anti-static powder coated finish.
Black and custom colors by special order only.
Stainless steel hardware.
IP66 weather rating.
LED beam angle is 140 deg. (horizontal) x 65 deg. (vertical).
CRI is >75
The light fixture incorporates a high efficiency 24v-24v dc LED driver.
The LED driver efficiency is over 90% and is I.P. 65 rated.
The LED driver has short circuit, over current, over voltage and over temperature protection.
Certifications CE, FCC, RoHS, CB, TUV, CCC, CQC. UL listed, cULus, ETL, DLC, cETLus, Designlights Consortium, LM79, LM80.
The 35 Watt fixture is approx. 17" x 12.5" x 5.5" (43cm x 31cm x 13cm) L x W x D.
The 65 Watt fixture is approx. 20" x 12.5" x 5.5" (50cm x 31cm x 13cm) L x W x D.
The 35 Watt fixture weighs approx. 11.5 lbs (5.3 kgs).
The 65 Watt fixture weighs approx. 13.5 lbs (6.1 kgs).
Tenon internal diameter is approx. 2.4" (6cm).
Unique adjustable tenon allows horizontal adjustments from 0-15 degrees and vertical adjustments from 0-15 degrees.
The tenon can be set in a horizontal or vertical position to allow for different support arm angles and pole types.
Certifications, listings and approvals: UL, CE, FCC, RoHS, CB, TUV, CCC, CQC, cULus, ETL, DLC, cETLus, Designlights Consortium, LM79, LM80.
Battery
24v DC systems use two 12v sealed lead acid, AGM or GEL type rechargeable batteries.
Battery type is deep cycle, marine grade.
Batteries are made in the USA.
With a pair of 35 Watt light fixtures the battery capacity is 92 Amp/Hour (each battery).
With a pair of 65 Watt light fixtures the battery capacity is 198 Amp/Hour (each battery).
The 92 Amp/Hour battery dimensions are approx. 13" x 6.5" x 9.5" (33cm x 7cm x 24cm) LxWxD.
The 92 Amp/Hour battery weighs approx. 63 lbs (28.5 kgs).
The 198 Amp/Hour battery dimensions are approx. 21" x 9" x 10" (53cm x 22cm x 25cm) LxWxD.
The 198 Amp/Hour battery weighs approx. 129 lbs (65 kgs).
Typical battery life is approximately 5 years subject to environmental factors.
Please note, if you do not install or use this product for several months the battery may discharge naturally on its own.
By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge.
Periodic charging is always recommended when a product is not being used or when the solar panel is disconnected.
Higher capacity batteries may be required for more demanding applications and/or locations with lower insolation.
Arm
A pair of galvanized steel arms are supplied to accommodate the light fixture.
Attaches directly to the street light pole.
A choice of support arm size is available.
Can be attached in any direction and at a choice of height on the pole.
Silver/gray color finish.
Custom colors by special order only.
Battery Box
Galvanized steel lockable battery box will accommodate the rechargeable batteries.
The battery box is to be located at the base of the pole.
Padlock not included.
The battery box has pre-drilled holes to enable secure installation to a concrete pad.
Silver/gray color finish.
Custom colors by special order.
Battery box will fit two 12 volt 92 Amp/Hour, 12 volt 198 Amp/Hour or 12 volt 245 Amp/Hour batteries.
Control Module
This system includes a MPPT charge controller (programmable control module) which regulates and manages the solar panel power, battery power and illumination timer.
The compact control module has LED indicators to display status, input connections for solar panel and batteries and output connections for the lamp.
Push button programming.
Accepts and controls GEL, AGM and sealed lead acid type (VRLA) batteries.
Low voltage disconnect regulated by state of charge or voltage.
Detects daytime and night time conditions via the solar panel.
Automatic adaption to ambient temperature conditions.
Safety features for short circuit and reverse polarity protection of battery and lamp inputs.
Automatic voltage recognition (12v or 24v).
Float voltage for 12v system is 13.7v dc and for 24v system is 27.4v dc.
Low voltage disconnect for 12v system is 11.4 ~ 11.9v dc or for 24v system is 22.8 ~ 23.8v dc.
Reconnect voltage for 12v system is 12.8v dc or for 24v system is 25.6v dc.
Dimensions approx. 11 cm x 10 cm x 4 cm (4" x 4" x 1.5") LxWxD.
Ambient temperature range -40 deg C ~ +50 deg C (-40 deg F ~ +122 deg F).
Protection rating I.P.22
Single or dual timer mode options.
User programmable illumination time of up to 1 to 12 hours or dusk-to-dawn setting (where conditions permit).
User or installer can set the control module to run from dusk and then shut off after a certain amount of hours. For example from dusk for 4 hours then switch off, or run from dusk for 6 hours then switch off.
The module can also be programmed to switch on at dusk for a chosen amount of hours then switch off, then switch back on a chosen number of hours before dawn.
Instructions are supplied should the user or installer need to program or re-program the module*.
The illumination time may be determined by, and subject to, the specifications of the system and the insolation levels at the installation site.
Solar Panel
Highly efficient polycrystalline solar panel.
Aluminum frame with anti-aging and encapsulated.
Low reflecting tempered glass.
With a pair of 35 Watt light fixtures selected, the wattage of solar panel is 280 Watts.
With a pair of 65 Watt light fixtures selected, the wattage of solar panel is 420 Watts.
Solar panels are typically supplied in a dual format (2 x 140w = 280w, 2 x 210w = 420w etc.).
Depending upon your geographic location higher wattage solar panels may be required at extra cost.
Typical solar panel life is approximately 20-25 years subject to environmental factors.
The geographic location of the street light may affect the size/wattage of the solar panel required.
The dimensions of the solar panel can vary and is subject to the wattage and format supplied.
The solar panel(s) are supplied with steel support frame and T bar mounting system with tenon that allows direct attachment to the top of the pole.
The mounting systems allows the solar panel(s) to be tilted to an appropriate angle determined by the geographic location of the installation site.
The solar panel(s) can be rotated (ideally to a southerly unobstructed view of the sky).
A higher wattage solar panel may be required for more demanding applications and/or locations with lower insolation.
Hardware & Connections
All necessary hardware is included.
Interconnecting Cables Connection wiring between the battery box, solar panel and lamp unit is included.
Most wiring is pre-installed.
Most connections are plug & play.
Installation
Installation guide and instruction manual is included.
Remarks
We stand behind our lighting systems with one of the best and most comprehensive warranties in the industry. With valid warranty registration, this system is offered with a 10-year limited warranty and the solar panel with a 20-year limited warranty, in accordance with our Terms, Conditions, and Policies. Free, unlimited, lifetime technical support is offered with the warranty.
Please Note:
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
The product specifications above should be used as a general guide. We can offer modifications and changes to the specifications of this product if necessary. This may be required to meet your specific needs and/or due to the geographic location of the installation site. In locations where insolation levels are poor or lower than normal, a higher wattage solar panel and larger capacity batteries may be required. We offer product customization. MPPT, dual timer and dimming charge controllers are all available as optional extras. One or more motion sensors can also be added as an optional extra. Other options included UL listed or ETL certified components and the provision of Buy American Act (BAA & ARRA) compliance, if required. Photometric data, 3D renderings and planning of your lighting project is available. Please contact our sales department for more information before making your purchase.
