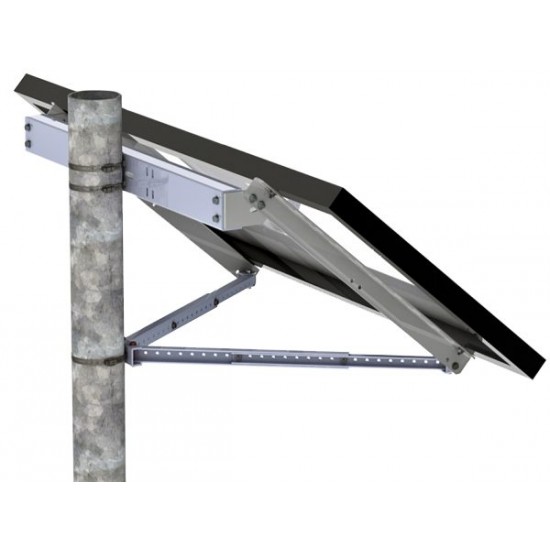

This heavy duty, side-of-pole mount kit enables one or more solar panela to be pole mounted to the side of a pole or onto a vertical surface or structure such as a wall or side of a building. Pricing from $399.99.

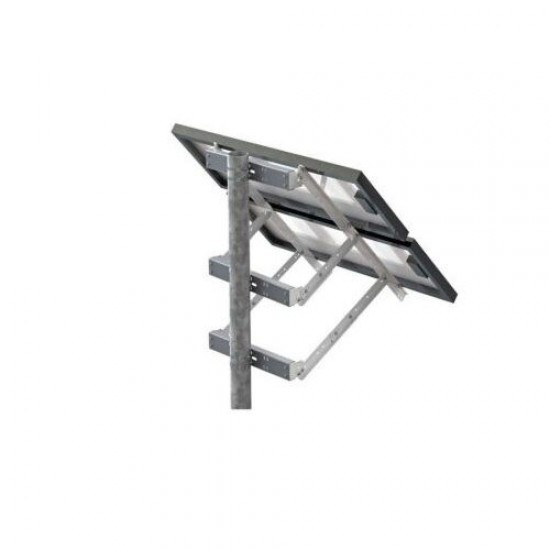

This solar panel side-of-pole mount kit consists of aluminum sections that assemble together enabling you to mount one or two solar panels onto a pole or pipe (typically between 2.25" and 4.5" OD). It can also be attached to a vertical surface such as the side of a building, on a wall or structure, etc. Choice of six different sizes. Select a size equal to or slightly larger than the width (narrowest side) of your solar panel if mounting portrait or the length (widest side) if mounting landscape.
Technical Specifications
Performance
Suitable for one or two solar panels.
Will attach to 4" schedule 40 pipe (4.5" OD).
Available with a choice of rail lengths.
Select from 27.5", 30", 45", 55" , 70" or 90".
Typically the 27.5" version can accept one solar panel, other versions can accept up to two solar panels (subject to dimensions).
Manufactured using heavy-duty corrosion-resistant aluminum.
Can be adapted for larger pole sizes, Rohn 25-series towers, or flat surfaces (with additional optional hardware).
For landscape orientation, you can attach one or two solar panels, with a total width less than rail length.
For portrait orientation, you can attach one solar panel if rail length is greater than distance from one end of the long-side of module frame to a mounting hole on the other end of that frame.
Most versions will allow a tilt angle of approximately 30~60 degrees.
A high wind version is available by special order.
Remarks
One year warranty*.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
Minor errors & omissions must be accepted. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
*View our Terms, Conditions and Polices (including our Returns Policy) for further information.
