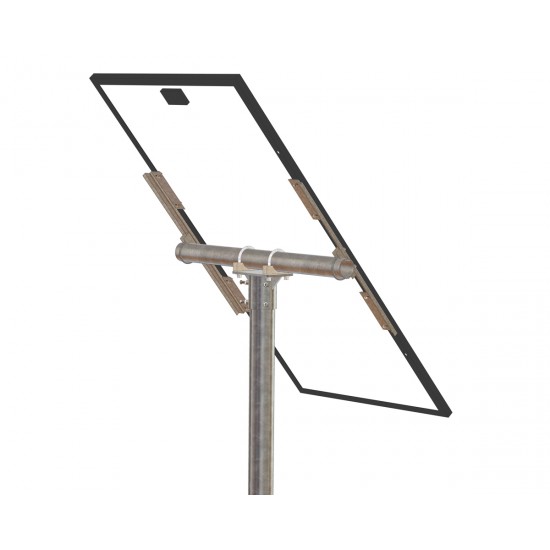

This heavy duty kit enables a large single solar panel to be pole mounted to the top of a pole. Pricing from $599.99.
This solar panel pole mount kit consists of a galvanized coupling and a 3" schedule 40/80 (3.5" OD) steel cross arm brackets that enables you to mount a solar panel array onto a pole or pipe (typically 4" OD schedule 40 pipe). It can attached to other diameters using an optional tenon adaptor which is available by special order.
Technical Specifications
Performance
Suitable to attach to the top of a round pole or post.
Ideal for attaching to a vertical 4" schedule 40 (4.5" OD) steel pipe.
Select the size required for the length or width of your solar panel (38"~72" version or 72"~96").
Your solar panel can be mounted in portrait or landscape orientation.
Mount one solar panel with a total area of up to 25 square feet and a frame thickness between 1.18" and 2.0".
Suitable for wind speed up to 150 MPH and snow load up to 100 PSF.
Maximum post height of 6' above grade.
Tilt angle adjustable from 10° to 60°, per engineering (0° to 85° possible).
Some wind speeds and snow loads require a concrete filled vertical post.
The 3" schedule 40/80 (3.5" OD) steel horizontal beam must be a minimum of 4" longer than the width of the solar module.
Vertical pole/pipe is not included.
Remarks
One year warranty*.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
Minor errors & omissions must be accepted. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
*View our Terms, Conditions and Polices (including our Returns Policy) for further information.
