If you have a specific requirement for an integrated, all-in-one type of parking lot light that's made in the USA, our SL26 should be an ideal fit. It's difficult or near impossible to find fixtures like this that are genuinely made in the USA and meet BABA criteria. Ideal for street lighting, parking lot lighting, or general area lighting applications.

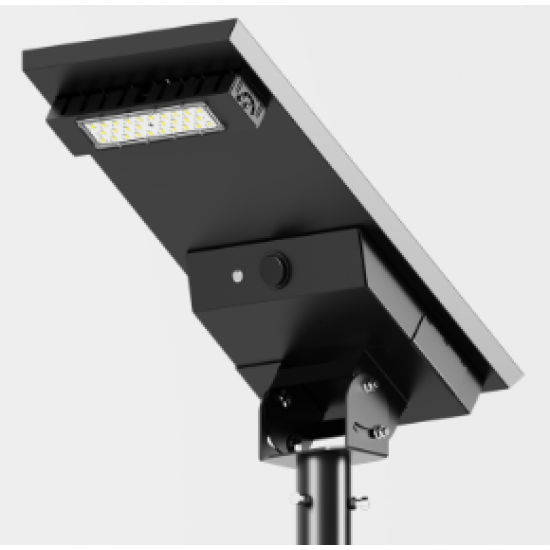

This all-in-one, integrated solar powered light is fitted with a module of high output LED. It has 23W of LED power which provides 5,290 lumens with Type III distribution. The fixture can rotate and lock into place on the top of a suitable new or existing pole with a 3" OD. There is some flexibility with the programming of the different lighting modes that are available including the us of its built-in microwave motion sensor. These parameters may be determined by the geographic location of the installation site and/or the lighting modes and the total illumination time required. This integrated fixture has a 50W solar panel and a pre-installed, high capacity lithium battery pack. All programs and options are to be decided prior to ordering because the system is programmed by Solar Illuminations in advance of shipping the fixture. One of the main attributes of this fixture is that it is made in the USA and therefore meets BABA (Build America, Buy America Act) requirements. It's almost impossible to find any other parking lot light fixture like this that is genuinely made in the USA. Color of fixture is black. Color of light output is white.
Typical Applications
Perfect for parking lots, general open areas, playgrounds, small streets, parks, mail box kiosks, walking trails, dog parks, HOA's etc. It could also be used for residential applications such as yards, driveways, etc.
Technical Specifications
Performance
Made in the USA.
Meets BABA requirements (Build America, Buy America Act).
All-in-one, integrated design.
Weather rating is I.P. 65.
Ideal operating temperature charging range is 0 deg C. to +60 deg C. (-32 deg F. to +140 deg F.).
Ideal operating temperature discharging range is -20 deg C. to +60 deg C. (-4 deg F. to +140 deg F.).
Ideal storage temperature range is 0 deg C. to +45 deg C. (-32 deg F. to +113 deg F.).
At the time of ordering, this system will be programmed to operate with a choice of one or more modes.
A typical operating mode would be automatic on at dusk at 100% for one hours, then 80% output for 2~3 hours, then 60% output for 4 hours, then 25% output for 5 hours or until dawn.
The option to have the lighting dim, by any percentage, and for any amount of time, may also be available.
Solar Illuminations will program the system to perform as per customer requirements, before the system is shipped.
The programmable options may be determined by the geographic location of the installation site and other environmental factors.
An integrated microwave motion sensor allow the lighting to revert to 100% output upon motion detection (subject to programmed operating mode).
Light Fixture
Unique, all in one style fixture.
23W LED power.
Highly efficient 230 lumens per watt (lm/w).
5,290 lumens.
The LED color temperature is 5,500k.
Other LED color temperatures are available by special order (3,000k to 6,000k).
Battery
Integral high capacity lithium battery pack is included.
LiFePO4 12.8V DC, 18AH, 230.4WH.
The battery is replaceable when required.
The system has built-in MPPT charge control regulation with over-charge and discharge protection.
Solar Panel
The fixture incorporates a monocrystalline 18V DC, 50W solar panel.
An automatic PTC heated solar panel option is available by special order (for high elevation/heavy snowfall locations).
An optional bird spike set is available to help prevent the solar panel surface from become dirty from bird activity.
Installation
An integrated tenon and mounting hardware is included.
Easy installation onto almost any round pole or round post.
The tenon supplied can be attached to a round pole of 3" diameter.
It can attach to other diameter poles using a tenon/adapter (available by special order).
Installation
An integrated tenon and mounting hardware is included.
Easy installation onto almost any round pole or round post.
The tenon supplied can be attached to a round pole of 3" diameter.
It can attach to other diameter poles using a tenon/adapter (available by special order).
Remarks
With valid warranty registration, this fixture is offered with a 24 month warranty (excluding battery), in accordance with our Terms, Conditions, and Policies.
Please Note:
This product is a special order and is non-returnable except in
the event of a fault (during its warranty period) when the product, once
returned will be repaired or replaced. The solar panel must be
installed in a location where it can receive full direct sunshine (when
available) and usually set facing South at an appropriate angle (where
adjustment options allow). The solar panel must not be installed in a
shaded or part shaded location and never indoors. The standard
specifications of the system (particularly the solar panel Wattage and
battery capacity) may need to be adjusted. These components are
determined by your geographic location, power consumption (LED Wattage)
and the total amount of hours of illumination time required. Such
changes to the standard specifications may increase or decrease the cost
shown. Please contact us for more information or assistance. The
illumination time is estimated and subject to various factors including
(but not limited to) geographic location, seasons, temperature, weather
conditions & location of product etc. The illumination time of most
solar lights can reduce during winter months when the weather is poor
and the days are shorter. During this time insolation hours decrease
accordingly. Shorter illumination time due to one or more of the above
factors does not define the product as being ‘defective’ or ‘not as
described’. All solar lights must be used in a completely dark location
at night time otherwise they may not illuminate. Nearby strong lighting
sources or ambient lighting may affect the operation of a solar light.
This does not define the product as being 'defective' or 'not as
described'. Please note, if you do not install or use this product for
several months the battery may discharge naturally on its own. By
allowing a battery to deep discharge it may cause irreversible damage as
the battery may then lose the ability to recharge or hold a full
charge. Although unlikely, we reserve the right to supply this product
with any minor alterations or minor changes to the specifications (shown
above by text description or by photographs) due to different supplies
or product batches received, incorporating such product changes made by
the manufacturer, without further notice. Descriptions, specifications
and photographs are updated regularly but may not be current when minor
changes to a product have only recently been made.
