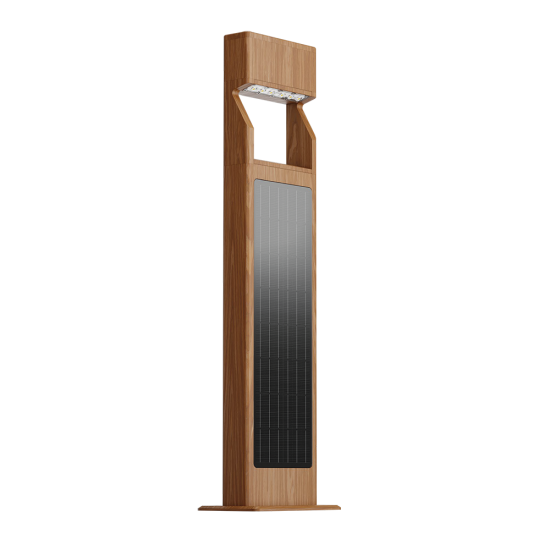

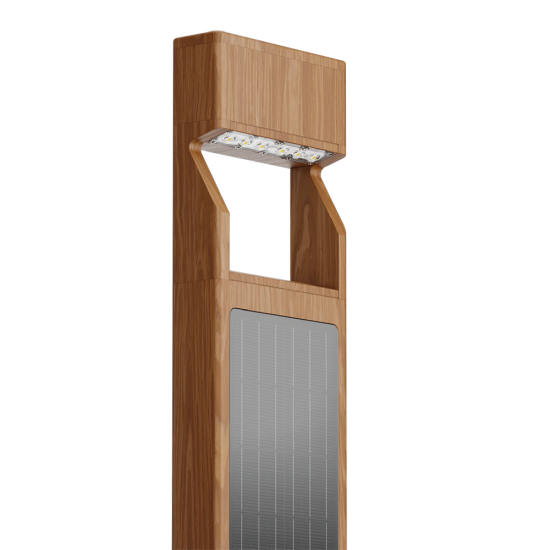

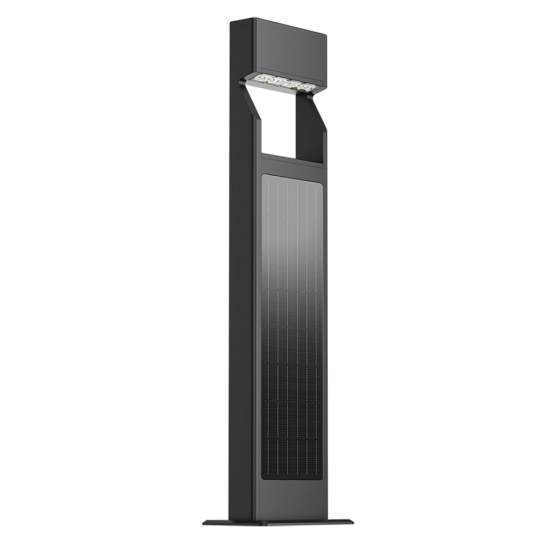

Our BC05 solar powered bollard light is a unique, high quality, professional, commercial grade fixture. This vandal resistant (IK8 rated) bollard
light fixture features a vertical, integrated solar panel, a choice OF LED power options, and a choice of colored finishes.
This modern, solar powered bollard light fixture is made of cast aluminum. It's a vandal
resistant and weatherproof (IP68 rated) design with features unlike any other solar
bollard on the market at this time. It's fitted with multiple, powerful, 5050 SMD/LEDs and is available with a choice of two LED power versions. 8W (1,380 lumens) or 12W (2,040 lumens). Choice of LED color temperature (CCT) 2,200k, 3,000k, 4,000k, or 6,000k. The large solar bollard light stands approximately 39" (100cm) tall and the small version at approximately 31.5" (80cm) tall. Both have a sleek, low-profile body of just 9" (23cm) x 3" (7.5cm). Other heights available by special order. This fixture also features a pre-installed, large capacity, LiFePO4 lithium battery and a pair of 25W vertical solar panels on the small version and a pair of 32W vertical solar panels on the large version. This solar bollard also features an integral
MPPT charge control system which enables the light to turn on
automatically at dusk and off at dawn. Available in a choice of colors and finishes including black, gray, white, silver and also woodgrain effects such as oak, walnut, or pine.
Sold as a single unit.
PLEASE NOTE - THIS IS A SPECIAL ORDER, MADE TO ORDER FIXTURE.
Applications
This BC05 solar powered bollard light is ideal for walkways, sidewalks, and trails but it's also perfect
for entrances, parking lots, mailbox areas, HOA's and subdivisions, walkways, and driveways etc.
May be used in either a residential or commercial environment.
Technical Specifications
Performance
Anti-theft/vandal resistant design.
Upward light waste ratio (U.W.L.R.) is <1%.
Automatically illuminates at dusk.
Weather resistance rated to IP 68.
Vandal resistant IK8 rating.
All die-cast aluminum construction, no parts to rust.

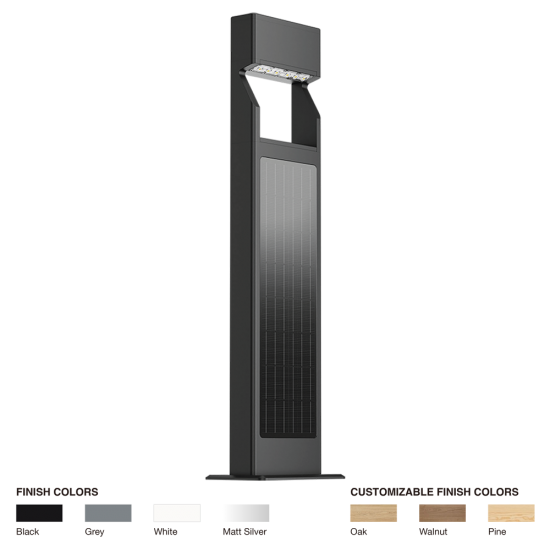

Choice of powder coated colored and decorative finishes available.
Black (RAL 9005), gray (RAL 7046), white (RAL 9003), or flat (matt) silver (RAL 9006).
Woodgrain (Woodland) wood effect finishes, oak, walnut, or pine.
Other colors available by special order.
Illumination pattern is approximately 180 degrees with light projected outwards (forwards) and downwards towards the ground.
Light distribution is up to 20' (6M).
Small version is approx. 31.5" (80cm) tall.
Large version is approx. 39" (100cm) tall.
Other heights by special order.
Body section is approximately 9" (23 cm) x 3" (7.5 cm).
Light Fixture
Fitted with 12 super bright, high output, SMD5050 LEDs.
Choice of 8W or 12W LED power.
1,380 or 2,040 lumens.
CRI >76.
Choice of LED CCT (color temperature).
2,200k, 3,000k, 4,000k, or 6,000k.
Full cut-off LED optics.
Battery
The small version is supplied with a pre-installed LifeP04 3.2V DC 90AH lithium battery.
The large version is supplied with a pre-installed LifeP04 3.2V DC 120AH lithium battery.
The battery has a typical lifespan of up to 10 years (4,000 cycles).
The battery is replaceable, when required.
Solar Panel
The small version is fitted with a pair of vertical, integrated, monocrystalline 25W solar panels.
The large version is fitted with a pair of vertical, integrated, monocrystalline 32W solar panels.
Solar cell efficiency > 22.5%.
Typical lifespan > 20 years.
The solar panel is neatly set into each of the two sides of the main body of the fixture.
Installation
Easily installed onto almost any horizontal, solid surface such as concrete, asphalt, wood, paver etc.
Installation time is usually less than 5 minutes per bollard.
The internal base section detaches from the main body of the board with special discrete security screws.
The base section has pre-drilled holes for screw-down or bolt-down installation.
The
main body of the bollard attaches over the top of the base with a
threaded and discrete security bolted connection so that it is complete
hidden and inaccessible.
The upper (lampshade) section also has a threaded and discrete security bolted connection to the main body section.
Spacing
is at the owner/installer's discretion. Ideally, anywhere from 10' (3M)
to 33' (10M) apart (subject to any specific requirements).
A direct burial (root mount) version is available by special order.
Remarks
With valid warranty registration, this fixture is offered with a 24 month warranty (excluding battery), in accordance with our Terms, Conditions, and Policies.
Please Note:
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced. The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
