The SL09 solar LED area light is available with one or two 10w, 30w, or 30w LED lamps. Sold as a complete system. Unique and exclusive to Solar Illuminations. This system includes a powerful solar panel, LED flood light, battery box, batteries, 10', 15', or 20' pole and all necessary hardware. Can be set for dusk to dawn or to switch off after a pre-set number of hours. Choice of one or two LED lamp system. Price from $1,199.99.

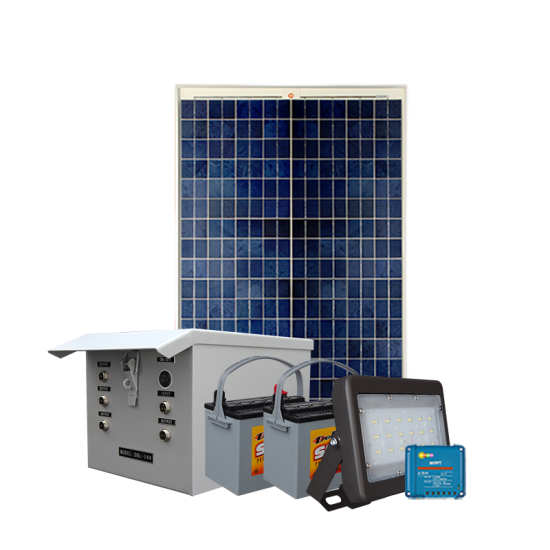

The SL09 is great for lighting up large areas. The system is mostly plug and play for easy installation. The solar panel flood light fixture is fitted with high efficient LEDs producing 133 lumens per watt. This system is supplied complete with a metal lockable battery enclosure, two 12 volt AGM rechargeable batteries, solar panel, powder coated pole, anchor kit, and pole mount hardware for all equipment. The solar panel flood light fixture can be positioned at any point on the pole and has angle adjustment to enable the desired lighting pattern. Fully automatic activation with options for dusk to dawn, or timed illumination. This system can be supplied with a manual on/off switch instead of the automatic on at dusk ability. It can also be supplied with a remote control on/off switch instead of the automatic on at dusk facility. Both of these features are optional extras and are available upon request.
Popular Uses
This solar panel flood light is ideal for lighting up walkway, driveways, play areas, mailboxes, loading docks, small parking lots, open areas and such like. Ideal for convenience and security lighting. Suitable for commercial or residential applications. Perfect for use where electricity is unavailable or too costly to install.
Technical Specifications
Performance
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Illumination time is subject to customer's requirements.
Steel powder coated hardware kit is included for attachment directly to the pole.
The hardware kit is supplied in sections for easy assembly.
The hardware kit will allow the battery box, solar panel and floodlight fixture to attach to form one system.
Light Fixture
System includes one or two 10w, 20w, or 30w LED floodlights.
LED power is subject to customer's requirements.
10w light output is 1330 lumens.
20w light output is 2660 lumens.
30w light output is 3990 lumens.
LED color temperature is 5700K.
Fixtures are suitable for outdoor use - IP67 rating.
Constructed of aluminum, PVC, and steel.
Lights are supplied with 20' of cable.
Floodlight dimensions are approx. 7" x 7.3" x 1.6".
Finish is bronze.
Battery
24 volt dc system.
Two 12 volt sealed AGM batteries are included.
Battery options include 18Ah, 32Ah, 55Ah, 79Ah, 92Ah, 105Ah.
Battery selection are subject to LED power and required illumination time.
Systems will be supplied with at least 3 days of battery reserve power.
Typical battery life is 3-5 years.
Battery Box
Includes a galvanized steel outdoor rated battery enclosure.
Enclosure will house the batteries and charge controller.
Battery enclosure size is subject to battery capacity.
Battery enclsoure options are BE02, and BE03.
Mounting hardware is included to attach the enclosure onto the pole.
BE02 dimensions are 9.9" x 15.75" x 8.9".
BE03 dimensions are 21.25" x 15.4" x 11.2".

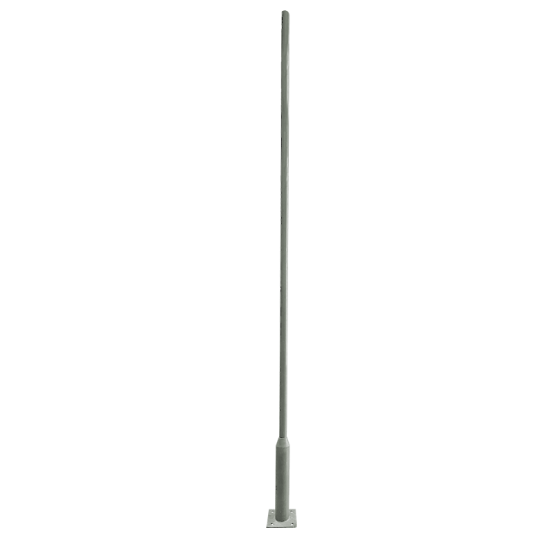

Pole
Choice of 10', 15', or 20' pole available.
The 10' (3 meter) pole is approximately 9.5' high and has a welded base plate of approximately 1/3" thick and approximately 9.75" x 9.75" square.
The 15' (4.5 meter) pole is approximately 14' 9" high and has a welded base plate of approximately 1/3" (8mm) thick and approximately 9.75" x 9.75" square.
The 10' and 15' pole base has four pre-drilled elongated holes 3/4" wide.
The 10' and 15' pole is approximately 3" diameter at the top and approximately 4.5" diameter at the base.
The 15' HD and 20' pole includes a 3/4" thick base plate with dimensions of 12.60" x 12.60" square.
The 15' HD and 20' pole are approx. 4" diameter at the top.
All poles include anchor kits to set into wet concrete.
Solar Panel
Includes an aluminum framed solar panel.
Solar panel size is subject to LED power, required illumination time, and install location.
Choice of 45w, 70w, 100w, 140w, 180w, and 280w panels.
Mounting hardware is included to attach the solar panel on the pole.
Charge Controller
Supplied with a MPPT charge controller which will monitor the charge and discharge of the batteries, and control the light operation.
The controller is fully programmable and stores 30 days of performance history.
A Bluetooth dongle can be purchased to allow access to history and program settings.
The MPPT charge controller is 30% more efficient than standard PWM controllers, and 10% more than most other MPPT controllers.
Additional efficiency for cloudy weather and during times of reduced sun radiation.
Provides extended battery life and extra protection against excessive battery discharge and overcharge.
Low voltage detection for automatic disconnect.
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Lighting control features illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Dimming option (where applicable) allows the lighting to dim at any time during the illumination time.
Battery voltage 12/24V dc auto select.
Rated charge current 10A/15A.
Operating temperature is -22 deg. F (-30 deg. C) to 140 deg. F (+60 deg. C).
Installation
Installation guide included.
Includes all equipment required for install and operation.
Solar panel must be installed facing south without shading from nearby structures.
Remarks
Subject to warranty registration, a limited 20 year solar panel warranty applies and a limited 5 year warranty on all other components (excluding batteries). Battery warranty (if applicable) is with the battery manufacturer.* Warranty registration is required (after purchase), otherwise a standard 30 day limited warranty will apply. After making your purchase, go to www.solarilluminations.com/registration to register your warranty.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
