This attractive solar powered lamp post light can be easily
installed to add reliable illumination to areas that need it. Supplied with a
14W 1800 lumen light, along with a powerful 33 Watt solar panel and 256
Watt-hour battery pack. The light will automatically activate at sunset, and
illuminate throughout the night until sunrise. Four lighting modes are
available, and can be selected prior to shipping. Please refer to the lighting
mode table in the picture gallery. This solar street light light is supplied with a 10ft galvanized
steel pole and necessary anchor bolts. Due to the unique, decorative, style and design of this solar street light, it's an ideal choice for private communities, HOA's, associations, and anyone looking or an aesthetically pleasing solution. Color of product is black. Color of the
light output is white.
Technical Specifications
Performance
Dusk to dawn illumination.
Default/factory mode is option two (as shown below).

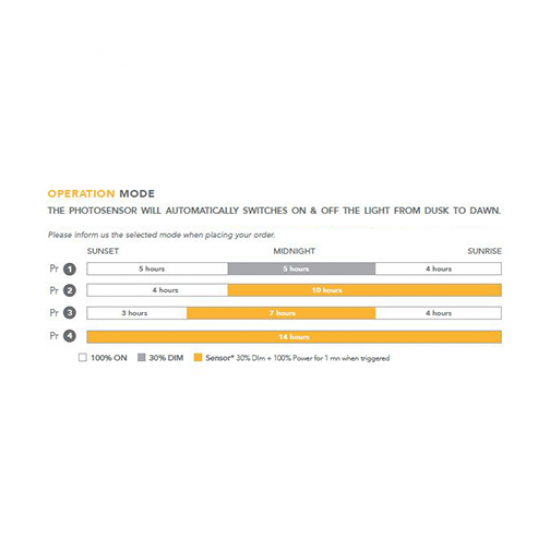

Refer to lighting mode table for operation options.
Illumination settings include dimming, a motion sensor, and/or timer.
Option one: On at full power for 5 hours, 30% power for 5 hours, full power for night remainder.
Option two: On at full power for 4 hours, motion sensor for remainder of the night. Motion sensor period dims the light to 30% power, and switches to 100% when motion is detected.
Option three: On at full power for 3 hours, 7 hours of motion sensor, then 4 hours at full power.
Option four: Motion sensor all night. Motion sensor dims the light to 30% power, and switches to 100% when motion is detected.
Up to 3 days reserve (autonomy) power to allow for cloudy days (subject to local conditions).
Fitted with a PIR motion sensor.
Commercial grade quality.
IP 65 weather rated.

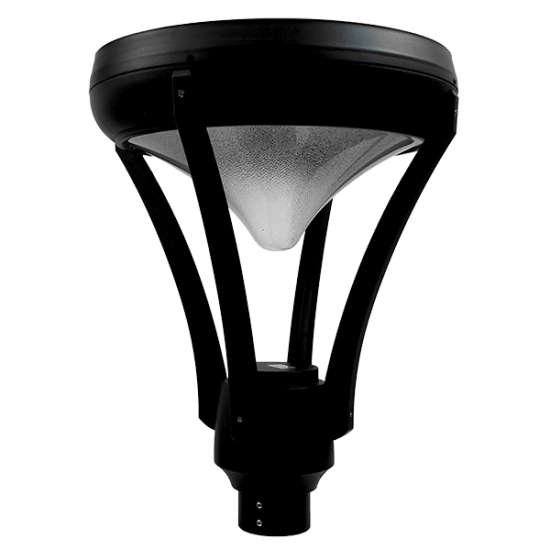

Light Fixture

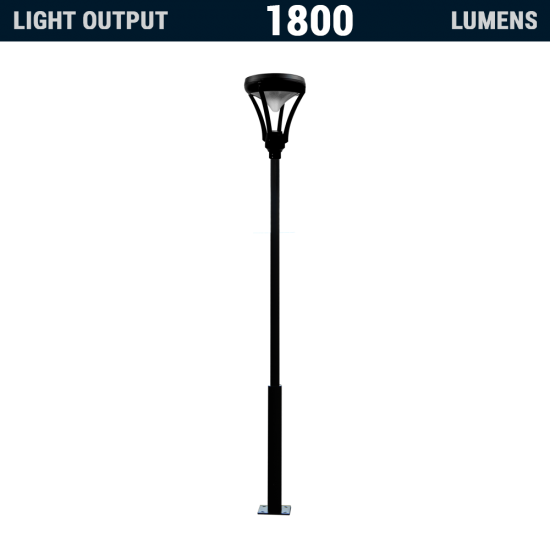

Lamp emits up to 1,800 lumens.
14 Watt LED power.
White 5,500K color temperature.
Aluminum, glass, and polycarbonate construction.
Black colored finish.
The light fixture is approximately 22.5" tall and 17.5" wide.
Battery
A 12.8V 20Ah lifePO4 battery is supplied and pre-installed.
Battery is replaceable when necessary.
Pole
Supplied with a heavy duty steel pole with a flat black powder coated finish.
10ft galvanized steel pole available.
The pole has a welded square base of approximately 1/3" (8mm) thick and 10" x 10" (25cm x 25cm).
The pole base has four pre-drilled elongated holes 3/4" (2cm) wide.
The pole is approximately 3" (76mm) diameter (O.D.) at the top and approximately 4.5" (115mm) diameter at the base.
Entire lamp post (pole and fixture) stands approximately 12' (3.5m) high with a 10ft pole.
Controller
Integrated MPPT charge controller supplied.
Desired light mode selected prior to shippng.
Charge controller stops over charge and over discharge of battery.
Controls light operation.
Solar Panel
The light fixture is fitted with an 18V 33 Watt solar panel.
The solar panel is neatly and discreetly integrated into the top of the light fixture.
Installation
Lamp requires full, direct sunlight throughout the day.
Avoid installing in shaded areas, around trees or tall structures.
Approx. 12' maximum recommended installation height.
Remarks
With valid warranty registration, this fixture is offered with a 24 month warranty (excluding battery), in accordance with our Terms, Conditions, and Policies.
Please Note:
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
Any concrete work required to facilitate the installation of a pole should not be conducted until all materials have been supplied and have been inspected and verified as being correct and suitable. Solar Illuminations does not accept any responsibility whatsoever for any works carried out in advance, including (but not limited to) ground, excavation, or civil works, pouring or creation of any concrete, cement, etc.
