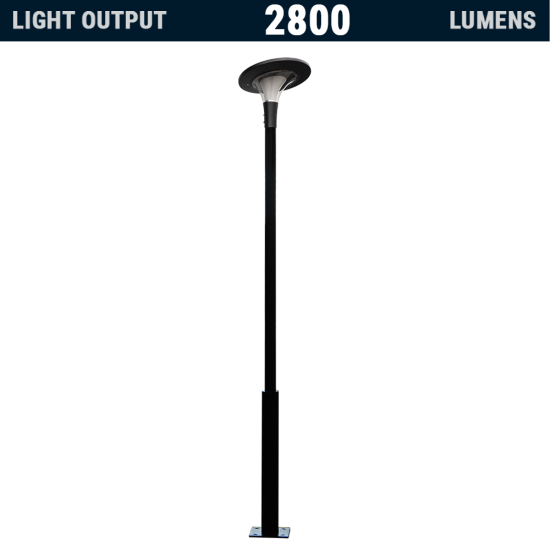

This unique, solar street light is capable of providing powerful and reliable lighting year-round. Being of commercial grade, it's very well made and offers some great features as standard. The lamp offers 18W of LED power which equates to 2,800 lumens of light output. The 38W solar panel is neatly and discretely built into the top of the fixture and because it has a slight angle, it can be positioned to face directly south. This solar street light fixture comes with a pre-installed, high capacity, 154Whr lithium battery pack. One of the neat features is that the user or installer can easily select the color of the light output. From the remote control you can choose a color temperature of 6000K (daylight white) or 3000K (warm white). This solar powered street light has a built-in motion sensor which can be enabled or disabled depending on the lighting mode selected. This system is supplied complete and includes an IR remote control. This allows the selection of different lighting modes to meet your requirements. The standard mode is 100% power for 3 hours, 40% power for 4 hours, and 20% for the remainder of the night. This solar powered street light will revert to 40% power if movement is detected. Other light modes include timed options, dimming, and motion control. This street light includes a choice of 10ft or 15ft pole although other pole heights are available upon request. This is an ideal solution for lighting outdoor areas such as small streets, small parking lights, and sidewalks. That makes it a great choice for private neighborhoods, communities, HOA's and sub-divisions, etc. For use in either residential or commercial applications, such as parks, walking trails, playgrounds, mailbox areas, dog parks, to name a few. Color of light and pole is black OR GRAY. Color of light output is cool white (6,000k) or warm white (3,000k).
Technical Specifications
Performance
Dusk to dawn illumination.
Illumination settings include dimming, a motion sensor, and/or timer.
4 hour, 6 hour, or 12 hour illumination setting can be selected.
Default lighting mode is 100% output for 3 hours, 40% for 4 hours, then 20% output until dawn. Light will switch to 40% when motion is detected.
An alternative pre-set mode to select is 30% power, then 100% power when motion is detected.
Remote control included.
Up to 3 days reserve (autonomy) power to allow for cloudy days (subject to local conditions).
Fitted with a motion sensor which can be enabled or disabled
Commercial grade quality.
IP 65 weather rating.
Light Fixture
Lamp emits up to approx. 2800 lumens.
Fitted with 18 Watts of LEDs.
Select desired color temperature with remote.
The user/installer can select and store either white 6000K, or warm white 3000K from the remote control.
Aluminum, glass, and polycarbonate construction.
Black or gray colored finish.
The light fixture is approximately 17.5" tall and 23.75" wide.
Battery
A 12.8V 154 Watt-hour lifePO4 battery is supplied and pre-installed.
Battery is replaceable when necessary.
Pole
Supplied with a heavy duty galvanized steel pole.
Choice of black or gray finish.
10' (3M) or 15' (4.5M) pole height available.
Other pole heights available upon request.
The pole has a welded square base of approximately 1/3" (8mm) thick and 10" x 10" (25cm x 25cm).
The pole base has four pre-drilled elongated holes 3/4" (2cm) wide.
The pole is approximately 3" (76mm) diameter (O.D.) at the top and approximately 4.5" (115mm) diameter at the base.
Entire lamp post (pole and fixture) stands approximately 12' (3.5m) high with a 10' pole or 17' (5M) high with a 15' pole.
Controller
Integrated MPPT charge controller supplied.
Light modes can be selected with included remote control.
Charge controller stops over charge and over discharge of battery.
Controls light operation.
Solar Panel
The light fixture is fitted with an 18V 38 Watt solar panel.
The solar panel is neatly and discreetly integrated into the top of the light fixture.
Installation
Lamp requires full, direct sunlight throughout the day.
Avoid installing in shaded areas, around trees or tall structures.
Approx. 15' maximum recommended installation height.
Remarks
With valid warranty registration, this fixture is offered with a 24 month warranty (excluding battery), in accordance with our Terms, Conditions, and Policies.
Please Note:
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
Any concrete work required to facilitate the installation of a pole should not be conducted until all materials have been supplied and have been inspected and verified as being correct and suitable. Solar Illuminations does not accept any responsibility whatsoever for any works carried out in advance, including (but not limited to) ground, excavation, or civil works, pouring or creation of any concrete, cement, etc.
*View our Terms, Conditions and Polices (including our Returns Policy) for further information.
PDF Data
