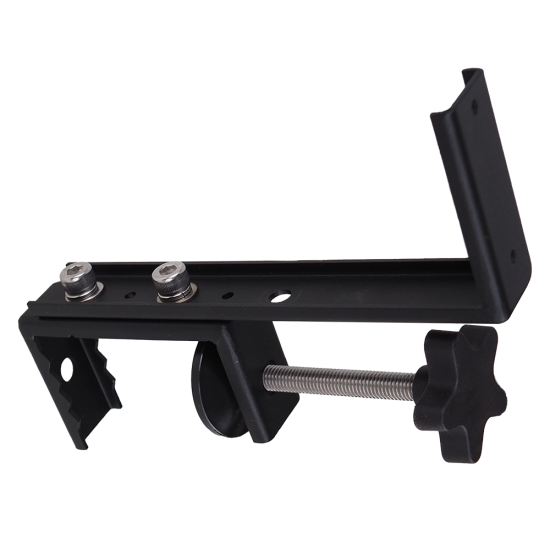

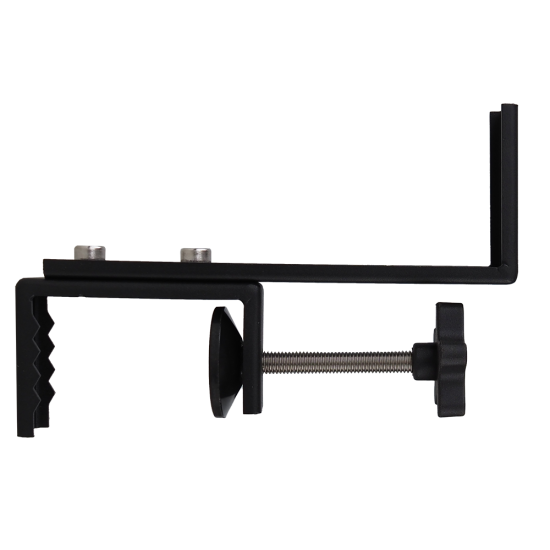

SP19 Light Fixture Mounting Brackets (For FL150)

This optional pair of mounting brackets is designed for use with our FL150 solar sign light fixture only. These lightweight, adjustable brackets are designed to attach to the top edge of a sign structure (e.g. post & panel sign) and clamp into place. Installed at the correct distance apart, these allow our FL150 sign light fixture to attach to the brackets. The purpose is to allow our FL150 sign light fixture to not only stand-off the face of the sign a small distance, but to also allow a less obstructed installation to the sign face. Perfect for applications where surface mounting a sign light fixture is not possible or where it may detract or obscure some of the sign content. Although these brackets are supplied with adjustable thumb-turn knobs, you could remove these and directly screw or bolt through into the top of the sign instead. You could also remove the lower U-shape section of each bracket and use only the L-shape upper section. The L-shape upper sections could then be screwed or bolts into the top edge of the sign instead. Powder coated black finish. Supplied as a pair.

Technical Specifications

Set of two support brackets.
Approx. 8" long x 1" wide.
Width of U-shape section is approx. 2.75" (with adjustable thumb screw in place).
Width of U-shape section is approx. 3.25" (without adjustable thumb screw in place).
