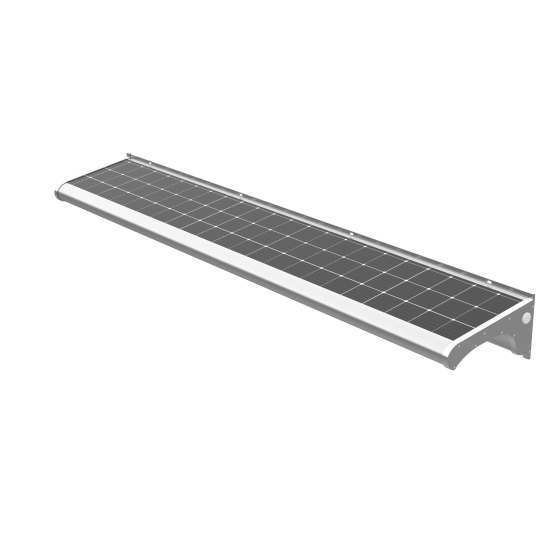

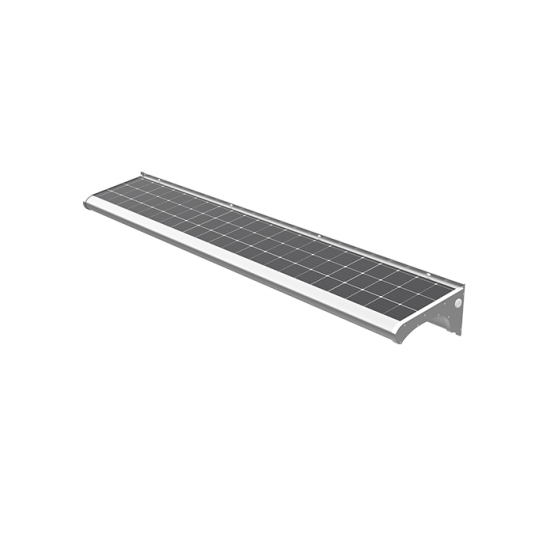

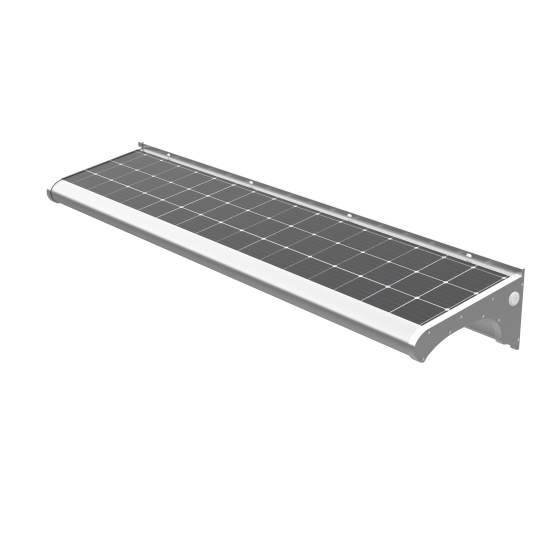

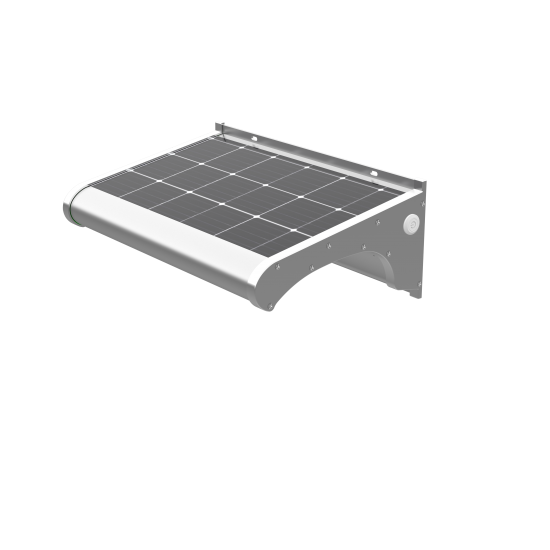

This unique, compact, solar powered sign light fixture is

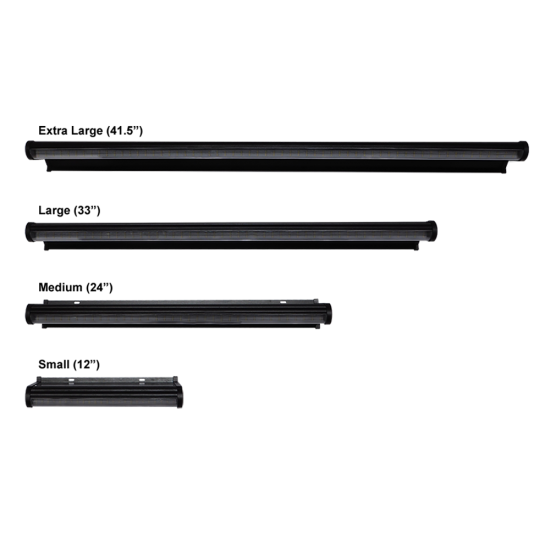

ideal for anyone seeking an all-in-one integrated design. It’s offered in four
different lengths. Select from small (12” long), medium (24” long), large (36”
long), or extra-large (48” long) versions. Designed to be installed at the top
of a sign.
The small version offers 2W LED power with 400 lumens, the medium
version offers 4W LED power with 800 lumens, the large version offers 6W LED
power with 1,200 lumens, and the extra-large version offers 8W LED power with
1,600 lumens. The sign face is illuminated from the top in a downwards and
slightly outwards direction. This self-contained, stand-alone light fixture
features multiple, powerful, white LEDs, that illuminate automatically at dusk for up to several hours or until dawn. The LED lampshade has special optics to help distribute
the light more evenly. This fixture comes with a pre-installed, high-capacity, lithium-ion battery. It has a solar panel that is integrated neatly into the top of the fixture. Ideal
for small to medium signs. Perfect for street signs, residential address signs,
wayfinding and directional signs, notice boards, church signs, and small
business signs, etc. An XXL (62" long) and an XXXL (74" long) version
is available by special order, with 10W LED power (2,000 lumens) and 12.5W LED
power (2,500 lumens) respectively. Color of product is silver. Color of light

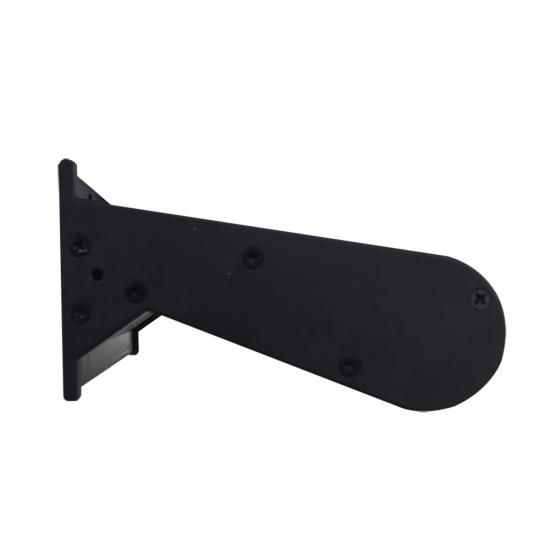

output is white. An optional T-bracket is available for fixture mounting which
can be used universally, or with Unistrut or slotted channel, making it ideal
for street signs or for attaching to a post or pole.
Technical Specifications
Performance
Commercial grade, all in one, integrated, compact design.
Completely stand-alone and self-contained.
Illuminates for up to several hours after dusk, in ideal conditions.
The small version can illuminate a sign up to approx. 36” x 36” (90cm x 90cm).
The medium version can illuminate a sign up to approx. 48” x 48” (120cm x
120cm).
The large version can illuminate a sign up to approx. 60” x 60” (150cm x
150cm).
The extra-large version can illuminate a sign up to approx. 72” x 72” (180cm x
180cm).
IP65 weather rated.
CE conformity.
Light Fixture
Fitted with multiple, super bright, white OsramⓇ
LEDs and optics.
Approximate 90-degree LED beam angle.
Small version has 2W LED power and an output of 400 lumens.
Medium version has 4W LED power and an output of 800 lumens.
Large version has 6W LED power and an output of 1,200 lumens.
Extra Large version has 8W LED power and an output of 1,600 lumens.
LED color temperature is daylight white 5,500k (4,000k and 3,000k by special
order).
Lumen output ration is 200 lumens per watt (lm/W).
Automatic dusk and dawn sensing.
Aluminum construction with polycarbonate lampshade.
Small version is approx. 13” long x 11” wide and weighs approx. 5.5lbs
(2.5kgs).
Medium version is approx. 27” long x 11” wide and weighs approx. 9lbs (4kgs).
Large version is approx. 39” long x 11” wide and weighs approx. 12lbs (5.5kgs).
Extra-large version is approx. 53” long x 11” wide and weighs approx. 17lbs
(8kgs).
XXL (62") and XXXL (74") versions available by special order.
XXL version offers 10W LED power (2,000 lumens) and the XXXL version offers
12.5W LED power (2,500 lumens).
On/off switch for manual override or fixture storage.
CRI >80.
IK08 impact rating.
Color of fixture is silver. Other colors by special order and for very large
quantity orders only.
Battery
A pre-installed, high capacity, lithium-ion battery is
included.
The battery has a typical lifespan of up to several years and is replaceable
when required.
Small version is fitted with a pre-installed 7.4V 2.6AH battery.
Medium version is fitted with a pre-installed 7.4V 5.2AH battery.
Large version is fitted with a pre-installed 7.4V 7.8AH battery.
Extra-large version is fitted with a pre-installed 7.4V 10.4AH battery.
XXL version is fitted with a 7.4V 15.6AH battery and the XXXL version is fitted
with a 7,4V 20.8AH battery.
Solar Panel

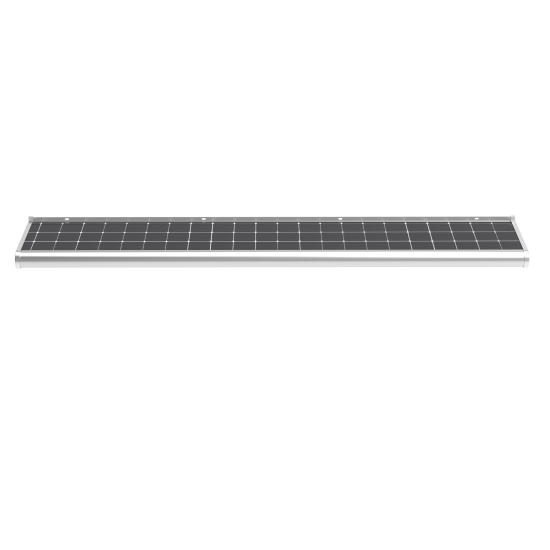

The solar panel is neatly built into the top of the fixture.
Small version is fitted with a 12V 10W mono-crystalline solar panel.
Medium version is fitted with a 12V 20W mono-crystalline solar panel.
Large version is fitted with a 12V 30W mono-crystalline solar panel.
Extra-large version is fitted with a 12V 40W mono-crystalline solar panel.
XXL version is fitted with a 12V 50W solar panel and the XXXL version is fitted
with a 12V 60W solar panel.
Installation
Easy to install.
Solar panel must be capable of receiving full exposure, without any shading
from trees or other tall structures.
Remarks
With valid warranty registration, this fixture is offered
with a 24-month warranty (excluding battery), in accordance with our Terms,
Conditions, and Policies.
Please Note
This product is a special order and is non-returnable except
in the event of a fault (during its warranty period) when the product, once returned,
will be repaired or replaced. The solar panel must be installed in a location
where it can receive full direct sunshine (when available) and usually set
facing South at an appropriate angle (where adjustment options allow). The
solar panel must not be installed in a shaded or part shaded location and never
indoors. The standard specifications of the system (particularly the solar
panel Wattage and battery capacity) may need to be adjusted. These components
are determined by your geographic location, power consumption (LED Wattage) and
the total amount of hours of illumination time required. Such changes to the
standard specifications may increase or decrease the cost shown. Please contact
us for more information or assistance. The illumination time is estimated and
subject to various factors including (but not limited to) geographic location,
seasons, temperature, weather conditions & location of product etc. The
illumination time of most solar lights can reduce during winter months when the
weather is poor, and the days are shorter. During this time insolation hours
decrease accordingly. Shorter illumination time due to one or more of the above
factors does not define the product as being ‘defective’ or ‘not as described’.
All solar lights must be used in a completely dark location at nighttime
otherwise they may not illuminate. Nearby strong lighting sources or ambient
lighting may affect the operation of a solar light. This does not define the
product as being 'defective' or 'not as described'. Please note, if you do not
install or use this product for several months the battery may discharge
naturally on its own. By allowing a battery to deep discharge it may cause
irreversible damage as the battery may then lose the ability to recharge or
hold a full charge. Although unlikely, we reserve the right to supply this
product with any minor alterations or minor changes to the specifications
(shown above by text description or by photographs) due to different supplies
or product batches received, incorporating such product changes made by the manufacturer,
without further notice. Descriptions, specifications and photographs are
updated regularly but may not be current when minor changes to a product have
only recently been made.
