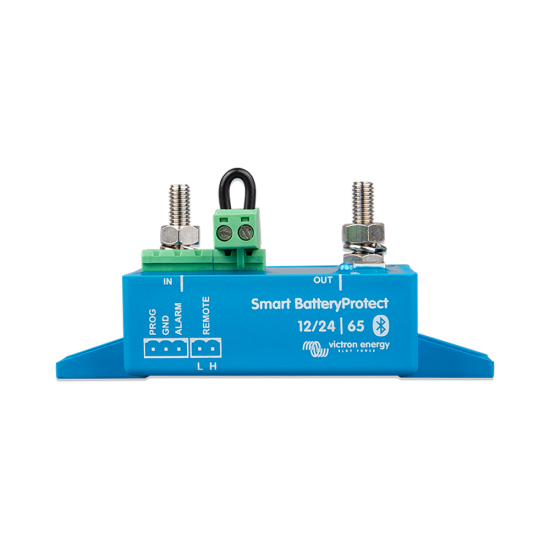

BP01 SMART Battery Protect / Low Voltage Disconnect

This battery protection device can be connected directly between your battery supply and load to prevent battery discharging. Smart Battery Protect is fitted with bluetooth to make programming and monitoring easy with the use of the free Victron Connect app. This battery protection device will cut power to the load when the battery voltage drops to a programmable voltage. Once the batteries have recharged, power will be automatically supplied to the load. No reset buttons or switches required.

The load will be disconnected 90 seconds after the battery voltage drops below the preset level. If the battery voltage increases again to the connect threshold within this time period (after the engine has been started for example), the load will not be disconnected. The load will be reconnected 30 seconds after the battery voltage has increased to more than the preset reconnect voltage.

Battery Protect / Low Voltage Disconnect
Maximum continuous load current: 65A
Peak Current (during 30 seconds): 250A
Operating Voltage range: 6-35V
Load disconnect delay: 90 seconds
Load reconnect delay: 30 seconds
Default thresholds: Disengage: 10.5V or 21V Engage: 12V or 24V
Operating temperature range: Full load -40°C to +40°C (up to 60% of nominal load at 50°C)
IP Rating: Electronics: IP67 (potted) Connections: IP00
Connection: M6
Weight: .5lbs
Dimensions: 1.6” x 1.9” x 4.2”
Remarks

One year warranty*.
*View our Terms, Conditions and Polices (including our Returns Policy) for further information.
