This is the most unique, most powerful, and most efficient solar powered all in one street light systems. Perfect for those seeking an advanced integrated light fixture. Powerful, dual LED modules provide the lighting which can be aimed in one direction, or two opposing directions, therefore increasing the distribution area.

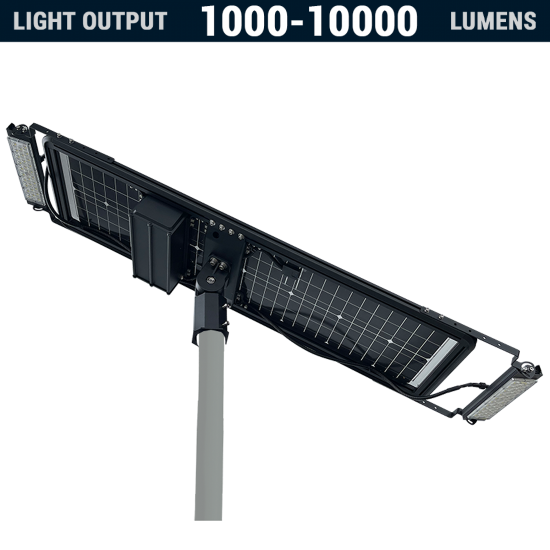

This all-in-one solar powered LED street light incorporates a pair of high output LED modules that can swivel up to 180 degrees. This enables the installer to project the light exactly where it is required. The LED modules are fitted with special optics that provide a Type III distribution. A choice of LED power is available from 5W to 50W in any increment of 1W. This means that you can select and order this light fixture to provide the exact amount of lighting that you need for your application (1,000 lumens to 10,000 lumens). These parameters may be determined by the geographic location of the installation site and/or the lighting modes and the total illumination time required. This lighting system will attach to the top of a 3" pole. It features a 75W solar panel and a pre-installed, integrated, high capacity lithium battery pack. This system can be pre-programmed to operate dusk to dawn. Or from dusk for X amount of hours (singled timed mode). Or from dusk for X amount of hours, then off, then back on again for X amount of hours until dawn (dual timed mode). The option to have the lighting dim during any of the modes may also be available as part of a program. All programs and options are to be decided prior to ordering because the system is programmed by Solar Illuminations in advance of shipping the fixture. Color of fixture is black. Color of light output is white.
Popular Uses
Perfect for small streets,
parking lots, general open areas, playgrounds, parks, mail box kiosks, walking trails, dog parks, HOA's etc. It could also be used for residential applications such as yards, driveways, etc.
Technical Specifications
Performance
All-in-one, integrated design.
Weather rating is I.P. 65
Ideal operating temperature charging range is 0 deg C. to +60 deg C. (-32 deg F. to +140 deg F.).
Ideal operating temperature discharging range is -20 deg C. to +60 deg C. (-4 deg F. to +140 deg F.).
Ideal storage temperature range is 0 deg C. to +45 deg C. (-32 deg F. to +113 deg F.).
At the time of ordering, this system will be programmed to operate with a choice of one or more modes.
Choice of operational modes include dusk to dawn, a singled timed mode, or a dual timed mode.
The option to have the lighting dim, by any percentage, and for any amount of time, may also be available.
Solar Illuminations will program the system to perform as per customer requirements, before the system is shipped.
The programmable options may be determined by the geographic location of the installation site and other environmental factors.
A typical, default program, consisting of 4 different modes, would be
for example, on at 100% output for 1 hour, then 80% output for 2 hours,
then 60% output for 4 hours, then 25% output until dawn.
Light Fixture
Unique, all in one style fixture with a choice of LED power from 5W to 50W (in 1W increments).
The LED's color temperature is 5000~6000k.
Other LED color temperatures are available by special order (3,000k to 6,000k).
Lumen output from 1,000 lm to 10,000 lm.
LED power is 200 lumens per watt (200 lm/W).
With the LED power set a 5W the lumen output would be 1,000 lumens.
If the LED power is set 50W the lumen output would be 10,000 lumens.
The fixture is approx. 45" x 13" x 2" (115cm x 33cm x 5cm) LxWxD.
Battery
Integral high capacity Lithium battery pack is included.
720WH battery pre-installed.
Battery life is typically 5 to 8 years,
The battery is replaceable when required.
The system has built-in charge control regulation with over-charge and discharge protection.
Solar Panel
The fixture incorporates a mon-crystalline 18V 75W bi-facial solar panel.
An automatic PTC heated solar panel option is available by special order (for high elevation/heavy snowfall locations).
Installation
An integrated tenon and mounting hardware is included.
Easy installation onto almost any round pole or round post.
The tenon supplied can be attached to a round pole of 3" diameter.
It can attach to other diameter poles using a tenon/adapter (available by special order).
Remarks
With valid warranty registration, this fixture is offered with a 24 month warranty (excluding battery), in accordance with our Terms, Conditions, and Policies.
Please Note:
This product is a special order and is non-returnable except in
the event of a fault (during its warranty period) when the product, once
returned will be repaired or replaced. The solar panel must be
installed in a location where it can receive full direct sunshine (when
available) and usually set facing South at an appropriate angle (where
adjustment options allow). The solar panel must not be installed in a
shaded or part shaded location and never indoors. The standard
specifications of the system (particularly the solar panel Wattage and
battery capacity) may need to be adjusted. These components are
determined by your geographic location, power consumption (LED Wattage)
and the total amount of hours of illumination time required. Such
changes to the standard specifications may increase or decrease the cost
shown. Please contact us for more information or assistance. The
illumination time is estimated and subject to various factors including
(but not limited to) geographic location, seasons, temperature, weather
conditions & location of product etc. The illumination time of most
solar lights can reduce during winter months when the weather is poor
and the days are shorter. During this time insolation hours decrease
accordingly. Shorter illumination time due to one or more of the above
factors does not define the product as being ‘defective’ or ‘not as
described’. All solar lights must be used in a completely dark location
at night time otherwise they may not illuminate. Nearby strong lighting
sources or ambient lighting may affect the operation of a solar light.
This does not define the product as being 'defective' or 'not as
described'. Please note, if you do not install or use this product for
several months the battery may discharge naturally on its own. By
allowing a battery to deep discharge it may cause irreversible damage as
the battery may then lose the ability to recharge or hold a full
charge. Although unlikely, we reserve the right to supply this product
with any minor alterations or minor changes to the specifications (shown
above by text description or by photographs) due to different supplies
or product batches received, incorporating such product changes made by
the manufacturer, without further notice. Descriptions, specifications
and photographs are updated regularly but may not be current when minor
changes to a product have only recently been made.
