This all-in-two, integrated style, solar powered area light fixture is supplied complete and includes a choice of pole. It has a very unique feature which enables the installer to set the orientation and angle of the solar panel to suit the geographic location of the site completely irrespective of the direction of the luminaire. This is a very important and valuable feature because it allows the solar panel to face directly south (as it should do in North America) and be set at an approximate 30~60 degree angle (as it should be in North America). Ideal for small streets, parking lots, parks, arenas, storage facilities, recreational areas, walking & jogging trails and general area lighting applications.
This unique, stand-alone, self-contained light fixture is fitted with multiple Cree LEDs. It offers 20W LED power and providing up to 4,200 lumens. The LEDs provide a powerful white output (CCT 6,000k) with Type III distribution. There is a built-in microwave motion sensor which can be used with some modes. This fixture is designed to attach to the top of a 3” O.D round pole or other diameters using an optional tenon adaptor. It can also be configured to attach to the side of a pole, post or vertical structure using an optional support arm. Supplied complete with a powerful 120W monocrystalline solar panel and internal, pre-installed, high capacity (27AH) LiFePO4 lithium battery. This light fixture features three different operational modes. The installer or user can select the desired operational mode using the remote control that is supplied. The default mode is automatic illumination at dusk at 20% output (840lm) with 100% output (4,200lm) upon motion detection. Another mode to choose from is 100% output (4,200lm) at dusk for the first two hours, then 50% output (2,100lm) for a further two hours, then off but with 100% output (4,200lm) upon motion detection. The other mode is 100% output (4,200lm) at dusk for the first two hours, then 40% output (1,680lm) for the next three hours, then 20% output (840lm) for a further two hours, then off. Supplied complete with a choice of pole heights. Color of fixture is gray. Color of pole is gray. Color of light output is white.
Perfect for a wide range of applications including small street lighting projects, parking lots, dog parks, mail box kiosks, security lighting, commercial sites, loading docks, boat docks, play areas and playparks, as well as general outdoor area lighting usage.
Technical Specifications
Performance
Unique, integrated design.
All-in-two style, compact style.
High quality aluminum alloy and full die-cast aluminum construction.
Silver/gray finish. Other colors by special order.
304 Grade stainless steel hardware.
Automatic detection of day and night using 30 Lux threshold.
Corrosion resistant and wind resistant design.
Weather rating is I.P. 65
Certified ISO9001:2015 Quality Assured
Meets internal standards ISO14001, IEC61215, IEC61730, CE, RoHS, FCC, TUV and SGS.

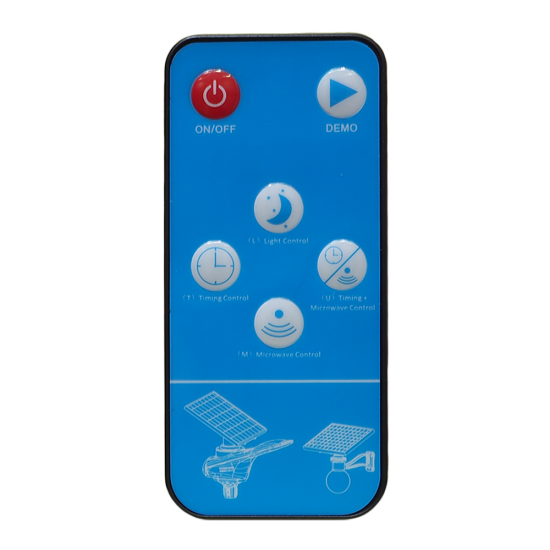

Supplied with a remote control for operational mode set-up, manual on/off use, testing etc.
Three different operation modes available for selection using the IR remote control (included).
Some of the modes allow the use of the integrated motion sensor.
Operational mode “On/Off” (manual use) allows lighting to be on or off as desired regardless of day or night.
Operational mode 1: Automatic illumination at dusk at 20% output (840lm) with 100% output (4,200lm) upon motion detection
Operational mode 2: Automatic illumination at 100% output (4,200lm) at dusk for the first two hours, then 50% output (2,100lm) for a further two hours, then off but with 100% output (4,200lm) upon motion detection.
Operational mode 3: Automatic illumination at 100% output (4,200lm) at dusk for the first two hours, then 40% output (1,680lm) for the next three hours, then 20% output (840lm) for a further two hours, then off.
Microwave detector senses exterior physical movement of objects such as
people, vehicles etc. and should not be positioned where other movement
sources could cause false activations (when using an appropriate mode).
Microwave detectors are not typically affected by wind, dust, temperature, humidity etc. like conventional PIR detectors.
Light Fixture
Fitted with Type III distribution optics as standard.
Type II distribution is available by special order.
20W LED power.
A microwave motion sensor is built into the fixture (operational when motion detector modes are selected).
Motion sensor detection range (at ground level) is up to 50' forward, up to 25’ each side with up to a 90 degree angle.
The fixture is fitted with multiple Cree® LEDs which have a color temperature of 6,000k.
High luminous efficiency LEDs up to approx. 210lm/w.
Up to 4,200 lumens at full power.
A 15W, 40W, 50W, 60W, 80W, and 100W version is available by special order.
Dimension are approx. 29" x 11" x 2"~12” (74cm x 28cm x 5~30cm) LxWxD.
It is ideal for use on a pole of 10’ to 20’ (3M to 6M).
Battery
Internal high capacity Lithium (LiFePO4) battery pack which is pre-installed.
Battery lifespan is up to 8 years.
Battery is easily replaced when required.
12.8v DC / 27AH,.
An integral MPPT charge controller is included and pre-installed.
The MPPT charge controller is up to 30% more efficient than standard PWM controllers.
The system has built-in charge control regulation with over-charge and discharge protection.
Hybrid (solar/grid tied) versions are available by special order.
Optional smart interface available allowing GPRS/4G/5G remote management
and networking for operational monitoring, control adjustments, data
analysis etc.
Pole
The fixture can be attached to the top of a pole or to the side of a pole (using an optional side-of-pole mount support arm, not included).
Custom pole heights are available by special order.
The pole is made of galvanized steel and supplied with a satin gray painted finish.
The 10' (3 meter) pole is approximately 9' 10" (300cm) high and has a welded base plate of approximately 3/8" (9.5mm) thick and approximately 10" x 10" (25cm x 25cm) square.
The 15' (4.5 meter) pole is approximately 14' 9" (435cm) high and has a welded base plate of approximately 3/8" (9.5mm) thick and approximately 10" x 10" (25cm x 25cm) square.
The 20' (6 meter) pole is approximately 19' 10" (605cm) high and has a welded base plate of approximately 3/8" (9.5mm) thick and approximately 11" x 11" (28cm x 28cm) square.
The 10' and 15' pole base has four pre-drilled elongated holes 3/4" wide.
The 10', 15', and 20' pole is approximately 3" (76mm) diameter (O.D.) at the top and approximately 4.5" (115mm) diameter at the base.
The 10', 15', and 20' poles are supplied with a rebar/anchor kit is included for installation into wet concrete with nuts, bolts and washers.
The 10' and 15' poles can be fixed to an existing concrete pad using suitable expanding anchor bolts (not included).
The 20' pole has a square flat base (flat plate) with pre-drilled holes for installation which are approx. 13/16" (20mm diameter).
Solar Panel

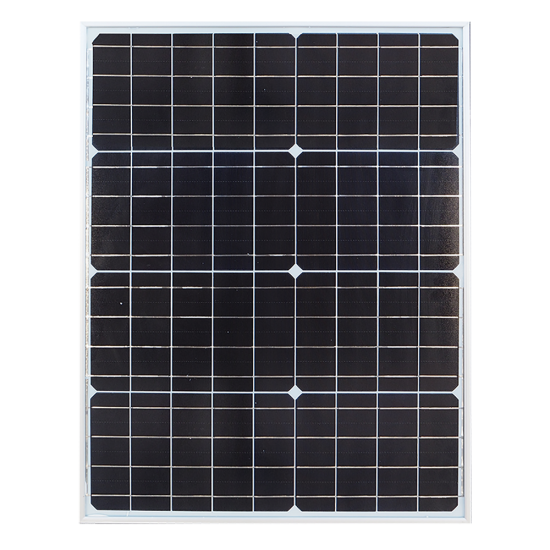

Supplied with an aluminum framed mono crystalline silicon solar panel.
360 degree rotation and tilt capabilities.
120 Watt / 18V DC.
Other solar panel Wattages are available by special order.
Installation
Fast installation time (typically 15 minutes or less once the pole is installed).
Can be installed on the top of a pole or on the side of a pole (using an optional support arm).
Remarks
With valid warranty registration, this fixture is offered with a 24 month warranty (excluding battery), in accordance with our Terms, Conditions, and Policies.
Please
Note:
This product is a special order and is non-returnable except in
the event of a fault (during its warranty period) when the product, once
returned will be repaired or replaced.
The solar panel must be
installed in a location where it can receive full direct sunshine (when
available) and usually set facing South at an appropriate angle (where
adjustment options allow). The solar panel must not be installed in a
shaded or part shaded location and never indoors. The standard
specifications of the system (particularly the solar panel Wattage and
battery capacity) may need to be adjusted. These components are
determined by your geographic location, power consumption (LED Wattage)
and the total amount of hours of illumination time required. Such
changes to the standard specifications may increase or decrease the cost
shown. Please contact us for more information or assistance. The
illumination time is estimated and subject to various factors including
(but not limited to) geographic location, seasons, temperature, weather
conditions & location of product etc. The illumination time of most
solar lights can reduce during winter months when the weather is poor
and the days are shorter. During this time insolation hours decrease
accordingly. Shorter illumination time due to one or more of the above
factors does not define the product as being ‘defective’ or ‘not as
described’. ;All solar lights must be used in a completely dark location
at night time otherwise they may not illuminate. Nearby strong lighting
sources or ambient lighting may affect the operation of a solar light.
This does not define the product as being 'defective' or 'not as
described'. ;Please note, if you do not install or use this product for
several months the battery may discharge naturally on its own. By
allowing a battery to deep discharge it may cause irreversible damage as
the battery may then lose the ability to recharge or hold a full
charge. ;Although unlikely, we reserve the right to supply this product
with any minor alterations or minor changes to the specifications (shown
above by text description or by photographs) due to different supplies
or product batches received, incorporating such product changes made by
the manufacturer, without further notice. ;Descriptions, specifications
and photographs are updated regularly but may not be current when minor
changes to a product have only recently been made.
Any concrete work required to facilitate the installation of a pole should not be conducted until all materials have been supplied and have been inspected and verified as being correct and suitable. Solar Illuminations does not accept any responsibility whatsoever for any works carried out in advance, including (but not limited to) ground, excavation, or civil works, pouring or creation of any concrete, cement, etc.
*View our Terms, Conditions and Polices (including our Returns Policy) for further information.
