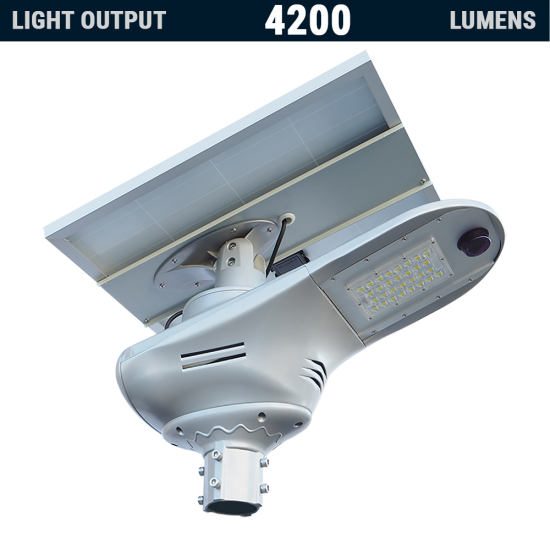

Unique and exclusive to Solar Illuminations. This all-in-two style, solar area light system provides many of the features that an all-in-one system can provide, but includes an adjustable solar
panel. This feature allows the flexibility to set the orientation and
angle of the solar panel to suit the geographic location of the
installation site. The angle and direction of the solar panel are often critical in a professional installation. This compact, integrated lighting system is packed
with features and available in two different versions (20W or 30W LED power). Installation is easy. It can be installed on the top of a pole or on the side of a pole using an optional support arm. All models offer the user or installer to select from five different
operational modes which can be chosen using the remote control supplied. The solar powered street light system can also be customized by Solar Illuminations with a single, unique program or mode, as per customer requirements. Color of product is
silver/gray. Color of light output is white.
Ideal for a wide variety of different applications including small street light projects, parking lots, mailbox kiosks, dog parks, playground and play areas, security lighting for commercial and industrial sites, or general outdoor area lighting use.
Technical Specifications
Performance
Unique, compact, all-in-two, integrated design.
High quality aluminum alloy and full die-cast aluminum construction.
Silver/gray finish. Other colors by special order.
304 Grade stainless steel hardware.
Automatic detection of day and night using 30 Lux threshold.
Corrosion resistant and wind resistant design.
Weather rating is I.P. 65
Certified ISO9001:2015 Quality Assured
Meets internal standards ISO14001, IEC61215, IEC61730, CE, RoHS, FCC, TUV and SGS.
Supplied with a remote control for operational mode set-up, manual on/off use, testing etc.
Five different operation modes can be selected using the supplied IR remote control.
Operational mode “Demo” (test) lighting is on for 1 minute.
Mode “On/Off” (manual use) allows lighting to be on or off as desired regardless of day or night.
Operational mode 1: On at dusk for 6 hours at 100% output, then 2 hours at 50% output, then off with 100% output upon motion detection until dawn.
Operational mode 2: On at dusk for 4 hours at 100% output, then 40% output until dawn.
Operational mode 3: On at dusk for 4 hours at 100% output, then 4 hours at 50% output, then 30% output until dawn, with 100% output upon motion detection.
Operational mode 4: On at dusk at 33% output until dawn, with 100% output upon motion detection.
Operational mode 5: On at dusk for 6 hours at 100% output, then 2 hours at 80% output, then off.
Microwave detector is usually superior than PIR motion detectors.
Microwave detector senses exterior physical movement of objects such as
people, vehicles etc. and should not be positioned where other movement
sources could cause false activations (when using U or M operational
modes).
Microwave detectors are not typically affected by wind, dust, temperature, humidity etc. like conventional PIR detectors.
Dawn is defined as being within 14.5 hours after dusk.
Light Fixture
Fitted with Type III distribution optics as standard.
Type II optics are available by special order.
A microwave motion sensor is built into the fixture on all models (operational when motion detector modes are selected).
Motion sensor detection range (at ground level) is up to 50' forward, up to 25’ each side with up to a 90 degree angle.
The fixture is fitted with multiple Bridgelux® LEDs
Color temperature of LEDs are 5,500k ~ 6,000k.
The 20W model emits up to approx. 3,600 lumens at full power.
The 30W model emits up to approx. 5.400 lumens at full power.
A 15W, 40W, 50W, 60W, 80W, and 100W version is available by special order.
The 20W and 30W models are approx. 29" x 11" x 2"~12” (74cm x 28cm x 5~30cm) LxWxD.
The 20W model is ideal for use on a pole of 10’ to 20’ (3M to 6M).
The 30W model is ideal for use on a pole of 15’ to 26’ (5M to 8M).
Battery
All versions incorporate an internal high capacity Lithium (LiFePO4) battery pack which is pre-installed.
Battery lifespan is up to 8 years.
Battery is easily replaced when required.
The 20W version is fitted with a 27ah 12.8v DC battery.
The 30W version is fitted with a 33ah 12.8v DC battery.
An integral MPPT charge controller is included and pre-installed.
The MPPT charge controller is up to 30% more efficient than standard PWM controllers.
The system has built-in charge control regulation with over-charge and discharge protection.
Hybrid (solar/grid tied) versions are available by special order.
Optional smart interface available allowing GPRS/3G/4G remote management
and networking for operational monitoring, control adjustments, data
analysis etc.
Solar Panel
Supplied with an aluminum framed monocrystalline silicon solar panel.
360 degree rotation and tilt capabilities.
The 20W model is fitted with a 80 Watt 18v DC solar panel (30" x 26").
The 30W model is fitted with a 100 Watt 18v DC solar panel (36" x 26").
The solar panel Wattage may be sized for the geographic location of the
installation site and/or in accordance with the operational mode
required.
Other solar panel Wattages are available by special order.
Installation
Suitable for pole mounting only.
Pole must be 2.5” to 3” diameter (60~76mm).
Other pole diameters are acceptable with the use of a tenon (not included).
Easy to install onto a round pole.
Fast installation time (typically 15 minutes or less).
Can be installed on the top of a pole or on the side of a pole (using an optional support arm).
Remarks
With valid warranty registration, this fixture is offered with a 24 month warranty (excluding battery), in accordance with our Terms, Conditions, and Policies.
Please
Note:
This product is a special order and is non-returnable except in
the event of a fault (during its warranty period) when the product, once
returned will be repaired or replaced.
The solar panel must be
installed in a location where it can receive full direct sunshine (when
available) and usually set facing South at an appropriate angle (where
adjustment options allow). The solar panel must not be installed in a
shaded or part shaded location and never indoors. The standard
specifications of the system (particularly the solar panel Wattage and
battery capacity) may need to be adjusted. These components are
determined by your geographic location, power consumption (LED Wattage)
and the total amount of hours of illumination time required. Such
changes to the standard specifications may increase or decrease the cost
shown. Please contact us for more information or assistance. The
illumination time is estimated and subject to various factors including
(but not limited to) geographic location, seasons, temperature, weather
conditions & location of product etc. The illumination time of most
solar lights can reduce during winter months when the weather is poor
and the days are shorter. During this time insolation hours decrease
accordingly. Shorter illumination time due to one or more of the above
factors does not define the product as being ‘defective’ or ‘not as
described’. All solar lights must be used in a completely dark location
at night time otherwise they may not illuminate. Nearby strong lighting
sources or ambient lighting may affect the operation of a solar light.
This does not define the product as being 'defective' or 'not as
described'. Please note, if you do not install or use this product for
several months the battery may discharge naturally on its own. By
allowing a battery to deep discharge it may cause irreversible damage as
the battery may then lose the ability to recharge or hold a full
charge. Although unlikely, we reserve the right to supply this product
with any minor alterations or minor changes to the specifications (shown
above by text description or by photographs) due to different supplies
or product batches received, incorporating such product changes made by
the manufacturer, without further notice. Descriptions, specifications
and photographs are updated regularly but may not be current when minor
changes to a product have only recently been made.
*View our Terms, Conditions and Polices (including our Returns Policy) for further information.
