PDF DataRather than going through the expense and hassle of installing power at your sign, install a solar powered sign light system. Our lighting kits can be installed easily in any location with direct view of the sun. Our commercial grade systems are supplied with the correct size solar panel and batteries so that your system will perform as expected through the year. Price from $695.00.

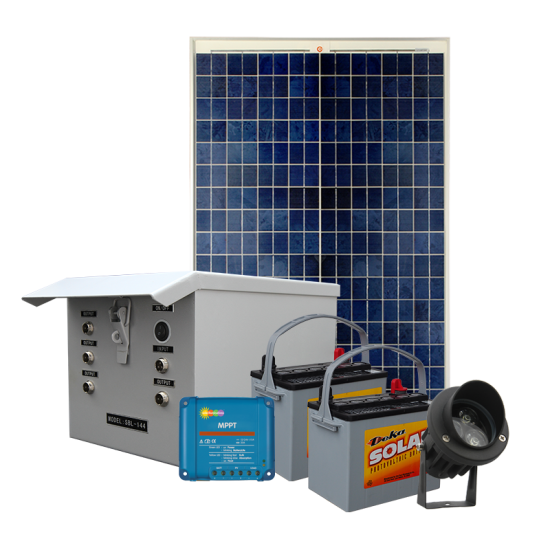

This solar sign light system is supplied with up to four spot light style light fixtures along with the necessary solar equipment. A single spot light can illuminate a single sided sign up to 6’ x 6’, and at least two spot lights are best suited for a double sided sign with the same maximum dimensions. Along with the light fixtures, the system also includes the solar panel, batteries, battery enclosure, MPPT charge controller and necessary cables. The necessary sized solar panel and batteries is dependent on the quantity of light fixtures, installation location, and required illumination period. The 3 Watt 300 lumen spot lights can be supplied in white, warm white, or RGB color temperature. Each spot light is supplied with a 18ft cable allowing you to mount the lights up to 18ft away from the battery enclosure. The solar panel is supplied with the same length of cable.
This system is designed and built by Solar Illuminations to order as a custom or semi-custom system, as per your requirements. This includes the nightly illumination time.
Refer to the zone map and system options table to determine the appropriate system for you and your location.
Please note that the installation location and desired light fixture power (Wattage) will determine the appropriate sized solar panel and batteries for your system. Please refer to the zone map and options table below, and select the correct system option from the drop down bar above.
1 - Using the map below as a reference, determine what zone your installation site is located in

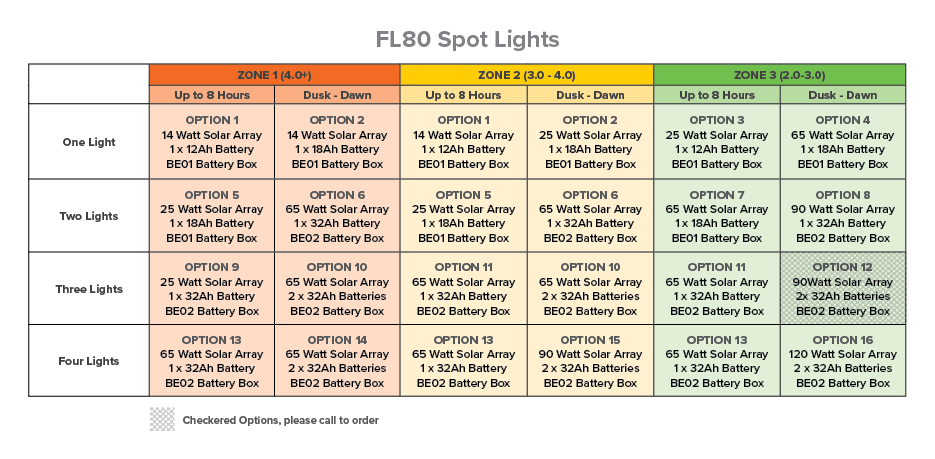

2 - Using the table below, determine what system option you should select. Choose your desired lamp power, and illumination period within your zone. The point where the two intersect will be the system option you require.
For installation sites in zone 4 or outside of the United States, please contact our sales department for system requirements and pricing. The zone map above is based on estimations and may not be accurate for all areas. For the most accurate solar panel sizing we suggest contacting our sales department. If you require a system with an illumination time other than 8 hours or dusk to dawn, please contact our sales department.
Performance
One or two spotlights included in this system.
Dusk to dawn or 8 hours illumination available.
Other timed options are available upon request.
Each light can illuminate a sign up to 6’ x 6’ (2m x 2m).
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Up to 3 nights autonomy.
Light Fixture
Supplied with up to four light fixtures.
Each light is 3 Watts and emits 300 lumens (subject to color temperature).
LED beam angle is approx. 60 degrees.
Choice of white, warm white or RGB (multi-color LED)
White LED color temperature is approx. 6000-6500K.
RGB LED provides 16 different colors, dimmable feature and color changing option.
RGB model comes complete with an IR remote control.
Each light is fitted with approximately 18' of pre-plugged cable.
Additional extension cable is available (upon request) as an option.
The light fixture is weather rated to I.P 65.
Lamp dimensions approx. 3" long x 3" diameter (8cm x 8cm).
Other LED power options available by special order e.g. 4W, 5W, 6W, 7W LED power etc.
Battery
12V DC system.
One or two deep cycle, AGM 12 Volt AGM batteries are supplied.
Required battery capacity depends on desired illumination time and quantity of light fixtures.
Battery capacity options include 12Ah, 18Ah, 32Ah, 55Ah, 79AH, etc.
GEL or lithium battery options are available by special order.
Battery Box
A plastic or metal weatherproof battery enclosure is supplied.
Model and size of battery enclosure will depend on necessary battery capacity.
Battery enclosure models include BE01 and BE02.
The battery box has a removable front which is lockable (padlock not included).
The battery box also houses the charge controller.
BE01 dimensions: 10.5" x 8" x 4.5"
BE02 dimensions: 9.9" x 15.75" x 8.9"
Solar Panel
Solar Panel
Aluminum framed glass solar panel is included.
Size and Wattage of solar panel required depends on installation location, quantity of lights, and illumination time.
Supplied with 10' (3m) of cable/cord. Additional cord is available as an optional extra.
The solar panel cable connects directly to the battery enclosure.
25W panel dimensions: 22.5" x 14" x 1"
65W panel dimensions: 34.25" x 20.13" x 1.5"
90W panel dimensions: 32.35" x 26.22" x 1.5"
100W panel dimensions: 40.25" x 26.25" x 1.5"
120W panel dimensions: 47.87" x 26.43" x 1.5">
Control Module
Supplied with a MPPT charge controller which automatically controls the solar panel power, battery charging and lighting function and operation.
An optional Bluetooth dongle can be purchased to allow access to the charge controller history and programming options.
Ultra fast Maximum Power Point Tracking (MPPT).
The MPPT charge controller is typically 30% more efficient than standard PWM controllers and 10% more efficient to most other MPPT controllers.
Additional efficiency for cloudy weather and during times of reduced sun radiation.
Provides extended battery life and extra protection against excessive battery discharge and overcharge.
Low voltage detection for automatic disconnect.
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Lighting control features illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Dimming option (where applicable) allows the lighting to dim at any time during the illumination time.
Battery voltage 12/24V dc auto select.
Rated charge current 10A/15A.
Operating temperature is -22 deg. F (-30 deg. C) to 140 deg. F (+60 deg. C).
Installation
Easy to install. All connections are simply plug & play.
The light's mounting bracket has pre-drilled holes to allow fixing using screws or bolts (not included).
The mini spotlight comes complete with a ground spike (for optional use).
Solar panel must be installed in direct sunlight throughout the day.
Solar panel should be angled at 15 degrees plus installation location.
Solar panel should not be shaded.
If above requirements can not be met, please contact our sales department for assistance.
We stand behind our lighting systems with one of the best and most comprehensive warranties in the industry. With valid warranty registration, this system is offered with a 10-year limited warranty and the solar panel with a 20-year limited warranty, in accordance with our Terms, Conditions, and Policies. Free, unlimited, lifetime technical support is offered with the warranty.
