PDF DataA solar powered sign light system can illuminate a sign quick and easily without the expense of running power to your sign. Our solar kits include all the necessary equipment for a standard installation.
This system is designed and built by Solar Illuminations to order as a custom or semi-custom system, as per your requirements. This includes the nightly illumination time.

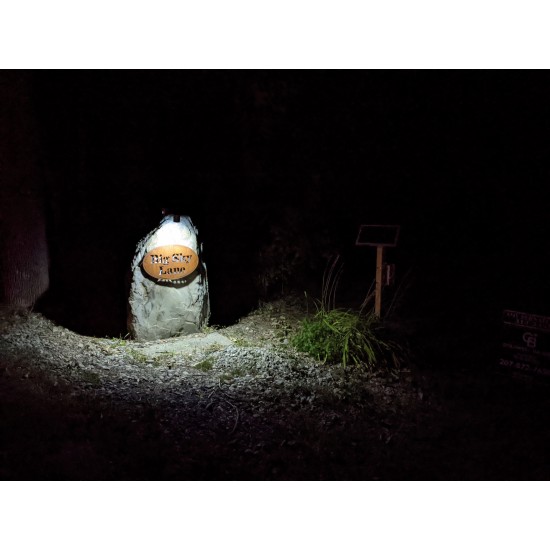

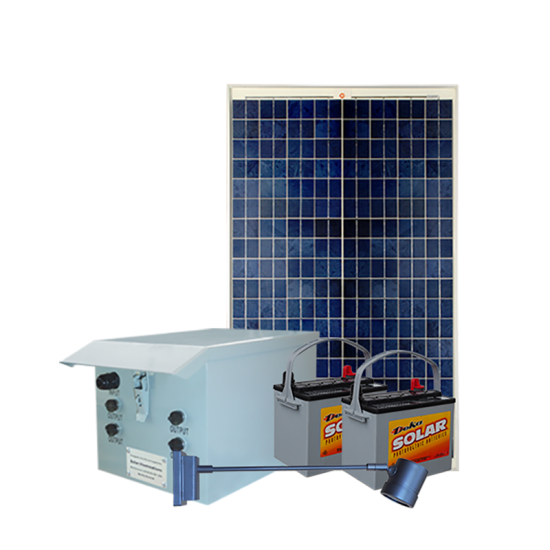

This system includes between one and four light fixtures that can be used for a single or double sided sign. The quantity of lights required will depend on the size and design of your sign. Please contact our sales department for assistance in determining the requirements for your sign. The lights are designed for installation above the sign, each fitted with a 3W 330 lumen LED light. The system includes the light fixture(s), solar panel, AGM batteries, weather-proof battery enclosure, MPPT charge controller, necessary cables and solar panel mounting triangles. Illumination time options are for up to 8 hours, or dusk to dawn. Additional illumination times are available upon request. 8 hour illumination systems can be set to a dual timer mode, providing two illumination periods during the night, totaling 8 hours. Prices from $995.00.
Please contact our sales team if you have questions about the appropriate sized solar panel and batteries for your system.
Please note that the installation location and desired light fixture power (Wattage) will determine the appropriate sized solar panel and batteries for your system. Please refer to the zone map and options table below, and select the correct system option from the drop down bar above.
1 - Using the map below as a reference, determine what zone your installation site is located in
2 - Using the table below, determine what system option you should select. Choose your desired lamp power, and illumination period within your zone. The point where the two intersect will be the system option you require.
For installation sites in zone 4 or outside of the United States, please contact our sales department for system requirements and pricing. The zone map above is based on estimations and may not be accurate for all areas. For the most accurate solar panel sizing we suggest contacting our sales department. If you require a system with an illumination time other than 8 hours or dusk to dawn, please contact our sales department.
Performance
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Each light can illuminate a sign up to 4' x 4' (1.2m x 1.2m).
Illumination options include dusk to dawn or 8 hours illumination.
Other illuminations times are available by request.
Up to 3 days of autonomy.

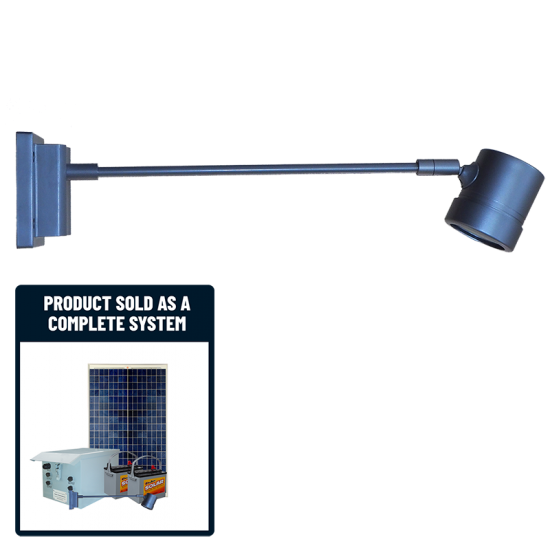

Light Fixture
Between 1 and 4 light fixtures are included in this system.
Each light is fitted with a 3W LED bulb which is fitted with 3 SMD/LEDs.
Total 330 Lumens.
LED beam angle is approx. 45 degrees.
LEDs are white 6,000k.
Light fixture color is silver.
The light fixture can be attached to almost any vertical surface (such as a wall or sign).
Each light is fitted with approximately 18' (5.5m) of pre-plugged cable ready for easy connection to the battery enclosure.
Additional extension cable is available (upon request) as an option.
The total length of the entire lamp is 19.5" (49.5cm).
The dimensions of the base are approx. 4.12" x 3.25" x 1.75" (10.5cm x 8cm x4.5cm).
The diameter of the lamp head is approx. 2.75" (6.5cm).
Battery
12 Volt DC system.
Includes a deep cycle AGM battery.
Battery capacity ranges from one 12V 12Ah battery to 2 x 32Ah batteries.
Battery capacity varies based on desired illumination time and quantity of light fixtures.
Other batteries capacities available where necessary.
GEL and lithium batteries are available by special order.
Battery Box
A BE01 or BE02 battery enclosure is included.
Each battery enclosure is weather-proof and outdoor rated.
Battery boxes have lockable lids (padlock not included).
The battery box also houses the charge controller.
BE01 is plastic construction.
BE02 is constructed from galvanized steel and a gray painted finish.
BE01 is approx. 10.5" x 8" x 5" (27cm x 20cm x 12cm) LxWxD.
BE02 is approx. 15.75" x 9.9" x 8" (25cm x 40cm x 22.5cm) LxWxD.
Solar Panel
High quality aluminum framed solar panel is included.
Required solar panel Wattage / size depends on installation location, illumination time, and quantity of lights.
Solar panel sizes range from 20 Watts to 100 Watts.
Each solar panel is includes approx. 9 feet of cable. Additional cord is available as an optional extra.
The solar panel cable connects directly to the battery enclosure.
20 Watt solar panel support is supplied with a fold-out 'U' shape bracket which can be used to mount it to a suitable surface.
65 Watt and higher solar panels are supplied with mounting triangles.
20W panel dimensions: 13.88" x 22.63" x 1"
65W panel dimensions: 34.25” x 20.13” x 1.5”
90W panel dimensions: 35.24” x 26.38” x 1.5”
125W panel dimensions: 47.87” x 26.37” x 1.5”
Control Module
Supplied with a MPPT charge controller which automatically controls the solar panel power, battery charging and lighting function and operation.
An optional Bluetooth dongle can be purchased to allow access to the charge controller history and programming options.
Ultra fast Maximum Power Point Tracking (MPPT).
The MPPT charge controller is typically 30% more efficient than standard PWM controllers and 10% more efficient to most other MPPT controllers.
Additional efficiency for cloudy weather and during times of reduced sun radiation.
Provides extended battery life and extra protection against excessive battery discharge and overcharge.
Low voltage detection for automatic disconnect.
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Lighting control features illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Dimming option (where applicable) allows the lighting to dim at any time during the
illumination time.
Battery voltage 12/24V dc auto select.
Rated charge current 10A/15A.
Operating temperature is -22 deg. F (-30 deg. C) to 140 deg. F (+60 deg. C).
Installation
All connections are simply plug & play.

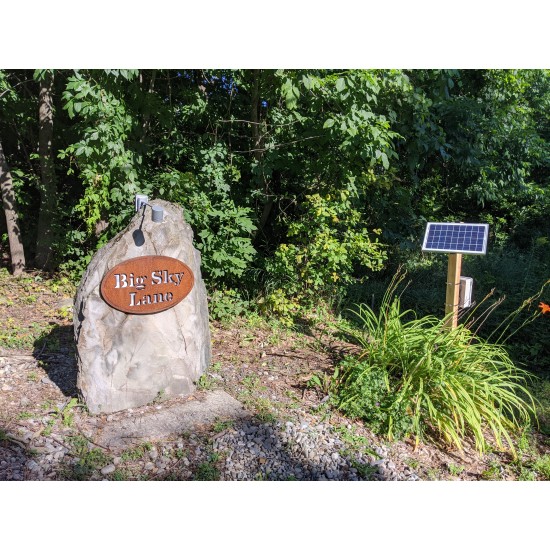

Install solar panel in a location it will receive full direct sun light.
System requirements are based on solar panel angled at 15 degrees plus installation latitude.
We stand behind our lighting systems with one of the best and most comprehensive warranties in the industry. With valid warranty registration, this system is offered with a 10-year limited warranty and the solar panel with a 20-year limited warranty, in accordance with our Terms, Conditions, and Policies. Free, unlimited, lifetime technical support is offered with the warranty.
