FL48 Solar 144 LED Sign Light Bar System (2 to 4 Fixtures)

FL48 Solar 144 LED Sign Light Bar System (2 to 4 Fixtures)

Brand: Solar Illuminations
Product Code: FL48 Sign Light
Availability:
In Stock
Price From: $1,089.99

Available Options





Description

This complete system includes two 144 LED light bars. Multi-purpose usage for internal or external sign lighting. Supplied as a complete kit including solar panel, batteries, MPPT charge controller, and all other required components. Will typically operate dusk to dawn in most favorable locations.

This kit consists of two weather proof 144 Cree LED light bars, each producing 864 lumens. The system will typically illuminate dusk to dawn. If installed in a location that experiences harsh winter weather, or low sun levels, a higher powered solar panel may be required. The kit is supplied with two light bars, a metal battery box, a MPPT charge controller, a 90 Watt solar panel along with mounting brackets, and two 12 Volt rechargeable batteries. The battery box can be locked with a padlock (not supplied), and is fitted with outlets for the lamps and solar panel to easily connect to. An on/off switch is supplied, when left in the on position the system will automatically turn on at sunset and illuminate until the programmed amount of time. The charge controller can be programmed to illuminate from dusk to dawn, turn off after a certain amount of hours, or it can use a dual timer option. The dual timer allows the light to activate at dusk and illuminate for X hours, switch off, and then turn back on for X hours prior to sunrise. The solar panel and light fixtures are supplied with several feet of cable so that they can be installed a distance away from the battery box if required. The entire is system is simple plug & play installation. Color of product is white. Color of other parts of the system are grey. Color of light output is white.

Popular Uses

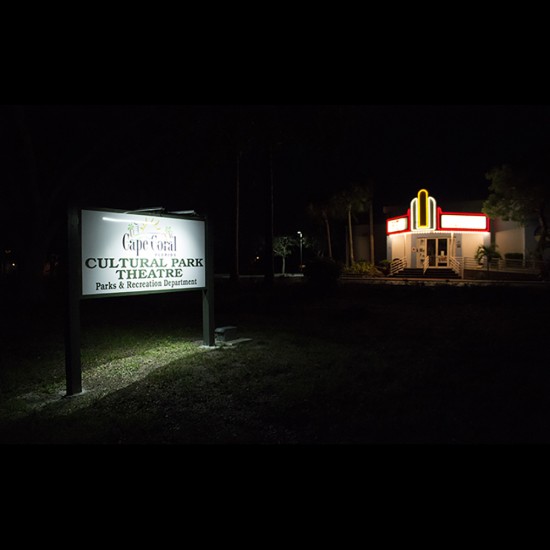

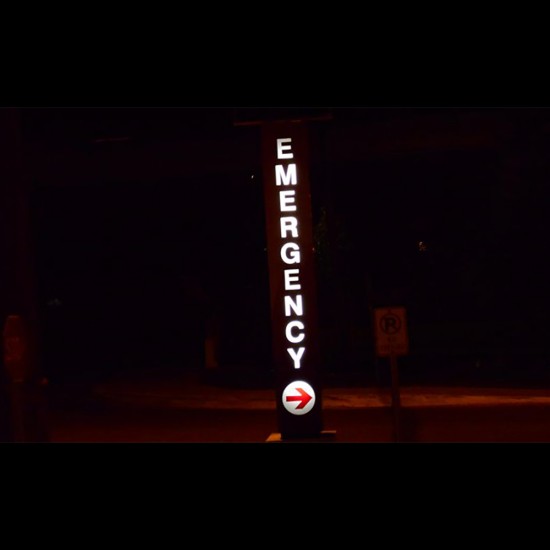

Perfect for use where electricity is unavailable or where it is too expensive to install, or for sites where an environmentally friendly solution to sign lighting is required. This system can be used for numerous types of signs, notice boards, information kiosks, site boards, directional signs and traditional signage. It can be wall mounted or installed within signage such as box signs, cabinet signs, trough signs and other similar applications.

Technical Specifications


Performance
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Typically illuminates dusk to dawn.
Up to 24 hours of autonomy subject to time length of night time illumination.
Each light can illuminate a sign up to 12’ x 12’ (3.5m x 3.5m).

Light Fixture
Supplied with two weatherproof LED light bar fixtures.
144 hyper- bright LED's within each light bar.
Each LED provides 6 Lumens at source. Total 864 Lumens.
1728 Lumens total with both light bars in use.
The LED light bars are replaceable if required and have a typical lifespan of over 50,000 hours.
The weather resistant LED light bars have approx. 48' (14.5m) of pre-wired cable which is pre-plugged ready for easy connection to the battery box.
The LED light bars are weather rated to I.P 65. and are supplied with mounting brackets.
The LED light bar is approx. 3' 3" x 1" x 1" (100cm x 2.5cm x 2.5cm) LxWxD.

Battery Box
A remote battery box is supplied to accommodate the batteries.
The battery box has a hinged lid which is lockable (padlock not included).
The battery box has an integral battery shelf and also houses the programmable control module.
The battery box also has two sockets for each LED light bar fitting to be connected.
The battery box is approx. 13" x 9.75" x 9" (33cm x 24.5cm x 23cm) LxWxD.

Battery
24 Volt dc system.
Two, high capacity 12 Volt 32 Amp-Hr sealed lead acid batteries.
Larger capacity battery options may be available. For help determining whether a larger battery is necessary, please contact our customer service department.
Larger capacity batteries will require a bigger battery box.
Batteries must be connected together in series.

Solar Panel
Aluminum framed, 90 Watt solar panel is included.
Higher powered solar panel options may be available. For help determining whether a solar panel upgrade is necessary, please contact our customer service department.
Approx. 18' (5.5m) of pre-wired connection cable is supplied and attached to the battery box for connection to the solar panel.
Mounting triangles are supplied to allow for installation to flat veritcal or horizontal surfaces.
The 90W solar panel dimensions approx. 40.25" x 26.25" x 1.5" (112.2cm x 66.9cm x 3.5cm) LxWxD.

Charge Controller
Supplied with a MPPT charge controller which automatically controls the solar panel power, battery charging and lighting function and operation.
Ultra fast Maximum Power Point Tracking (MPPT).
The MPPT charge controller is typically 30% more efficient than standard PWM controllers and 10% more efficient to most other MPPT controllers.
Additional efficiency for cloudy weather and during times of reduced sun radiation.
This controller features the very latest smart technology.
Provides extended battery life and extra protection against excessive battery discharge and overcharge.
Battery life algorithm operates 24/7.
Low voltage detection for automatic disconnect.
Continuous environment, input and output power management.
The controller is sized to the system specifications with 10A and 15A versions available (subject to solar panel wattage and battery capacity).
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Lighting control features illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Dimming option (where applicable) allows the lighting to dim at any time during the illumination time.
The dimming option or any other illumination mode can be used in conjunction with motion activation (where applicable).
Dimming may be at any percentage from 1-99%.
Supports real time data monitoring (iPhone, Andriod, Mac or PC) with optional interface and/or Bluetooth dongle.
Battery voltage 12/24V dc auto select.
Rated charge current 10A/15A.
Maximum PV power (12V dc) is 135W at 10A and 200W at 15A.
Maximum PV power (24V dc) is 270W at 10A and 400W at 15A.
Maximum PV open circuit is 75V dc.
Peak efficiency is 98%.
Charge voltage (absorption) is 14.4V dc.
Charge voltage (float) is 18.8V dc.
Multi stage adaptive charge algorithm.
Automatic temperature compensation.
Low voltage load disconnect at 11.1V dc to 11.8V dc (12v dc system) or 22.2V dc to 23.6V dc (24V dc system) or battery life algorithm.
Low voltage load reconnect at 13.1V dc to 14V dc (12V dc system) or 26.2V dc to 28V dc (24V dc system).
Protection feature includes battery reverse polarity (fuse), output short circuit and over temperature.
Operating temperature is -22 deg. F (-30 deg. C) to 140 deg. F (+60 deg. C).
Humidity up to 95%, non condensing.
Power terminals are AWG 10 (6mm2).
Protection rating IP22 (connection terminal area).
Weight is 500g (1.1 Lbs).
Dimensions are approx. 4” x 4” x1.5” (10cm x 10cm x 4cm).
Please note: Upon installation and power-up the controller goes into a 7 day evaluation mode where smart monitoring and configurations commence. Additional evaluation with self-managing adjustments may continue for up to 7 more days. This is all part of the smart feature that enables this intelligent controller to understand its use, the application, the surrounding environment and the current conditions. During this time some of its programmed features may differ temporarily. This is a perfectly normal process and must be accepted during that time. During this time the controller will adjust to the current condition and charge status of the batteries. It is therefore recommended that all batteries are 100% fully charged before connection using an appropriate battery charger. This may significantly reduce the evaluation mode time of 7+7 days to much less. The solar panel(s) should be connected to the MPPT charge controller first, followed by the fully charged batteries.

Installation
Easy to install. All connections are simply plug & play.
Two special mounting frames are included to allow the solar panel to attach to a vertical or horizontal surface with two hole pre-drilled into each section of the frame.
A pair of triangle shaped support frames are supplied for the solar panel.

Remarks


20 year solar panel warranty, 5 year warranty on all other components (excluding batteries). Batteries are covered by the manufacturer.* Warranty registration is required (after purchase), otherwise a base one year warranty will apply. Go to www.solarilluminations.com/registration to register your warranty.
Lifetime unlimited technical support.

Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.

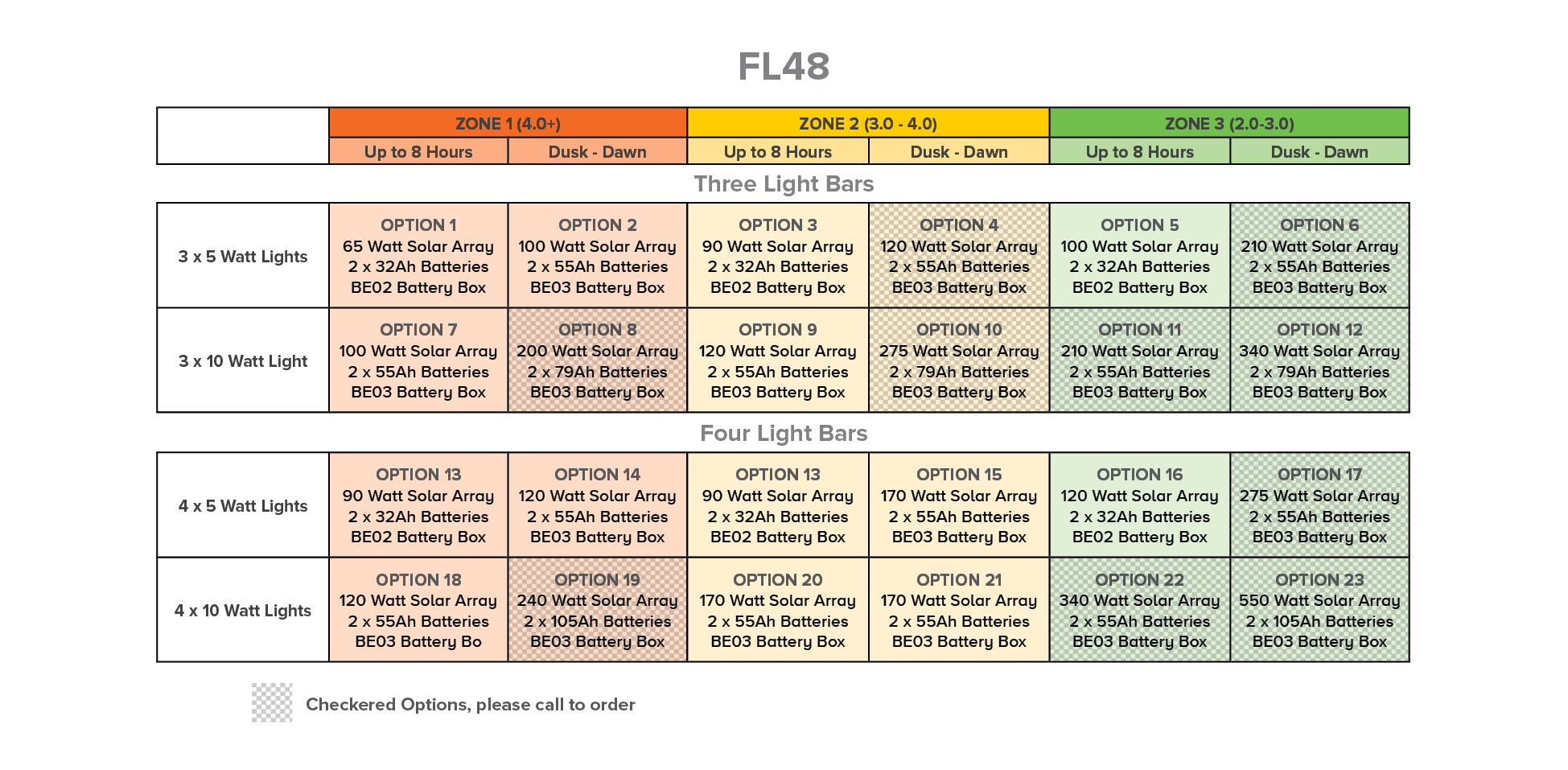

The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.

* View our Terms, Conditions and Polices (including our Returns Policy) for further information.

Specification
Solar Lights Data
Price $1089.99
Lumen Output 864 Lumens per lamp. 1728 Lumens total.
Equivalent Incandescent Wattage Approx. 200 Watts per lamp. Approx. 400 Watts total.
Approximate Illumination Time Typically dusk to dawn.
Approximate Sign SIze Up to 12' x 12' (3.5m x 3.5m) per lamp.
Solar Panel Wattage 90 Watt.
Programable Controller Yes.
