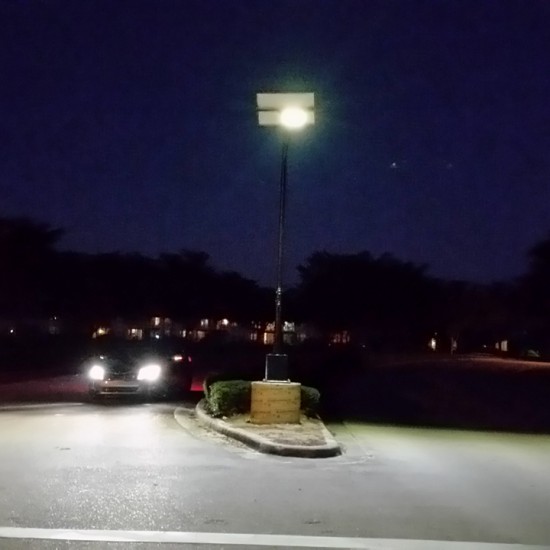

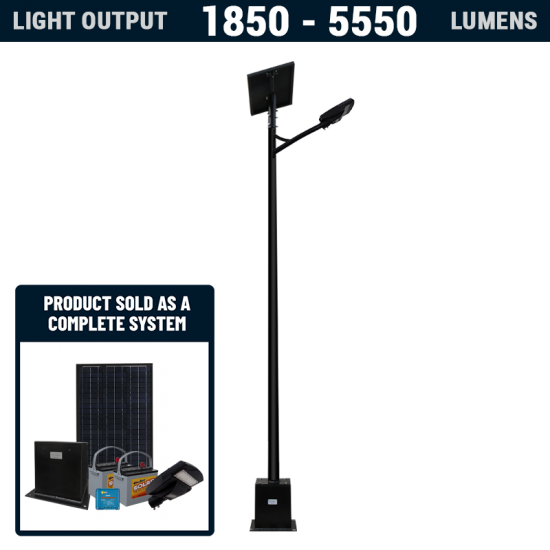

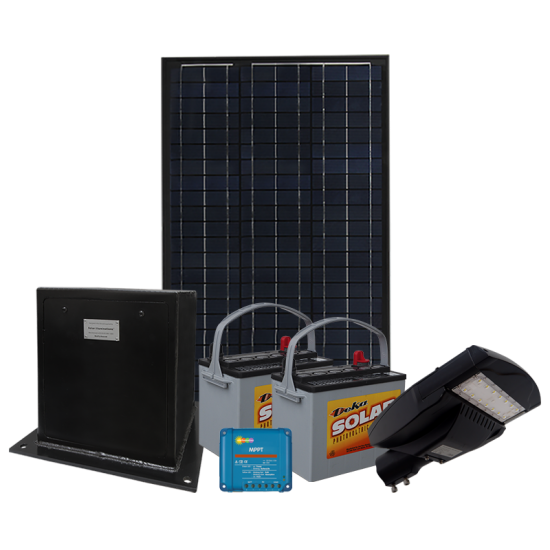

This model is perfect if you are looking for an attractive looking solar street or parking lot light and require the full functionality of a conventional fixture. Sold as a complete system, with pole and choice of LED power from 10W (1,850 Lumens) to 30W (5,550 Lumens). Choice of lighting distribution pattern (Type I, II, III, or V). Ideal for small parking lots, communities, malls, courtyards, HOA's, parks, outdoor mail box areas etc. Prices from $2,099.99.
Available with a choice of LED lamp. The options are 10W (1,850 Lumens), 15W (2,775 Lumens), 20W (3,700 Lumens), 25W (2,980 Lumens) or 30W (5,550 Lumens). Alternative power options are available by special order from 1W to 30W in any 1W increment. A choice of solar panel is also available. The solar panel Wattage would be matched to the LED power, illumination time required and the geographic location of the installation. A heavy duty battery box is included which houses two large 12V batteries. The battery box forms the base of the pole and requires bolting down to a suitable concrete pad (anchor bolts and templates included). Once the pole is attached to the battery box the entire height is about 17'. The solar panel attaches to the top of the pole and can be adjusted 360 degrees and rotated to an appropriate angle for the location. In most instances the system is capable of operating from dusk to dawn. A high performance MPPT charge controller is included and is housed within the battery box. This controller allows the options of dusk to dawn, a single timed mode or a dual timed mode. Dimming the lamp during the night for X amount of hours is an option. For single timed mode the lamp will come on at dusk automatically and operate for X amount of hours then turn off. For dual timed mode the lamp will automatically come on at dusk and run for X amount of hours. It will then turn off, then turn back on again for X amount of hours before dawn. This system is has the option of being motion sensor activated, if required. There is a choice of LED color temperature available from 2700k to 6500k plus special turtle friendly versions too.
STARTING PRICE $2,099.99. THE FINAL COST OF A SYSTEM IS DETERMINED BY SEVERAL FACTORS INCLUDING THE LED POWER REQUIRED, THE GEOGRAPHIC LOCATION OF THE INSTALLATION SITE, AND THE NIGHTLY ILLUMINATION TIME REQUIRED, ETC.
Performance
Manufactured in an ISO9001:2000 'Quality Assured' facility.
Special control system to prevent over-charging and over-discharging.
Typically dusk to dawn illumination (subject to geographic location, LED Wattage and solar panel Wattage selected).
Up to 3 days autonomy (reserve power) to allow for successive cloudy weather and days without sunshine (subject to the specification of the system selected).
Light Fixture
Supplied with a single lampshade unit.
Low profile design with minimal wind resistance.
Features a fully adjustable tenon which can rotate 90 degrees at 15 degree intervals.
Can be supplied with a Type I, II, III, IV or V lighting distribution pattern.
Choice of LED color temperature (warm white, daylight white, or cool white). Daylight white is standard.
Warm white is approx. 3800~4100k.
Daylight white is approx. 5000~5650k.
Cool white is approx. 5650~6300k.
Other
LED color temperatures are available upon request, or by special order,
from 2700k to 6500k and also turtle friendly yellow.
Lumen tolerance +/- 5%.
The 10 Watt lamp unit provides 1,850 Lumens.
The 15 Watt lamp unit provides 2,775 Lumens.
The 20 Watt lamp unit provides 3,700 Lumens.
The 25 Watt lamp unit provides 4,625 Lumens.
The 30 Watt lamp unit provides 5,550 Lumens.
LED life is typically up to 100,000 hours or equal to about 22 years.
Fixture attaches to the lamp support arm which in turn attaches to the pole.
Anodized aluminum construction with toughened glass.
Black colored anti-static powder coated finish.
Stainless steel hardware.
IP66 weather rating.
LED beam angle is 140 deg. (horizontal) x 65 deg. (vertical).
CRI is >75
Certifications CE, FCC, RoHS, CB, TUV, CCC, CQC. UL listed, cULus, ETL, DLC, cETLus, Designlights Consortium, LM79, LM80.
The light fixture is approx. 17" x 12.5" x 5.5" (43cm x 31cm x 13cm) L x W x D.
The light fixture weighs approx. 11.5 lbs (5.3 kgs).
Tenon internal diameter is approx. 2.4" (6cm).
Battery
24V DC systems use two 12V sealed lead acid, AGM or GEL type rechargeable batteries.
Battery capacity is subject to the specification of the system selected.
Battery capacity options are 18 Ah, 32 Ah, 55 Ah per battery.
Battery dimensions vary subject to battery capacity. Battery weight will vary subject to battery capacity. All sizes shown above will fit inside the battery box.
Typical battery life is approximately 3-5 years subject to environmental factors.
Alternative battery types, capacities and sizes may be available upon request.
Higher capacity batteries may be required for more demanding applications and/or locations with lower insolation.
Solar Panel
Highly efficient polycrystalline solar panel.
Aluminum frame with anti-aging and encapsulated.
Low reflecting tempered glass.
The solar panel is supplied with a support frame and hardware to attach to the top of the pole.
The hardware includes a steel tenon that is approximately 50cm (16") and will therefore increase the total height of the pole.
Wattage of solar panel is subject to the specification of the system and the solar panel wattage has no effect on the illumination output of the lamp.
Wattage available include 90W, 100W, 180W, and 200W.
Standard stocked panels are 90W and 180W.
90W & 100W solar panel dimensions are approx. 40.25" x 26.25" x 1.5" (112cm x 99cm x 3.5cm) LxWxD.
Solar panels can be supplied in a dual format (2 x 90W = 180W, 2 x 100W = 200W.)
Typical solar panel life is approximately 20-25 years subject to environmental factors.
The geographic location of the street light may affect the size/wattage of the solar panel required.
A higher wattage solar panel may be required for more demanding applications and/or locations with lower insolation.
Arm
Galvanized steel arm to accommodate the lampshade.
Attaches to the street light pole.
Satin black colour finish. Custom colors by special order only.
Post / Pole
Galvanized steel pole which attaches to the top of the battery box cabinet.
Pole has a square flat base (flat plate) with pre-drilled holes for bolting directly to the battery box cabinet.
Fixing bolts are included.
Wind load rating for pole is 140 MPH with a 1.3 gust factor.
Pole height is approx. 13' (4 metres). Custom height pole by special order only.
Pole attaches to battery box cabinet and solar panel support frame attaches to top of pole. Total height of pole is approx. 16' (5 metres) when assembled.
Satin black color finish. Custom colors by special order only.
Battery Box
Galvanized steel battery box accommodates the rechargeable batteries and control module.
Pre-drilled holes in the battery box cabinet base enable secure installation.
The pole attaches to the top of the battery box.
Satin black color finish. Custom colors by special order only.
Battery box is approx. 14” x 14” x 17” (35cm x 35cm x 43cm) LxWxH.
Two templates for setting the fixing bolts into new, wet concrete are included.
The templates for aligning the anchors are approx. 17 3/4" x 17 3/4" (45cm x 45cm).
The bolt pattern (diagonal distance from one hole center to another) is approx. 22 3/16" (56cm).
The 4 pre-drilled holes on each template are approx. 5/8" (1.5cm) diameter.
Control Module
Supplied with a MPPT charge controller which automatically controls the solar panel power, battery charging and lighting function and operation.
Ultra fast Maximum Power Point Tracking (MPPT).
The MPPT charge controller is typically 30% more efficient than standard PWM controllers and 10% more efficient to most other MPPT controllers.
Additional efficiency for cloudy weather and during times of reduced sun radiation.
This controller features the very latest smart technology.
Provides extended battery life and extra protection against excessive battery discharge and overcharge.
Battery life algorithm operates 24/7.
Low voltage detection for automatic disconnect.
Continuous environment, input and output power management.
The controller is sized to the system specifications with 10A and 15A versions available (subject to solar panel wattage and battery capacity).
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Lighting control features illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Dimming option (where applicable) allows the lighting to dim at any time during the illumination time.
The dimming option or any other illumination mode can be used in conjunction with motion activation (where applicable).
Dimming may be at any percentage from 1-99%.
Supports real time data monitoring (iPhone, Android, Mac or PC) with optional interface and/or Bluetooth dongle.
Battery voltage 12/24v dc auto select.
Rated charge current 10A/15A.
Maximum PV power (12v dc) is 135W at 10A and 200W at 15A.
Maximum PV power (24v dc) is 270W at 10A and 400W at 15A.
Maximum PV open circuit is 75v dc.
Peak efficiency is 98%.
Charge voltage (absorption) is 14.4v dc.
Charge voltage (float) is 18.8v dc.
Multi stage adaptive charge algorithm.
Automatic temperature compensation.
Low voltage load disconnect at 11.1v dc to 11.8v dc (12v dc system) or 22.2v dc to 23.6v dc (24v dc system) or battery life algorithm.
Low voltage load reconnect at 13.1v dc to 14v dc (12v dc system) or 26.2v dc to 28v dc (24v dc system).
Protection feature includes battery reverse polarity (fuse), output short circuit and over temperature.
Operating temperature is -22 deg. F (-30 deg. C) to 140 deg. F (+60 deg. C).
Humidity up to 95%, non condensing.
Power terminals are AWG 10 (6mm2).
Protection rating IP22 (connection terminal area).
Weight is 500g (1.1 Lbs).
Dimensions are approx. 4” x 4” x 1.5” (10cm x 11cm x 4cm).
Please note: Upon installation and power-up the controller goes into a 7 day evaluation mode where smart monitoring and configurations commence. Additional evaluation with self-managing adjustments may continue for up to 7 more days. This is all part of the smart feature that enables this intelligent controller to understand its use, the application, the surrounding environment and the current conditions. During this time some of its programmed features may differ temporarily. This is a perfectly normal process and must be accepted during that time. During this time the controller will adjust to the current condition and charge status of the batteries. It is therefore recommended that all batteries are 100% fully charged before connection using an appropriate battery charger. This may significantly reduce the evaluation mode time of 7+7 days to much less. The solar panel(s) should be connected to the MPPT charge controller first, followed by the fully charged batteries.
Interconnecting Cabling
Connection wiring between the battery box, solar panel and lamp unit is included.
Remarks
We stand behind our lighting systems with one of the best and most comprehensive warranties in the industry. With valid warranty registration, this system is offered with a 10-year limited warranty and the solar panel with a 20-year limited warranty, in accordance with our Terms, Conditions, and Policies. Free, unlimited, lifetime technical support is offered with the warranty.
Please Note:
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
Any concrete work required to facilitate the installation of a pole should not be conducted until all materials have been supplied and have been inspected and verified as being correct and suitable. Solar Illuminations does not accept any responsibility whatsoever for any works carried out in advance, including (but not limited to) ground, excavation, or civil works, pouring or creation of any concrete, cement, etc.
The product specifications above should be used as a general guide. We can offer modifications and changes to the specifications of this product if necessary. This may be required to meet your specific needs and/or due to the geographic location of the installation site. In locations where insolation levels are poor or lower than normal, a higher wattage solar panel and larger capacity batteries may be required. We offer product customization. MPPT, dual timer and dimming charge controllers are all available as optional extras. One or more motion sensors can also be added as an optional extra. Other options included UL listed or ETL certified components and the provision of Buy American Act (BAA & ARRA) compliance, if required. Photometric data, 3D renderings and planning of your lighting project is available. Please contact our sales department for more information before making your purchase.
