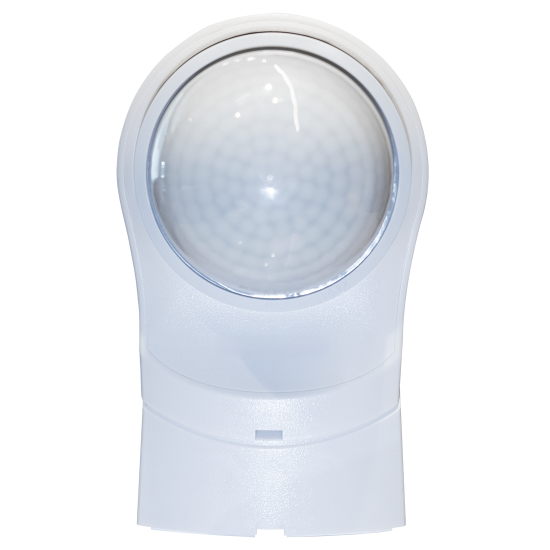

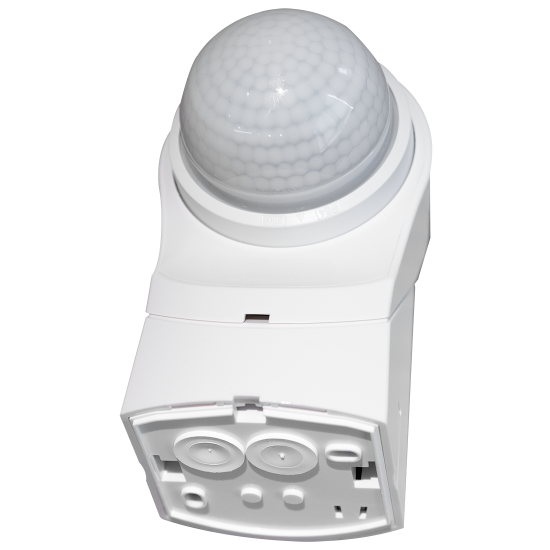

For use indoor or outdoor, this weatherproof, low voltage, 12~36V DC motion sensor has a switching capacity of up to 10A. It's a solid option for use with lights up to 120 watts (12V DC) or 240 watts (24V DC). Perfect for solar lighting systems. This is a commercial grade, high performance, long range, wide angle, passive infra-red (PIR) motion detector.
Technical Specifications
Performance
Motion Detector for 12V~36V DC low voltage lighting systems.
Ideal for solar lighting systems.
10A max switching load (up to 120W at 12V DC or up to 240W at 24V DC).
Detection range is up to approx. 140' (40M) diagonally.
Detection range is up to approx. 52' (16M) head-on.
Detection range is up to 20' (6M) in creep zone.
Detection angle is up to 230 degrees with two zones of 115 degrees (adjustable separately).
360 degree creep zone.
Operating voltage is 12V DC~36V DC.
Adjustable lux level from 2~2,500 lux. Programmable daytime operation possible.
Timer control is from 15 seconds to up to 30 minutes (adjustable).
Standby power consumption is 0.3W

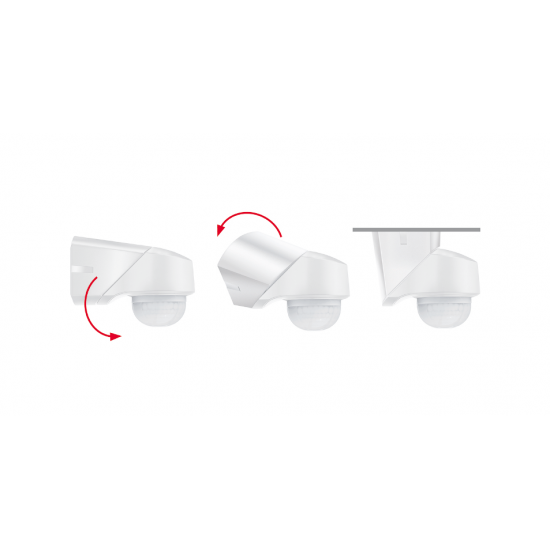

Includes multi position mounting bracket.
Can be ceiling or wall mounted.
Mounting height between 6.5' to 10' (8' (2.5M) recommended).

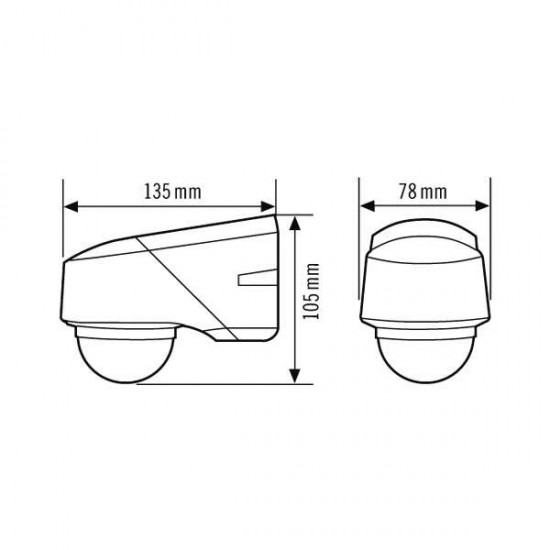

Dimensions are approx. 4" x 3.5" x 3" (135mm x 105mm x 78mm)
Operating temperature is -13 deg. F ~ +131 deg. F (-25 deg. C ~ +55 deg. C).
I.P. 54 weather rated.
CE marked and RoHS certified.
Lens mask included.
Made in Germany.
Some features of this motion detector are pre-programmable by Solar Illuminations. Contact us for further information.
Remarks
One year warranty*.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
