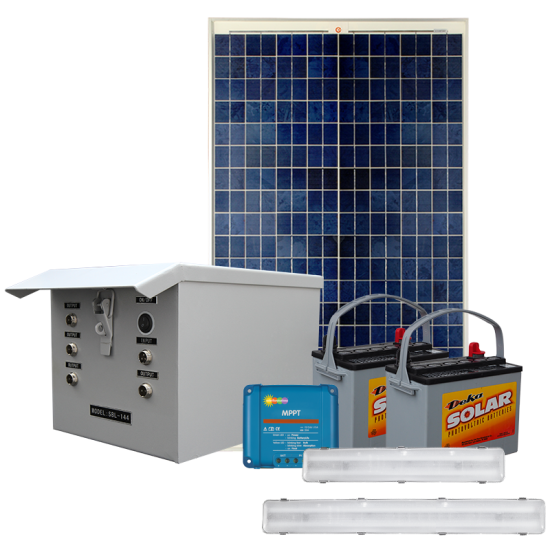

PDF DataThis is a professional, commercial grade, solar powered indoor lighting system. It is perfect for locations where electricity is unavailable or too expensive to install. Supplied as a complete system with choice of LED power and fixture quantity, etc. Price from $995.00.
This weather-poof, vandal resistant indoor lighting system has several options for you to choose from. We offer this system with a choice of LED power. Select 5W, 10W, 15W, or 20W. This system is available with one or two light fixtures. Light fixtures are 2 ft long as standard, but 4 ft light fixtures are available upon request. Each fixture produces from 690 to 2,640 lumens depending on the chosen LED power. These fixtures are surprisingly bright, and many structures can be well lit with just one 5W or 10W fixture or a pair of 5W fixtures depending on the application and requirements. The LED color temperature can be selected by the user or installer using the internal dipswitch selector. Choose from warm white to daylight white (3,000k, 4,000k, or 5,000k). This system is supplied complete and includes the light fixture(s), two, large capacity, 12V AGM rechargeable batteries, a metal lockable battery enclosure, an MPPT charge controller, and a choice of solar panel along with standard mounting hardware. The comprehensive light control system allows for extensive configuration, including dynamic activation and optional dimming. Lighting activation is controlled by the charge controller and solar panel. The charge controller can be pre-programmed for automatic dusk to dawn illuminations or a choice of single or dual timed modes. As an option, it is also possible to incorporate one or more motion detectors into these systems. The solar panel and light fixtures are supplied with several feet of cable as standard, so they can be mounted away from the battery box if needed. Additional cord can be purchased as a custom order. The entire system is designed to be easily installed with pre-plugged cords and/or quick connectors. Color of product is gray. Color of other parts of the system is gray. Color of light output is white.
Popular Uses

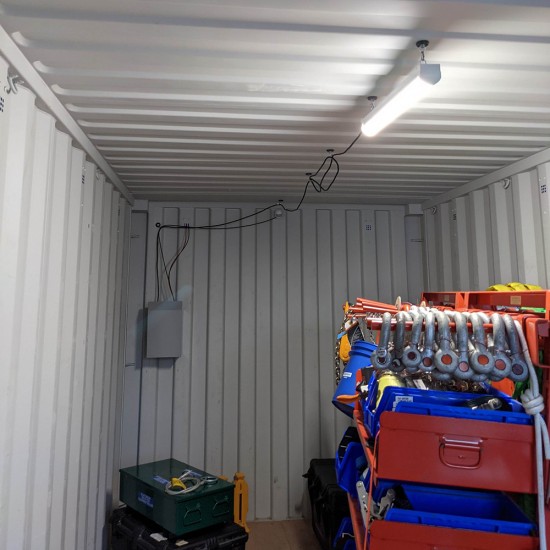

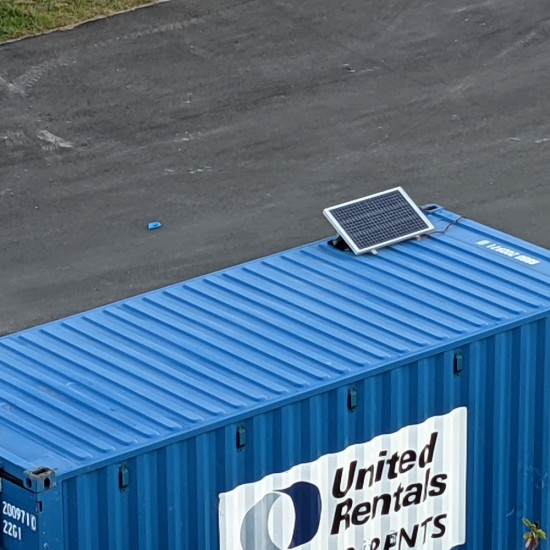

Can be used in most types of structures, such as bus shelters, cabins, sheds, workshops, storage areas, gazebos, pavilions, kiosks, summer houses, garages, arbors, yurts, shipping containers, covered mailboxes, or any other similar applications.
As this is a custom-built solution, it can be designed as per your requirements. This includes the nightly illumination time. The system can be designed and pre-programmed to automatically operate at dusk and turn off at dawn all year round. This could be up to 15 hours or more allowing for the longest night of the year (December 21st). Or the system can be designed and pre-programmed to automatically to operate on a single or dual timed mode for 8 hours total. A single timed mode would provide automatic illumination at dusk for x number of hours and then turn off. A dual timed mode would provide automatic illumination at dusk for x number of hours, then turn off, then turn back on again for x number of hours before dawn. Other timed options and configurations are available upon request. When placing an online order for an 8-hour program please specify the type of mode and hours of operation during checkout int he comments section.
Please note, the specifications of this solar indoor lighting systems are determined by several factors. These factors include the geographic location of the installation site, the total LED power (Wattage), and the total number of hours of operation. It's these factors that determine the solar panel wattage and the battery capacities and some of the other components required to create the entire system.
Please refer to the colored USA zone map and options table below. Then, select the appropriate FL17 system option from the drop-down menu above. Pricing is based on the system specifications.

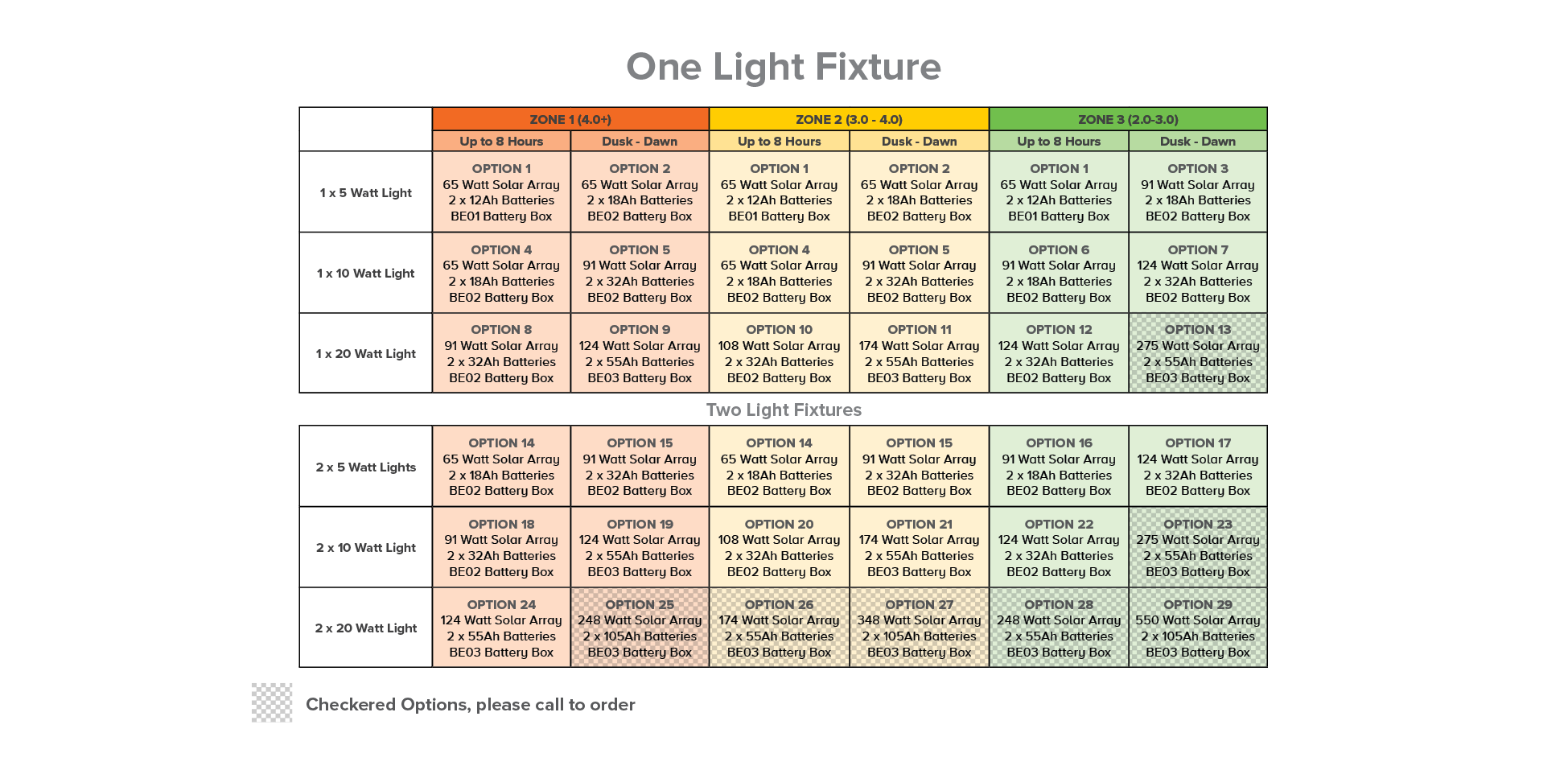

1 - Using the map below as a reference, determine what zone your installation site is located in
2 - Using the table below, determine what system option you should select. Choose your desired lamp power, and illumination period within your zone. The point where the two intersect will be the system option you require.
For installation sites in zone 4 or outside of the United States, please contact our sales department for system requirements and pricing. The zone map above is based on estimations and may not be accurate for all areas. For the most accurate solar panel sizing we suggest contacting our sales department. If you require a system with an illumination time other than 8 hours or dusk to dawn, please contact our sales department.
Performance
Illumination period can be designed subject to project requirements.
Nightly illumination time is subject to lamp power selection, quantity of lamps per system, solar panel selection, and battery capacity selection for a given location.
Please consult with our engineers for specific component recommendations.
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Light Fixture
Luminaire power consumption is adjustable from 5 to 20 Watts.
Light output is from 690 to 2,640 lumens per fixture.
Offered with a standard power consumption of 5, 10, 15, or 20 Watts.
LEDs are powered with a Mean Well® driver and include optional PWM dimming control.
The LED color temperature can be selected by the user or installer using the internal dipswitch selector.
Choose from warm white to daylight white (3,000k, 4,000k, or 5,000k).
LED life is typically up to 100,000 hours or equal to about 22 years.
These enclosures meet IEC Standards, and are IP66 rated.
All enclosures are UL Listed US and CA.
Offered as a 2’ long or 4’ long vaporproof enclosure.
2’ light fixture dimensions are approx. 26” x 4” x 3.5” (66cm x 10cm x 9cm) LxWxD.
4’ light fixture dimensions are approx. 52” x 4” x 3.5” (120cm x 10cm x 9cm) LxWxD.
Vandal resistant polycarbonate construction.
Battery
System supplied standard with two 12 Volt batteries.
Batteries are wired in series to make a 24 Volt system.
Standard battery capacity options available: 2x 18AH AGM, 2 x 32AH AGM, or 2x 32AH Gel. Higher capacity batteries available by special order.
Please consult our engineers for specific battery capacity requirements per your system configuration and performance requirements.
Classified as Non-spillable (defined by DOT, ICAO and IATA), NonHAZMAT, and valve regulate.
Conforms to ISO9001, ISO/TS 16949, and ISO14001 standards.
Typical battery life is approximately 3 to 5 years, subject to environmental factors.
Battery Enclosure
Galvanized steel lockable battery enclosure will accommodate the rechargeable batteries and charge controller (padlock not included.)
Designed to conform to NEMA 3R and IP22 rating standards for Outdoor Enclosures. Offering protection against rain, snow, and sleet. Meets the requirements of UL 508 “Rainproof enclosures”.
The battery enclosure can be mounted on to the structure or to a pole with optional pole mount hardware, depending installation preference and battery capacity.
The battery box has pre-drilled holes to enable secure installation to a horizontal or vertical surface.
Battery Enclosures: galvanized/painted steel (Standard); aluminum (Special Order), or stainless steel (Special Order).
Battery enclosure size varies based on required battery capacity.
Solar Panel
Range of solar panel power available from 45W to 100W. More powerful panels available by special order.
Please consult with our engineers for specific solar power recommendations. The solar panel power requirements are subject to LED consumption, installation location, and preferred illumination period.
The solar panels supplied are highly efficient monocrystalline or polycrystalline solar panels with aluminum frame, anti-aging, and encapsulated membrane.
Anti-reflective and anti-soiling surface that reduces power losses from dirt and dust.
Certified to withstand high wind loads (340PSI) and snow loads (780PSI); and resistance to high salt and ammonia.
Manufactured to international standards, verified and certified by independent testing laboratories. (UL, ETL, IEC, MCS, and TUV)
Assembled to strict quality control standards; international standards ISO 9001 and ISO 14001.
Typical solar panel life is over 30 years, subject to environmental factors.
Approx. 18' (5m) of pre-wired connection cable is supplied.
Extension cables are available if required.
Control Module
Supplied with a MPPT charge controller which automatically controls the solar panel power, battery charging and lighting function and operation.
The MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers. Especially in the case of cold cloudy winter weather, when light intensity is changing continuously.
Offers full programmability of load output: dusk to dawn, multi-timed mode, and integrated diming (all standard features).
Intelligent battery management software is used to protect the battery from being excessively discharged. The controller will monitor the state of charge on the battery, and if needed, day by day slightly increase the load disconnect level (i. e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100% at least once a week. Allowing for the longest life possible from the batteries.
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Lighting control features illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Dimming option (where applicable) allows the lighting to dim at any time during the illumination time.
The dimming option or any other illumination mode can be used in conjunction with motion activation (where applicable).
Dimming may be at any percentage from 0-100%.
Supports real time data monitoring, 30 day performance history, and user programmability from Apple or Android smartphones, tablets, etc. Use of this feature requires the optional MPPT Bluetooth Dongle.
Operating temperature is -22 deg. F (-30 deg. C) to 140 deg. F (+60 deg. C).
Dimensions are approx. 4” x 4” x1.5” (10cm x 10cm x 4cm).
Installation
Easy to install. All connections are simple and quick.
Mounting frames are included to allow the solar panel to attach to a vertical or horizontal surface.
Easy to install into almost any type of bus shelter, smoking shelter, canopy or car port.
We stand behind our lighting systems with one of the best and most comprehensive warranties in the industry. With valid warranty registration, this system is offered with a 10-year limited warranty and the solar panel with a 20-year limited warranty, in accordance with our Terms, Conditions, and Policies. Free, unlimited, lifetime technical support is offered with the warranty.
Please Note:
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced. The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
* View our Terms, Conditions and Polices (including our Returns Policy) for further information.
