SH02 Solar Puck Shelter Light (2 or 3 Fixtures)

SH02 Solar Puck Shelter Light (2 or 3 Fixtures)

Brand: Solar Illuminations
Product Code: SH02 Shelter Light
Availability:
In Stock
Price From: $629.99

Available Options





Description

This system includes two powerful puck style light fixtures. Ideal for a variety of different applications and typically provides illumination from dusk to dawn. An additional puck light fixture is available as an option. Price from $629.99.

This system comprises of two or three compact puck style light fixtures containing three super bright 1W LEDs providing an approximately 230 Lumens. This system is designed to typically operate dusk to dawn each night using two or three lights. The kit is supplied with the light fixtures, a weather proof battery box, a programmable PWM charge controller, a 45 Watt solar panel, and a 12 Volt rechargeable battery. For installations in locations that experience harsh winter weather, or low sun levels, a higher powered solar panel and/or an MPPT charge controller may be required. The battery box is supplied with outlets for the solar panel and light fixtures to plug in to. When the system is connected the light will come on automatically at sunset and will stay illuminated until the set amount of time. The charge controller can be set in numerous options ranging from dusk to dawn, or the light staying on for a set amount of hours after sunset (from 1 to 12 hours). A MPPT charge controller can be purchased as an optional upgrade. The MPPT charge controller provides 30% more charging power, and advanced light control options. The solar panel and light fixtures are supplied with several feet of cable, so they can be mounted away from the battery box if needed. Color of light fixture is silver. Color of other parts of the system are gray. Color of light output is white.

Popular Uses

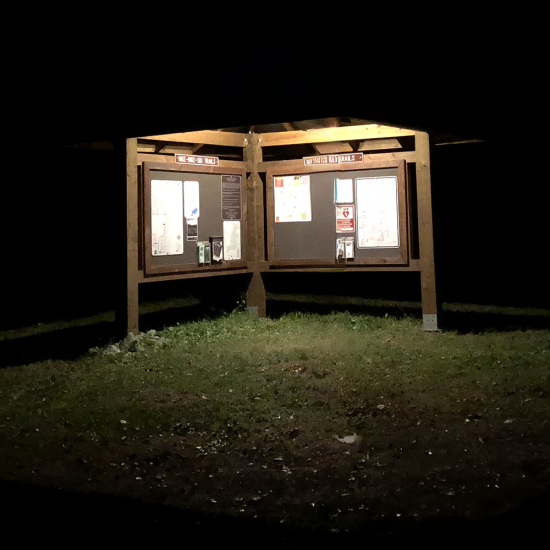

Perfect for use where electricity is unavailable or where it is too expensive to install. This system can also be used for numerous types of shelters and eclosures such as bus shelters, transit shelters, canopies, covered walkways, sheds, covered storage areas, pagolas, or any other similar application.

Technical Specifications


Performance
Two or three puck style lights are included in this system.
Typically operates dusk to dawn in ideal conditions using two or three lights.
Each light can illuminate an area up to 12’ x 12’ (4m x 4m).
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Up to 24 hours of autonomy subject to time length of night time illumination.

Light Fixture
The light is fitted with three 1W SMD/LEDs.
Total 230 Lumens per lamp.
The light is fitted with approximately 18' (5.5m) of pre-wired cable which is pre-plugged ready for easy connection to the battery box. Additional extension cable is available (upon request) as an option.
Lamp dimensions approx. .56" thick x 2.75" diameter (1.5cm x 7cm).

Battery
One high capacity 12 Volt 32 Amp-Hr sealed lead acid battery is supplied.
Battery type is AGM. Gel battery is available by special order.

Battery Box
A remote battery box is supplied to accommodate the batteries, and charge controller.
The battery box has a hinged lid which is lockable (padlock not included).
The battery box has an integral battery shelf which houses the programmable control module.
The battery box has receptacles (socket) for the light, and solar panel to connect to.
The battery box is approx. 13" x 9.75" x 9" (33cm x 24.5cm x 23cm) LxWxD.

Solar Panel
Aluminum framed 45 Watt solar panel is included.
Higher powered solar panel options may be available. For help determining whether a solar panel upgrade is necessary, please contact our customer service department.
Supplied with 18' (5.5m) of cable/cord. Additional cord is available as an optional extra.
The solar panel cord connects directly to the battery box.
The solar panel support is supplied with triangular brackets which can be used to mount it to a suitable surface.
The 45W solar panel dimensions approx. 33" x 20" x 1.5" (84cm x 51cm x 4cm) LxWxD.

Control Module
This system includes a programmable control module which regulates and manages the solar panel power, battery power, and illumination time.
The compact control module has LED indicators to display status, and houses connections for solar panel, batteries, and lamps.
User programmable illumination time of up to 1 to 12 hours or dusk-to-dawn setting (where conditions permit).
User or installer can set the control module to run from dusk and then shut off after a certain amount of hours.
Default setting is typically dusk to dawn.
Instructions are supplied should the user or installer need to program or re-program the module*.
A MPPT charge controller can be purchased as an optional upgrade. The MPPT charge controller provides 30% more charging power, and advanced light control options.

Installation
Easy to install. All connections are simply plug & play.
The light's mounting bracket has pre-drilled holes to allow fixing using screws or bolts (not included).

Remarks


20 year solar panel warranty, 5 year warranty on all other components (excluding batteries). Batteries are covered by the manufacturer*.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.

Please Note: This product is a special order and is non-returnable expect in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.

The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.

* View our Terms, Conditions and Polices (including our Returns Policy) for further information.

Specification
Solar Lights Data
Price From $629.99.
Lumen Output Approx. 230 Lumens per lamp.
Approximate Illumination Time Typically dusk to dawn using two or three lights.
Approximate Sign SIze Up to 12' x 12' (4m x 4m) per lamp.
Solar Panel Wattage From 45 Watts.
Programable Controller Yes.
