RS100 Remote Solar Power System 75Wh/Day

New for 2021 we introduce our most compact, integrated, all-in-one style, solar power system. Ideal for locations where space is limited or where aesthetics are important. It's also a very quick and easy way to provide 12V or 24V DC power almost anywhere.

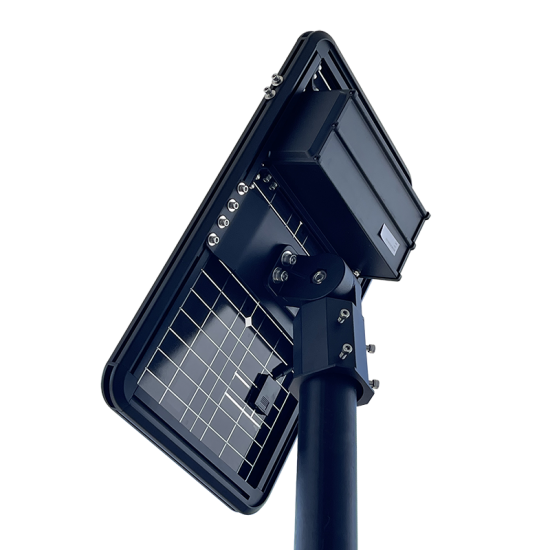

Probably the most neatest, remote solar power station system on the market at this time. No need for lots of hardware, battery enclosure, and separate components, this system is supplied with everything you should need in one simple package. You can select from a 12V DC or 24V DC option depending on the voltage of the equipment you need to operate. The mono crystalline solar panel is 45W. This system is supplied complete with an integrated 25A-hr lithium battery pack which is housed within a slim, weather resistant enclosure mounted to the underside of the solar panel. The battery is replaceable when required but has a typical lifespan of 5 to 10 years. This system can be supplied with a choice of three types of mounting hardware. A tenon for pole mounting (attaches to the top of a 3" OD round pole or pole (e.g. schedule 40 pipe)). A U shape bracket which allows mounting to a wall or structure, including the side of a square post. Or it can also be supplied with a U bracket and a long, heavy duty, ground stake. The ground stake can be set into firm ground or into a new cement/concrete pad then left to cure. The system is programmable prior to shipping. This means you can select the operational times and modes and they are retained within the memory of the internal controller. The modes, times, and other options are configured by Solar Illuminations because they are subject to the load on the system, geographic location of the site, and other factors. Supplied as a complete stand-alone system.

Popular Uses
Perfect for providing power to small 12V DC or 24V DC lighting systems, sign lights, electric gates, CCTV cameras, access control, telemetry and signaling equipment, security systems, and other low voltage apparatus.

Performance
All-in-one, integrated design.
Available as a 12V DC system or 24V DC system.
Weather rating is I.P. 65
Ideal operating temperature charging range is 0 deg C. to +60 deg C. (-32 deg F. to +140 deg F.).
Ideal operating temperature discharging range is -20 deg C. to +60 deg C. (-4 deg F. to +140 deg F.).
Ideal storage temperature range is 0 deg C. to +45 deg C. (-32 deg F. to +113 deg F.).
At the time of ordering, this system will be programmed to operate with a choice of one or more modes.
Choice of operational modes include dusk to dawn, a singled timed mode, or a dual timed mode.
The option to have the lighting dim, by any percentage, and for any amount of time, may also be available.
Solar Illuminations will program the system to perform as per customer requirements, before the system is shipped.
The programmable options may be determined by the geographic location of the installation site and other environmental factors.

Battery
Integral. high capacity. 11.1V 25A-HR lithium battery pack is pre-installed.
Battery life is typically 5 to 10 years,
The battery is replaceable when required.
The system has built-in charge control regulation with over-charge and discharge protection.

Solar Panel

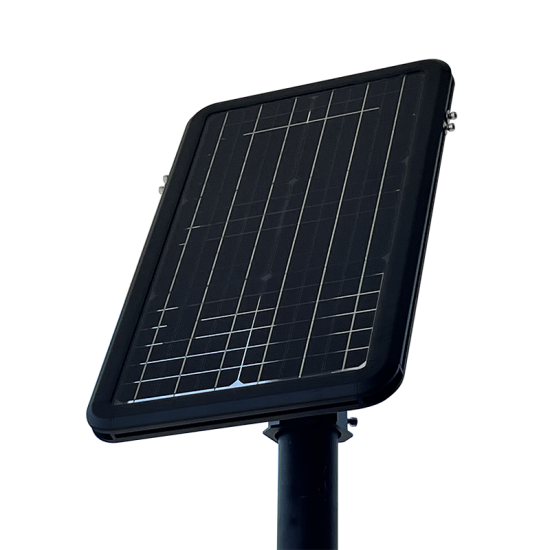

The fixture incorporates a mono-crystalline 18V 45W bi-facial solar panel.
An automatic PTC heated solar panel option is available by special order (for high elevation/heavy snowfall locations).

Installation
A choice of mounting hardware is available to suit most applications.
A tenon can be supplied allowing installation onto the top of a round post or round pole (3" (76mm) O.D.).
Schedule 40 pipe may be a suitable choice of pole.
It can attach to other diameter poles using a tenon/adapter (available by special order).
An optional U Bracket and long, heavy duty ground stake can be included.
The U bracket and stake option is ideal for applications where ground mounting is required.
A U shape bracket can be supplied on its own to allow installation onto a wall, building, or structure.
The U shape bracket can allow for mounting onto a vertical or horizontal surface as it does allow the solar panel to rotate.
The U shape bracket may also be used to attach the system to the side of a square post.

Remarks
With valid warranty registration, this fixture is offered with a 24 month warranty (excluding battery), in accordance with our Terms, Conditions, and Policies.

Please Note:
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced. The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.

* View our Terms, Conditions and Polices (including our Returns Policy) for further information.
