This compact, neat, all-in-one, solar sign light fixture provides a cost effective solution to externally lighting small to medium sized signs. Choice of four sizes with prices starting at $199.99.
Small (12" long) $199.99, Medium (24" long) $339.99, Large (36" long) $409.99, or Extra-Large (48" long) $474.99.
Our FL150 solar powered sign light is a tri-shaped fixture which is fitted with multiple LEDs. Automatic illumination at dusk. Attaches to a vertical surface above the sign for downward signage lighting. Include stand-off mounting brackets to allow the fixture to be attached outward of the sign face for better lighting distribution. This fully integrated solar powered sign light is offered in four sizes, and available in a black powder coated finish. An optional auxiliary 25W solar panel can be added for non-south facing installations, for shaded locations, or less favorable geographic locations (part number SP09). The auxiliary solar panel can be used with the Medium, Large, and Extra-Large models only. The auxiliary solar panel simply connects with its 78" length of cord to a small outlet on the side of the fixture. Standard L-shape mounting brackets are included with this fixture. As an option, we also offer a pair of adjustable mounting brackets (part number SP19) if your prefer to attach this fixture to the very top of the sign (not to the actual sign face itself). Color of fixture is black. Sold as a single unit. Price is from $199.99. Pricing depends on size (length) required.
Small (12" long) $199.99, Medium (24" long) $339.99, Large (36" long) $409.99, or Extra-Large (48" long) $474.99.
Technical Specifications
Performance
All in one, integrated design.
Totally self-contained and stand-alone.
Illuminates at 100% power for 5 hours automatically after dusk, reducing to 25% power for up to a further 5 hours.
The small version can illuminate a sign up to approx. 36” (90cm) x 36” (90cm).
The medium version can illuminate a sign up to approx. 48” (122cm) x 48” (122cm).
The large version can illuminate a sign up to approx. 60” (152cm) x 60” (152cm).
The extra large version can illuminate a sign up to approx. 72” (183cm) x 72” (183cm).
I.P. 65 weather rated.
Light Fixture
This outdoor solar sign light fixture is fitted with multiple OsramⓇ white LEDs.
Built-in LCD digital display panel shows battery status and condition.
Small version has 5W LED power and an output of 500 lumens at full power.
Medium version has 10W LED power and an output of 1,000 lumens at full power.
Large version has 15W LED power and an output of 1,500 lumens at full power.
Extra Large version has 20W LED power and an output of 2,000 lumens at full power.
LED color temperature is 5,000k (4,000k and 3,000k by special order, for large quantity orders only).
Lumen output is 100lm/W
Automatic dusk and dawn sensing.
Aluminum construction with polycarbonate lampshade.
Small version is approx.. 12” (30cm) long x 4.5” (11cm) wide x 4.5” (11cm) high.
Medium version is approx. 24” (60cm) long x 4.5” (11cm) wide x 4.5” (11cm) high.
Large version is approx. 36” (90cm) long x 4.5” (11cm) wide x 4.5” (11cm) high.
Extra large version is approx. 48” (120cm) long x 4.5” (11cm) wide x 4.5” (11cm) high.
On/off switch for manual override.
Color of fixture is black. Silver color by special factory order, for large quantity orders only.
Battery
Pre-installed 3.7v 2,200mAh lithium battery is included.
Solar Panel
The solar panel is built into the top of the fixture.
Small version is fitted with a 5.5v 5W polycrystalline solar panel.
Medium version is fitted with a 5.5v 11W polycrystalline solar panel.
Large version is fitted with a 5.5v 13W polycrystalline solar panel.
Extra large version is fitted with a 5.5v 17W polycrystalline solar panel.

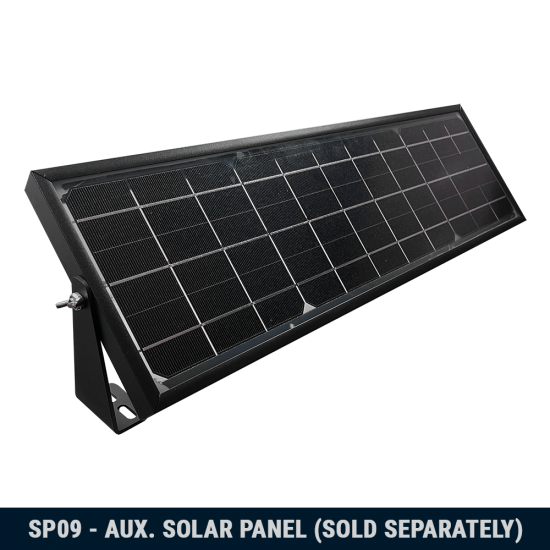

An optional, auxiliary 25W solar panel is available, if required. Part number SP09.
The optional, auxiliary solar panel comes complete with approx. 78" of cord and connector.
Installation
Easy to install.
Best suited for installations on South facing signs.
For optimum performance in some locations, the optional auxiliary solar panel (part number SP09) may be required.
Installations on West or East facing signs may result in shorter illumination times.
It is recommended that the optional auxiliary solar panel (Model SP09) is used for West or East facing signs to boost charging and efficiency.
Not recommended for installations on North facing signs without the optional auxiliary solar panel (part number SP09).
Includes a pair of 7” (18cm) stand-off brackets to enable the fixture to be mounted off and outward of the sign face for better light distribution.
Attach to the top of the sign you wish to illuminate for lighting downward.

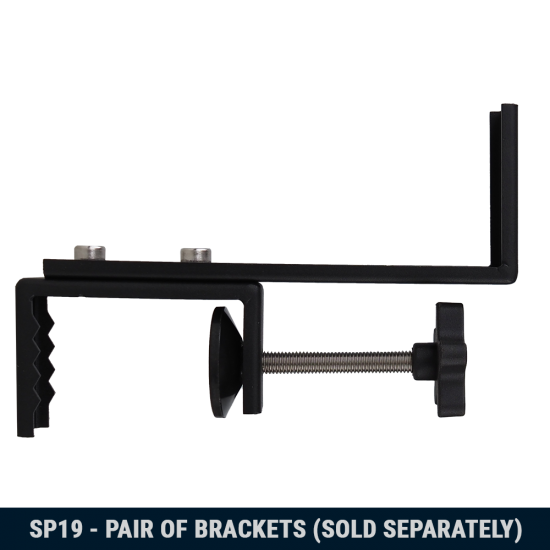

Consider our optional adjustable mounting brackets (part number SP19) for applications where the sign face is not to be covered or where mounting above the sign face is desired).
Remarks
With valid warranty registration, this fixture is offered with a 24 month warranty (excluding battery), in accordance with our Terms, Conditions, and Policies.
Please Note:
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
* View our Terms, Conditions and Polices (including our Returns Policy) for further information.
