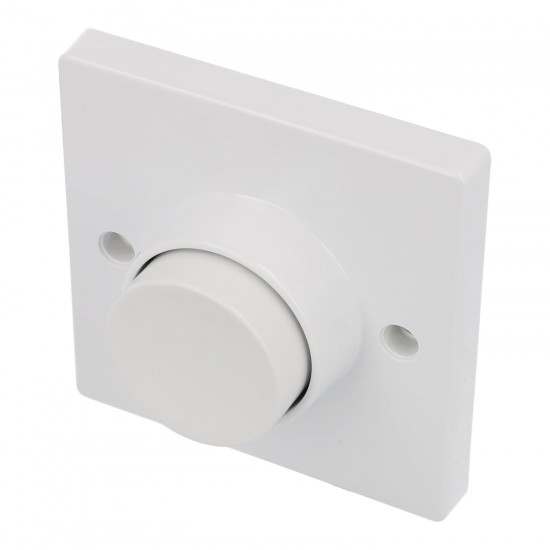

This unique time lag switch allows a load or lighting to be turned on at the push of the button. It will then automatically turn off after a preset amount of time. The timer is adjustable from 5 seconds to 5 minutes. Because this switch is pneumatic it does not require any power supply or power source to operate. It can handle up to 500W. For low voltage (12V~24V DC) applications. You can wire to the switch using a +ve or -ve switch line. Ideal for solar power lighting systems where the lighting only needs to be on for very short periods of time. The switch includes a plastic mounting box for attaching to a flat interior surface.
This MA02 wired time lag switch is not pre-wired with any cable by default. You can select cable land length options, if required.
Technical Specifications
Performance
Pneumatic time lag switch (no power supply required)
Use to switch a +ve or -ve supply up to 500W.
For low voltage 12V~24V DC systems.
Timer is adjustable from approx. 5 seconds to 5 minutes.
Switch plate is approx. 4" x 4" x 2".

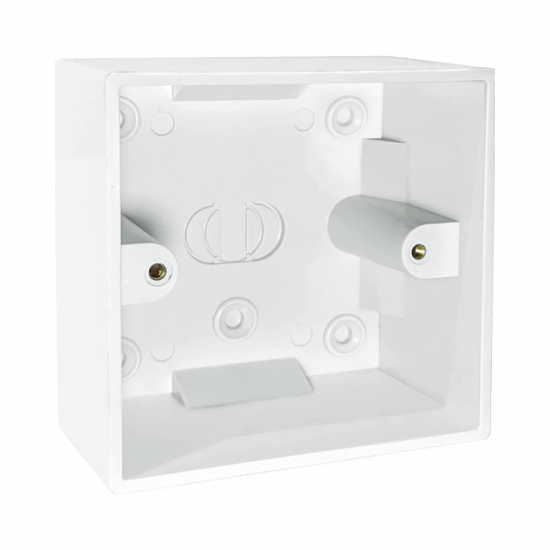

Mounting box is approx. 4" x 4" x 1".
Switch plate includes two screws to attach to the mounting box.
Mounting box has pre-drilled holes to allow it to be fixed to a solid surface using screws (not included).
Terms
One year warranty*.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.
Please Note: This product is a special order and is non-returnable expect in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice.
Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
*View our Terms, Conditions and Polices (including our Returns Policy) for further information.
