For use only with DC low voltage and solar applications. This step-up (buck) converter will increase an input voltage of 12V DC up to 24V DC. It is ideal for solar power systems or solar lighting systems where the system is operating at 12V DC but equipment or devices need to operate at 24V DC instead. Available in two versions (light duty or heavy duty). Select the appropriate rating (Amp or Wattage) for the load you intend to use. Price from $19.99.
Technical Specifications
Performance
Electronic step up (buck) converter.
For low voltage applications only.
Only suitable for use with a 12V DC system requiring an increase in voltage to 24V DC.
Ideal for solar power systems.
Light duty version is 5A (120W).
Heavy duty version options are 3A (72W), 5A (120W), 10A (240W) or 20A (480W).
Light duty input voltage is 12V DC.
Heavy duty input voltage is 8~16V DC.
Output voltage is 24V DC.
Simple 4-wire connection.
Two 12V DC input wires (+ve and -ve) and two 24V DC output wires (+ve and -ve).

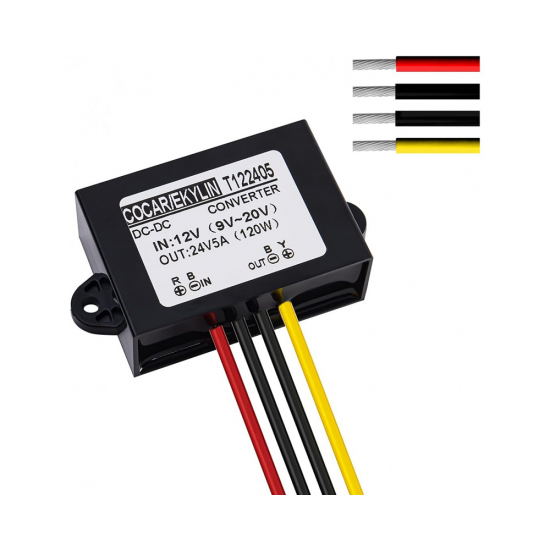

Standard duty version is plastic and has two screw/bolt holes.

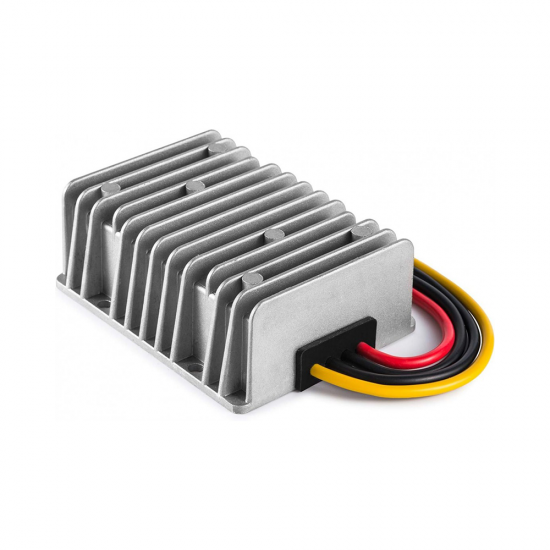

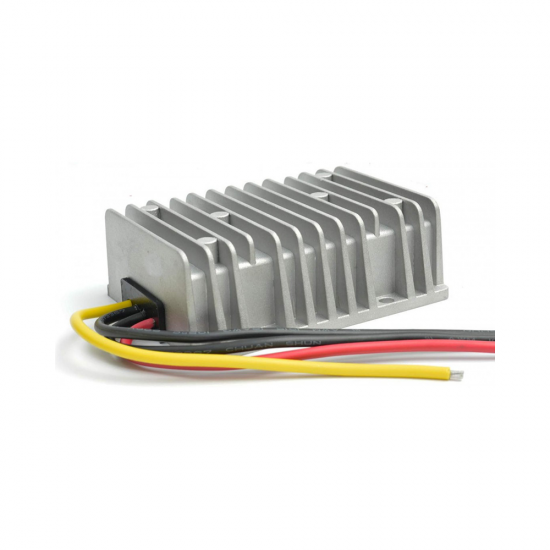

Heavy duty version is made of cast alloy with heat sinks and has two screw/bolt holes.
Either version may be attached to a smooth, clean, flat surface using strong double side tape (e.g. 3M VHB) not included.
Heavy duty version is weatherproof with an IP 67 rating.
Light duty version is approx. 2” x 1.5” x 1”.
Heavy duty version is approx. 3” x 3” x 1.5”.
Pre-wired (wires can be extended).
Do not exceed the maximum load or the converter will become damaged and will require replacement.
Remarks
One year warranty*.
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
