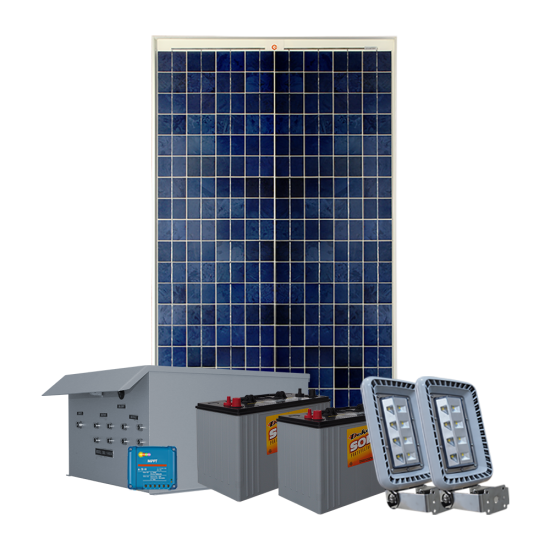

When only the best will do, our BL range of commercial grade solar billboard lighting systems is your only choice. This is one of our most powerful solar billboard lighting systems. It's supplied as a complete, professional system, and includes a pair of powered, solar powered, billboard lights. Perfect for illuminating outdoor advertising throughout the hours of darkness.
This high-end, commercial grade, custom, solar billboard light system is engineered specifically for the billboard industry, and is designed and assembled at our USA headquarters located in SW Florida. Our powerful LED light fixture utilizes optic technology to uniformly illuminate the whole billboard surface from top to bottom and left to right. Depending on the dimensions of the billboard poster, this will determine the fixture quantity and the LED power. We offer a choice of LED power from 10W to 35W. Using highly efficient LEDs at 150lm/W we can offer an output of between 1,500 and 5,250 lumens. Our solar billboard systems can be specially designed for your geographic location and with a nightly illumination time of yours choice. A single or dual timed mode is available, or simple automatic dusk to dawn. Our lighting systems can be fully customized to increase illumination time if required. We supply this as a complete, ready-to-install solution and includes the light fixtures, mounting arms, metal lockable battery enclosure, programmable MPPT charge controller, powerful solar panels with mounting brackets. As a 24V DC system, it includes a pair of high quality, high capacity 12V AGM rechargeable batteries. Everything about this system is designed to be quick and easy to install, with plug and play connections, and universal hardware. Our sophisticated MPPT charge controller operates at peak efficiencies greater than 95%, which is 30% more efficient than most conventional charge controllers (PWM). It also controls the lighting activation, offering unique illumination programmability. This allows you to get the most out of your allotted illumination time. With our charge controller you can choose to illuminate your lights from sunset for 8 hours, or for a set period of time in the evening and in the morning. We supply the LED light fixtures and solar panels with plenty feet of pre-wired cable, so that they can easily be installed on most structures without modification. Since we manufacture this product in house, it’s easy for us to modify and tailor it to suit your needs. Please contact our sales department regarding questions or customization.
As this is a custom-built solution, it can be designed as per your requirements. This includes the nightly illumination time. The system can be designed and pre-programmed to automatically operate at dusk and turn off at dawn all year round. This could be up to 15 hours or more allowing for the longest night of the year (December 21st). Or the system can be designed and pre-programmed to automatically to operate on a single or dual timed mode for 8 hours total. A single timed mode would provide automatic illumination at dusk for x number of hours and then turn off. A dual timed mode would provide automatic illumination at dusk for x number of hours, then turn off, then turn back on again for x number of hours before dawn. Other timed options and configurations are available upon request.
Please note, the specifications of the sign lighting system are determined by several factors. These factors include the geographic location of the installation site, the total LED power (Wattage), and the total number of hours of operation. It's these factors that determine the solar panel wattage and the battery capacities and some of the other components required to create the entire system.
PRICING IS FROM $3,299.99. CONTACT US WITH YOUR REQUIREMENTS SO WE CAN ADVISE SPECIFICATIONS AND COST.
Popular Uses
This solar powered billboard light is designed to illuminate large format billboards or signs where conventional electricity is not readily available. Each fixture is designed to illuminate approximately 20’ (6M) wide by 16 ’(5M) high. This system is designed to illuminate up to 40’ (12M) wide by 16’ (5M) high, or a double sided structure up to 20’(6m) wide by 16’ (5M) high. Our professional systems are suitable for almost any sign/billboard application, single, double, or even tri-sided structures. Be sure to select a system that can properly accommodate your needs, and has the light output to cover the size of the billboard you wish to illuminate. Feel free to consult with a sales representative regarding any questions.
Technical Specifications
Performance
Designed and manufactured at our USA Headquarters (Florida).
Each system is designed and custom built as per your requirements and the
geographic location of the billboard.
Typically up to 3 days autonomy is included but additional days can be allowed,
as required.
Each fixture is designed to evenly illuminate an area of up to 20’( 6M) wide by
16’ (5M) high.
Light
Fixture

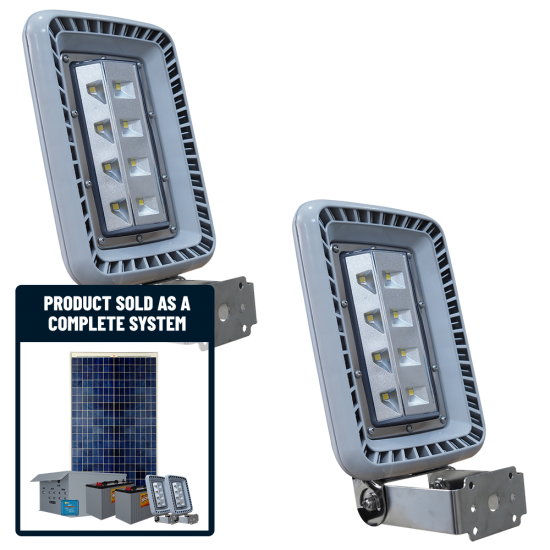

System includes two heavy duty 10W to 35W LED billboard light fixtures.
The LED power is determined by several factors including the billboard
dimensions and fixture quantity.
Each lamp includes 48 Philips Lumiled Luxeon® LEDs, capable of producing
up to 150lm/W each.
Each fixture produces up to 5,250 Lumens.
IP68 weatherproof rating.
Each fixture includes approximately 9' (3M) of cable. Additional cable can be
supplied as an option.
Each fixture is supplied with a stainless steel mounting bracket which has a
female, 1.5" threaded receptacle/coupler.
The mounting bracket is approx. 7" x 5" x 2" (18cm x 13cm x 5cm)
LxWxD.
Alternative fixture mounting brackets may be available by special order.
The light fixture is fully adjustable for the appropriate angle on bottom or
top illuminated signs.
Color of light fixture is gray.
Light fixture dimensions (main body) are approx. 14" x 10" x 3"
(36cm x 26cm x 8cm) LxWxD.
IK10 impact resistant rating.
Operating temperature -40° ~ +122°F (-40° ~ +50°C ).
UL listed, CUL listed, DLC, CE, NSF, RoHS, IDA compliant,
Battery
This is a 24V DC system, which uses two 12v sealed lead acid, AGM or GEL type
rechargeable batteries.
This system is supplied with a pair of deep cycle AGM batteries specially
designed for solar applications. GEL or lithium batteries are available as an
option.
The battery capacity depends on several factors including total LED power,
nightly illumination time and/or geographic location.
The battery capacity will determine the cost of the system.
Dimensions depend on battery capacity.
Typical battery life is approximately 5 years, subject to environmental factors.
Please note, if you do not install or use this product for several months the
battery may discharge naturally on its own.
By allowing a battery to deep discharge may cause irreversible damage as the
battery may then lose the ability to recharge or hold a full charge.
Periodic charging is always recommended when a product is not being used or
when the solar panel is disconnected.
For 24V systems, batteries must be connected together in series.
Battery
Box
A galvanized steel lockable battery box is supplied to accommodate the
rechargeable batteries and Control Module.
The battery box model number and dimension depend on several factors and will
be determined by the battery capacities required.
The battery box must be located nearby, or within the billboard / sign
structure for solar panel and light fixture connection.
The battery box has pre-drilled holes to enable secure installation.
Silver/gray color finish.
Custom colors by special order.
Aluminum and stainless steel battery enclosures are available as an option.
Solar
Panel
This system includes one or more solar panels.
The solar panel quantity and wattage depend on several factors including total
LED power, nightly illumination time and/or geographic location.
The solar panel wattage will determine the cost of the system.
The solar panel is a highly efficient polycrystalline or monocrystalline array.
Dimension depend on solar panel wattage.
Aluminum frame with anti-aging and encapsulated.
Low reflecting tempered glass.
Solar panels may be supplied in a dual format.
The solar panel(s) are supplied with triangular mounting hardware to mount to a
vertical or horizontal surface.
Optional pole mount hardware is available.
The mounting systems allows the solar panel(s) to be tilted to an appropriate
angle determined by the geographic location of the installation site.
The solar panel(s) should be must be orientated to face south (Northern
Hemisphere), with a clear view to the sky for the system to perform as designed.
Typical solar panel life is approximately 20-25 years subject to environmental
factors.
Control
Module
This system includes a MPPT charge controller (programmable control module)
which regulates and manages the solar panel power, battery power, and
illumination timer.
The compact control module has LED indicators to display status of input
connections for the solar panel, batteries, and output connections for the lamp.
Simple push button programming.
Accepts and controls GEL or AGM type sealed lead acid (VRLA) batteries.
Detects daytime and night time conditions via the solar panel.
Automatic adaption to ambient temperature conditions.
Automatic voltage recognition (12V or 24V).
Safety features for short circuit and reverse polarity protection of battery
and lamp inputs.
Float voltage for 12V system is 13.8V DC and for 24V system is 27.6V DC.
Low voltage disconnect regulated by voltage, disconnect voltage 11.1V (12V) or
22.2V (24V).
Reconnect voltage for 12V system is 12.6V DC or for 24V system is 25.2V DC.
Dimensions approx. 11 cm x 10 cm x 4 cm (4" x 4" x 1.5") LxWxD.
Ambient temperature range -40 deg C ~ +50 deg C (-40 deg F ~ +122 deg F).
Protection rating I.P.22.
Single or dual timer mode options.
User programmable illumination time of up to 1 to 12 hours or dusk-to-dawn
setting (where conditions permit).
User or installer can set the control module to run from dusk and then shut off
after a certain amount of hours. For example from dusk for 4 hours then switch
off, or run from dusk for 6 hours then switch off.
The module can also be programmed to switch on at dusk for a chosen amount of
hours then switch off, then switch back on a chosen number of hours before dawn.
Instructions are supplied should the user or installer need to program or
re-program the module*.
Installation
This system is designed to be easy to install, with little solar or electrical
expertise required to complete the installation.
Triangular mounting frames are included to allow the solar panel to attach to a
vertical or horizontal surface.
An optional solar panel pole mount kit can be purchased.
Optional aluminum pole mount (NEMA 3R) battery boxes are also available by
special order.
Due to the variety of billboard and sign structures, we cannot guarantee that
all our hardware will accommodate your installation. You may need to make minor
modifications or purchase additional hardware.
Remarks
We stand behind our lighting systems with one of the best and most comprehensive warranties in the industry. With valid warranty registration, this system is offered with a 10-year limited warranty and the solar panel with a 20-year limited warranty, in accordance with our Terms, Conditions, and Policies. Free, unlimited, lifetime technical support is offered with the warranty.
Please Note:
This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced. The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
* View our Terms, Conditions and Polices (including our Returns Policy) for further information.
