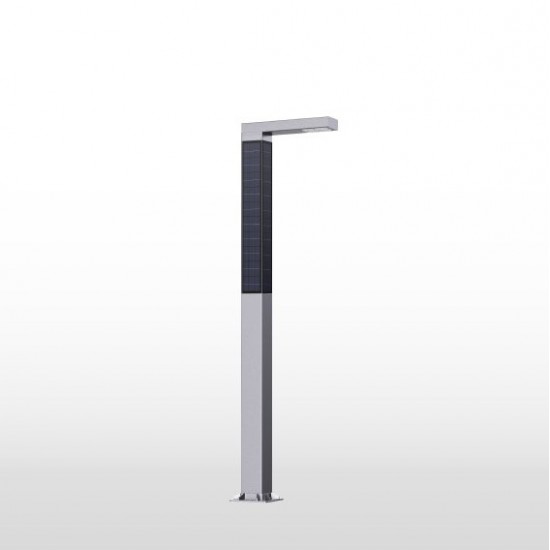

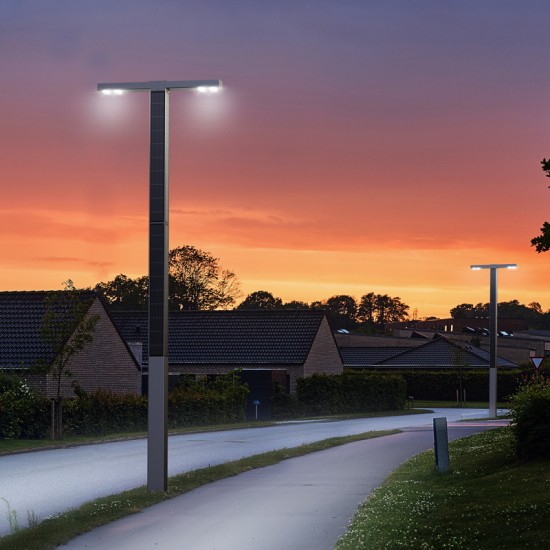

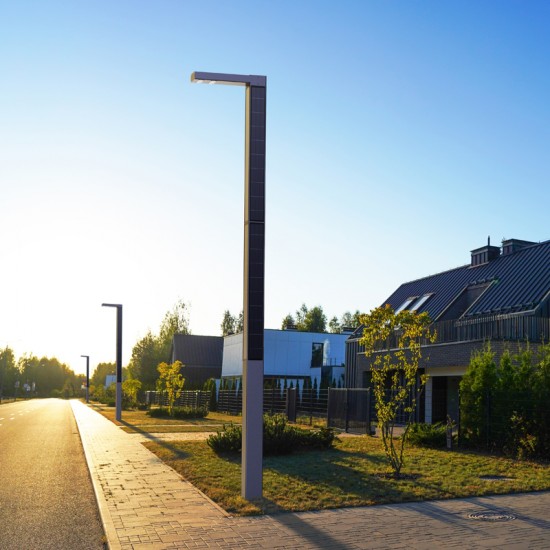

This is a unique, solar
powered, LED street light because it incorporates the solar panels into the sides of
the pole. It's a fully integrated complete system. Available with a choice of pole heights and LED power, etc.
This modern, sleek, all-in-one, solar powered, LED street light features fully
integrated vertical solar panels on all four sides of the pole. Its modular
design means there are no added or external parts to be concerned with. It’s
available with a choice of LED power (20W, 30W, or 50W), choice of distribution (Type I, II, II, IV, and V), and a choice of four
different pole heights. This system has a built-in motion sensor that can be
used with one or more of the operating modes, if required. Several different
modes are available for this system to operate at night, as required. If dusk
to dawn illumination is not a requirement, then it can operate with a single,
dual timed, or multi-mode with the ability to add dimming and/or motion
detection. It’s a very flexible system that can be designed and manufactured to
meet your specific needs and geographic location. It’s also highly efficient
with 180lm/W, high-capacity internal lithium battery pack and the option for
smart, wireless connectivity. With integrated vertical solar panels there are
no concerns with snow, ice, wind, dust, and other environmental factors that
can affect conventional solar panels. Color of fixture is gray/silver. Color of
pole is gray/silver.
STARTING PRICE $2,999.99. THE FINAL COST OF A SYSTEM IS DETERMINED BY SEVERAL FACTORS INCLUDING THE LED POWER REQUIRED, THE GEOGRAPHIC LOCATION OF THE INSTALLATION SITE, AND THE NIGHTLY ILLUMINATION TIME REQUIRED, ETC.
Popular Uses

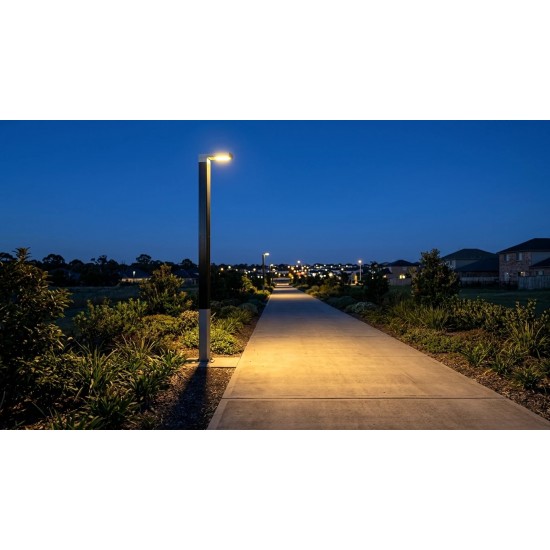

Perfect for small
streets, parking lots, general open areas, playgrounds, parks, mailbox kiosks,
walking trails, dog parks, HOA's etc.
Technical Specifications
Performance
All-in-one, integrated design.
Weather rating is I.P. 65
At the time of ordering, this system will be programmed to operate with a
choice of one or more modes.
Choice of operational modes include dusk to dawn, a singled timed mode, or a
dual timed mode.
The option to have the lighting dim, by any percentage, and for any amount of
time, may also be available.
Optionally, the integrated motion sensor can be used with some of the operating
modes.
Solar Illuminations will program the system to perform as per customer
requirements, before the system is shipped.
The programmable options may be determined by the geographic location of the
installation site and other environmental factors.

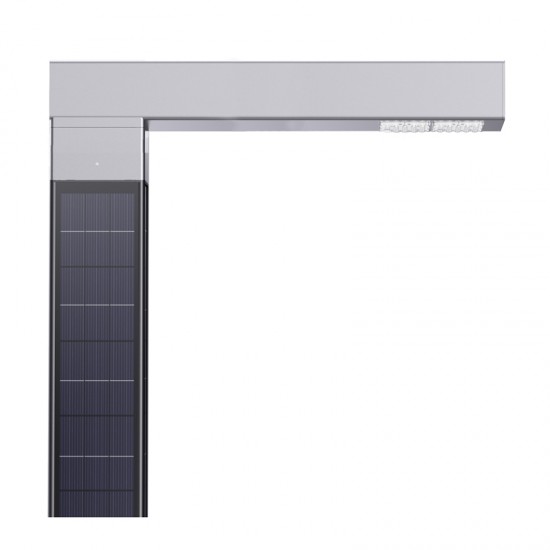

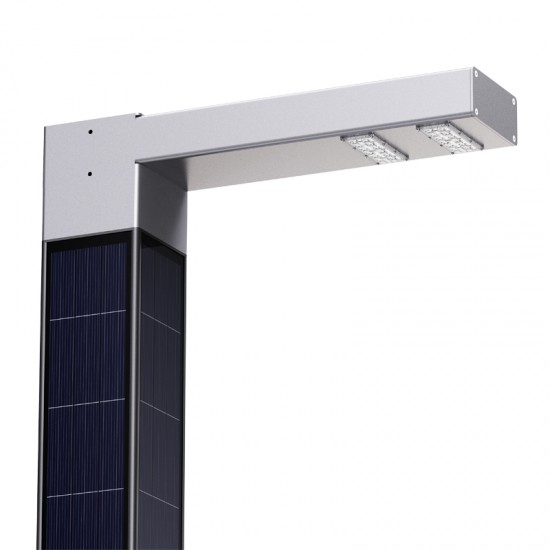

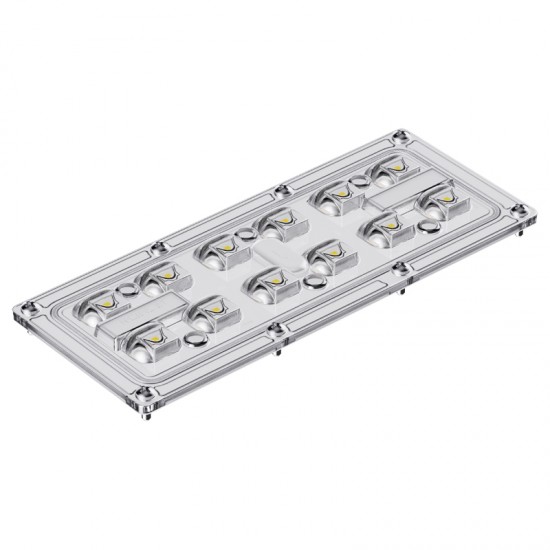

Light Fixture
Choice of LED power (20W, 30W, or 50W).
The LED color temperature is offered with a choice of 2,200k~6,500k.

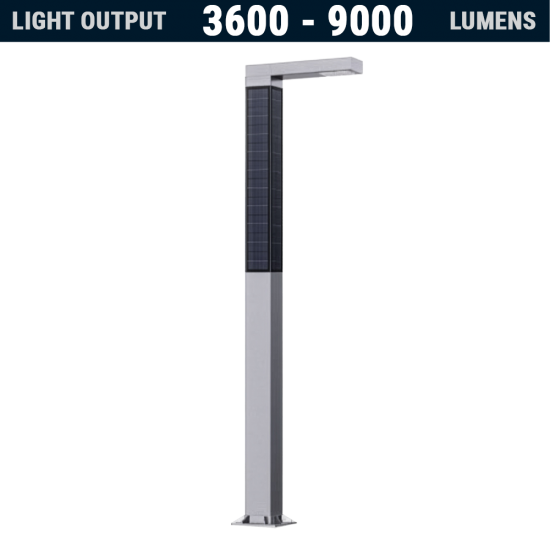

Lumen output from 3,600lm to 9,00lm.
LED power is 180 lumens per watt (180lm/W).

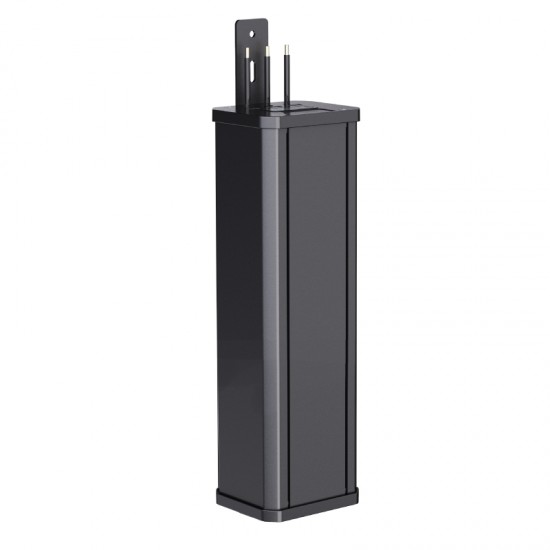

Battery
Integral high capacity Lithium battery pack is included.
Battery voltage is 12.8V DC.
Choice of 460WH, 615WH, or 768WH.
The system has built-in MPPT charge control regulation with over-charge and
discharge protection.

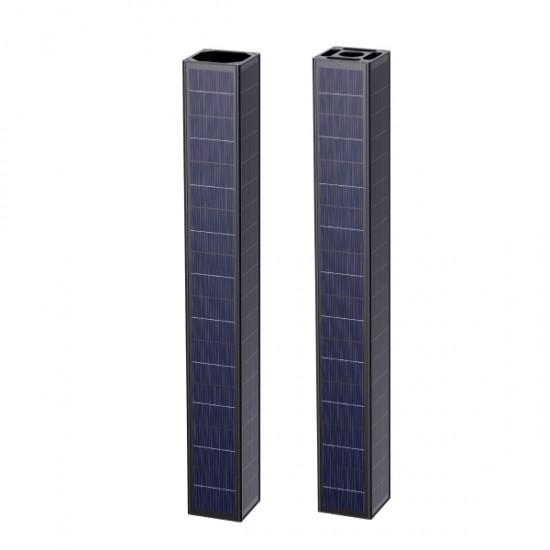

Solar Panel
The fixture and pole incorporate a monocrystalline solar panel.
The solar panel is on all four side of the pole.
The fixture has an integrated 26W solar panel.
The pole can accept 220W or 280W of solar panel.
Pole
Aluminum construction.
Square profile.
Modular design.
Choice of pole heights.
Pole height options are approx. 12.5’ (3.8M), 14’ (4.2M), 16’ (4.8M), or 19’
(5.8M).
The fixture and pole incorporate a monocrystalline solar panel.
The solar panels are on all four sides.

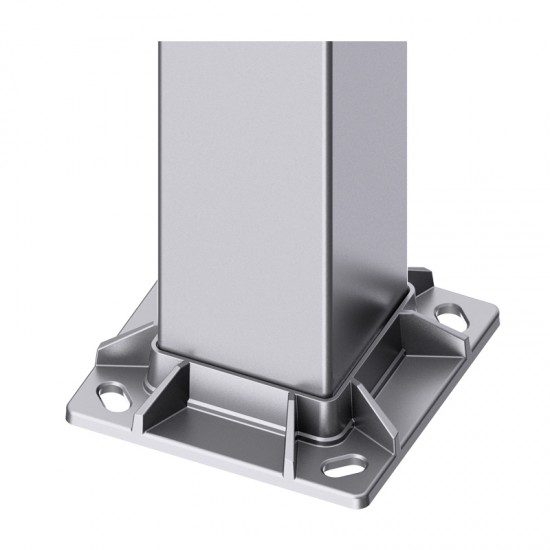

The base of the pole has a welded flange with four pre-drilled holes for anchor
bolts.
Anchor bolts are not included.
Installation
This system is modular.
Remarks
With valid warranty registration, this fixture is offered with a 24 month
warranty (excluding battery), in accordance with our Terms, Conditions, and
Policies.
Please Note:
This product is a special order and is non-returnable except in the event of a
fault (during its warranty period) when the product, once returned will be
repaired or replaced. The solar panel must be installed in a location where it
can receive full direct sunshine (when available) and usually set facing South
at an appropriate angle (where adjustment options allow). The solar panel must
not be installed in a shaded or part shaded location and never indoors. The
standard specifications of the system (particularly the solar panel Wattage and
battery capacity) may need to be adjusted. These components are determined by
your geographic location, power consumption (LED Wattage) and the total amount
of hours of illumination time required. Such changes to the standard
specifications may increase or decrease the cost shown. Please contact us for
more information or assistance. The illumination time is estimated and subject
to various factors including (but not limited to) geographic location, seasons,
temperature, weather conditions & location of product etc. The illumination
time of most solar lights can reduce during winter months when the weather is poor,
and the days are shorter. During this time insolation hours decrease
accordingly. Shorter illumination time due to one or more of the above factors
does not define the product as being ‘defective’ or ‘not as described’. All
solar lights must be used in a completely dark location at nighttime otherwise
they may not illuminate. Nearby strong lighting sources or ambient lighting may
affect the operation of a solar light. This does not define the product as
being 'defective' or 'not as described'. Please note, if you do not install or
use this product for several months the battery may discharge naturally on its
own. By allowing a battery to deep discharge it may cause irreversible damage
as the battery may then lose the ability to recharge or hold a full charge.
Although unlikely, we reserve the right to supply this product with any minor
alterations or minor changes to the specifications (shown above by text
description or by photographs) due to different supplies or product batches
received, incorporating such product changes made by the manufacturer, without
further notice. Descriptions, specifications and photographs are updated
regularly but may not be current when minor changes to a product have only
recently been made.
