PDF DataFor applications where a sign is to be illuminate internally, such as cabinet signs, church signs, and such like, our LED light strip system may be an ideal solution. It is available with a choice of different sized LED light strips (from 12" to 48") and different LED power. Price from $695.00.
This system is designed and built to order. It can be configured in many different ways.. The system can include one or more low-profile LED light strips. These are available in 12" increments from 12" to 48" long. We also offer different LED power. The LED strips are dimmable so the light output can be adjusted to suit the sign dimensions or criteria. Weatherproof versions are available for exterior applications. The required quantity of LED strip lights necessary for your sign will depend on the size and design of your sign. Each lLED strip is fitted with multiple wide-angle LEDs. This complete solar sign light system includes the light fixture(s), solar panel, batteries, MPPT charge controller, outdoor-rated battery enclosure, necessary cables and solar panel mounting triangles. The required solar panel size and battery capacity is determined based on the quantity of lights needed, desired illumination time, and installation location.
This system is designed and built by Solar Illuminations to order as a custom or semi-custom system, as per your requirements. This includes the nightly illumination time. Illumination time can be dusk to dawn, or 8 hours illumination. Additional illumination times available upon request. For 8 hours illumination or anything less than dusk to dawn, the illumination time can be split in to two periods using the built in dual timer option.
Please contact our sales team for help determining the appropriate sized solar panel and batteries based on your requirements and location.
Please note that the installation location and desired light fixture power (Wattage) will determine the appropriate sized solar panel and batteries for your system. Please refer to the zone map and options table below, and select the correct system option from the drop down bar above. The sizing information and pricing is based on the 12" long 4W LED power LED strip light fixture.
1 - Using the map below as a reference, determine what zone your installation site is located in

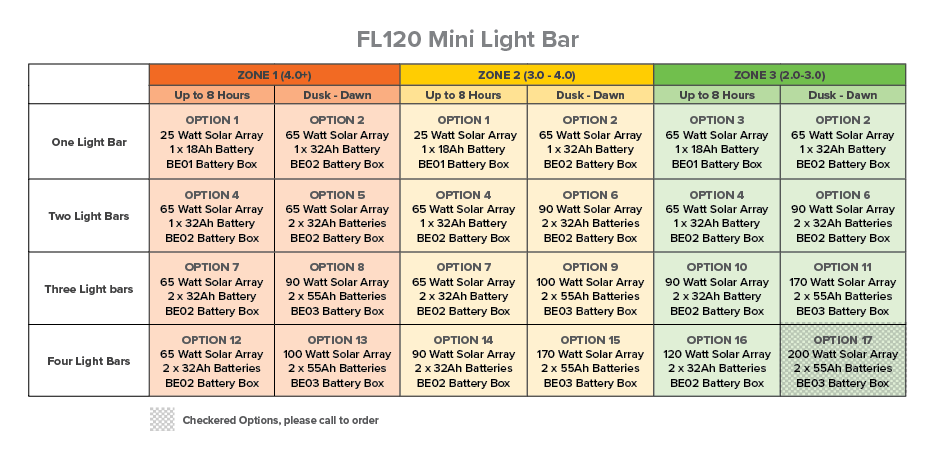

2 - Using the table below, determine what system option you should select. Choose your desired lamp power, and illumination period within your zone. The point where the two intersect will be the system option you require.
For installation sites in zone 4 or outside of the United States, please contact our sales department for system requirements and pricing. The zone map above is based on estimations and may not be accurate for all areas. For the most accurate solar panel sizing we suggest contacting our sales department. If you require a system with an illumination time other than 8 hours or dusk to dawn, please contact our sales department.
Performance
Choice of one or more LED strip light fixtures included in this system.
Illumination time is dusk to dawn, or 8 hours illumination.
Single timed mode and dual timed mode options available with lighting on for any amount of time up to 16+ hours.
Other timed options are available upon request.
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Supplied with up to 3 nights autonomy.
Light Fixture
Each LED strip ight is fitted with multiple SMD/LEDs.
Choice of LED strip in 12" increments.
12", 24", 36" , and 48" versions.
150 ~ 170 lumens per watt.
12" version has 4W LED power (600 lumens).
24" version has 7W LED power (1,190 lumens).
36" version has 8W LED power (1,360 lumens).
48" version has 9W LED power (1,530 lumens).
LED power is adjustable (dimmable).
LED beam angle is approx. 120 degrees.
Weatherproof versions available (IP 65).
Each LED strip light fixture is fitted with approximately 18' (5.5m) of cable for easy connection to the battery box.
Additional extension cable is available (upon request) as an option.
Each LED strip is only approx. 0.5" wide x 0.25" deep.
ETL & CETL listed. CE marked, RoHS certified.
Battery
12V DC system.
A high capacity, deep cycle, AGM 12 Volt AGM battery is supplied.
Battery capacity varies based on system requirements.
Capacity options include one or two 12Ah, 18Ah, 32Ah, 55Ah, 79Ah, 92Ah, or 105Ah.
Battery Box
Supplied with a weather proof battery enclosure.
Size and model of battery enclosure depends on batteries required.
Battery enclosure options include BE01, BE02 & BE03.
Battery enclosures are lockable with the use of a padlock (not included).
Outlets are installed on enclosures for “plug & play” connections.
BE01 is plastic construction.
BE02 & BE03 are constructed from galvanized steel, with a gray painted finish.
BE01 dimensions: 10.5" x 8" x 4.5"
BE02 dimensions: 9.9” x 15.75” x 8.9”
BE03 dimensions: 21.25” x 15.4” x 11.2”
Solar Panel
Supplied with an aluminum framed glass faced solar panel.
Solar panel size and power (Wattage) varies depending on light power, and installation location.
Solar panel(s) are supplied with a pair of mounting triangles for mounting on to flat horizontal or vertical surfaces.
Panel Wattage options include 20W 45W, 70W, 90W, 100, 140W, 240W, 280W & 480W.
25W panel dimensions: 22.5" x 14" x 1"
65W panel dimensions: 34.25” x 20.13” x 1.5”
90W panel dimensions: 32.35” x 26.22” x 1.5”
100W panel dimensions: 40.25” x 26.25” x 1.5”
120W panel dimensions: 47.87” x 26.43” x 1.5”
170W panel dimensions: 44” x 38.7” x 1.5” (or may be supplied as two 70W panels).
275W panel dimensions: 64.38” x 39” 1.5”
340W panel consists of two 170W panels.
Control Module
Supplied with a MPPT charge controller which automatically controls the solar panel power, battery charging and lighting function and operation.
An optional Bluetooth dongle can be purchased to allow access to the charge controller history and programming options.
Ultra fast Maximum Power Point Tracking (MPPT).
The MPPT charge controller is typically 30% more efficient than standard PWM controllers and 10% more efficient to most other MPPT controllers.
Additional efficiency for cloudy weather and during times of reduced sun radiation.
Provides extended battery life and extra protection against excessive battery discharge and overcharge.
Low voltage detection for automatic disconnect.
Pre-programmed software for load output, dusk to dawn lighting, single timed lighting, dual timed lighting, dimming option and the ability of interfacing with motion detection, where required.
This MPPT charge controller is programmed by Solar Illuminations as per your requirements and system ability.
Lighting control features illumination from dusk to dawn (where applicable), or on at dusk for X amount of hours then off, or on at dusk for X amount of hours, then off, then back on again for X amount of hours before dawn.
Operating temperature is -22 deg. F (-30 deg. C) to 140 deg. F (+60 deg. C).
Installation
Easy to install. All connections are simply plug & play.
The light is mounted using the adhesive backing or magnets (depending on version).
LED strip lights can be used for internal or external illumination.
Solar panel must face south and be in direct view of the sun throughout the day.
System requirements are based on solar panel facing south, and angled 15 degrees plus installation latitude.
If above requirements can not be met, notify the sale team so we can calculate system requirements.
We stand behind our lighting systems with one of the best and most comprehensive warranties in the industry. With valid warranty registration, this system is offered with a 10-year limited warranty and the solar panel with a 20-year limited warranty, in accordance with our Terms, Conditions, and Policies. Free, unlimited, lifetime technical support is offered with the warranty.
