This complete system includes five powerful puck style lights which are ideal for multiple uses. An additional puck light fixture can be purchased and added to the system. The lights will typically illuminate from dusk to dawn using five or six lights. Supplied with solar panel, batteries, charge controller, and all other necessary components. Price from $1,249.99.
This system consists of five or six compact puck style light fixtures, each containing three super bright 1W LEDs providing approximately 230 Lumens. The kit is supplied with the light fixtures, a metal battery box, a programmable PWM charge controller, a 100 Watt solar panel, and two 12 Volt rechargeable batteries. For installations in locations that experience harsh winter weather, or low sun levels, a higher powered solar panel and/or an MPPT charge controller may be required. The battery box can be locked with a padlock (not supplied), and is fitted with outlets for the lamps and solar panel to easily connect to. An on/off switch is supplied, when left in the on position the system will automatically turn on at sunset and illuminates until the programmed amount of time. The programmable charge controller can be set to illuminate for a selected number of hours after sunset (from 1 to 12 hours) or it can be set to run from dusk until dawn. A MPPT charge controller can be purchased as an optional upgrade. The MPPT charge controller provides 30% more charging power, and advanced light control options. The solar panel and light fixtures are supplied with several feet of cable so that they can be installed a distance away from the battery box if required. Color of light fixtures is silver. Color of other parts of the system are gray. Color of light output is white.

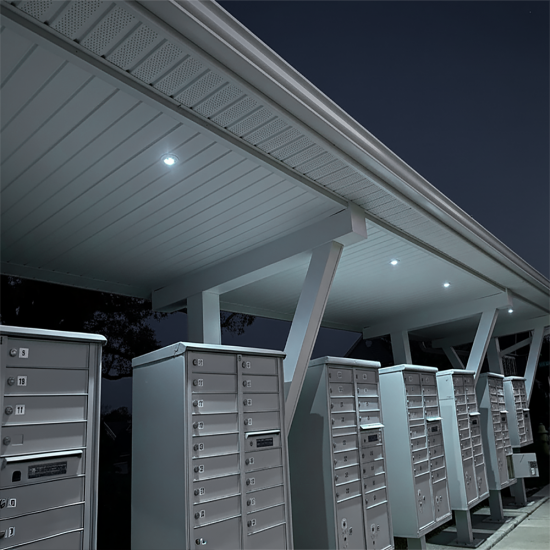

Perfect for use where electricity is unavailable or where it is too expensive to install. This system can be used for numerous types of enclosed locations such as bus shelters, transit shelters, kiosks, sheds, storage shelters, canopies, covered walkways, or any other similar application.
Between five or six puck lights are included in this system.
System can typically run dusk to dawn with five or six lights.
Each light can illuminate an area up 12’ x 12’ (4m x 4m).
Manufactured in an ISO9001:2008 'Quality Assured' facility.
Up to 24 hours of autonomy subject to time length of night time illumination.
Each light is fitted with three 1W SMD/LEDs.
Total 230 Lumens per lamp.
The light is fitted with approximately 18’ (5.5m) of pre-wired cable which is pre-plugged ready for easy connection to the battery box.
Additional extension cable is available (upon request) as an option.
The light fixture is weather rated to I.P 65.
Lamp dimensions approx. 3" long x 3" diameter (8cm x 8cm).
12 Volt dc system.
Two high capacity 12 Volt 32 Amp-Hr sealed lead acid batteries are supplied.
Larger capacity battery options may be available. For help determining whether a larger battery is necessary, please contact our customer service department.
Larger capacity batteries will require a bigger battery box.
Battery type is AGM. Gel battery is available by special order.
A remote battery box is supplied to accommodate the batteries, and charge controller.
The battery box has a hinged lid which is lockable (padlock not included).
The battery box has an integral battery shelf which houses the programmable control module.
The battery box has a receptacle (socket) for the solar panel, and each light to connect to.
The metal battery box is approx. 22” x 14” x 8” (56cm x 36cm x 20cm) LxWxD.
The battery box has a footprint for installation of approx. 22” x 14” (56cm x 36cm) LxW.
Aluminum framed 100 Watt solar panel is included.
Higher powered solar panel options may be available. For help determining whether a solar panel upgrade is necessary, please contact our customer service department.
Supplied with 18' (5.5m) of cable/cord. Additional cord is available as an optional extra.
The solar panel cord connects directly to the battery box.
The solar panel support is supplied with triangular brackets which can be used to mount it to a suitable surface.
The 100W solar panel dimensions approx. 47.87" x 26.43" x 1.5" (89.3cm x 66.8cm x 3.5cm) LxWxD.
This system includes a programmable control module which regulates and manages the solar panel power, battery power, and illumination time.
The compact control module has LED indicators to display status, and houses connections for solar panel, batteries, and lamps.
User programmable illumination time of up to 1 to 12 hours or dusk-to-dawn setting (where conditions permit).
User or installer can set the control module to run from dusk and then shut off after a certain amount of hours.
Default setting is typically dusk to dawn.
Instructions are supplied should the user or installer need to program or re-program the module*.
A MPPT charge controller can be purchased as an optional upgrade. The MPPT charge controller provides 30% more charging power, and advanced light control options.
Easy to install. All connections are simply plug & play.
The light's mounting bracket has pre-drilled holes to allow fixing using screws or bolts (not included).
An optional pole mount kit can be purchased to attach the solar panel and battery box to a pole (FL40).
20 year solar panel warranty, 5 year warranty on all other components (excluding batteries). Batteries are covered by the manufacturer*.
Additionally, unlimited, lifetime technical support is available for all warranty registrations.
Please Note: This product is a special order and is non-returnable except in the event of a fault (during its warranty period) when the product, once returned will be repaired or replaced.
The solar panel must be installed in a location where it can receive full direct sunshine (when available) and usually set facing South at an appropriate angle (where adjustment options allow). The solar panel must not be installed in a shaded or part shaded location and never indoors. The standard specifications of the system (particularly the solar panel Wattage and battery capacity) may need to be adjusted. These components are determined by your geographic location, power consumption (LED Wattage) and the total amount of hours of illumination time required. Such changes to the standard specifications may increase or decrease the cost shown. Please contact us for more information or assistance. The illumination time is estimated and subject to various factors including (but not limited to) geographic location, seasons, temperature, weather conditions & location of product etc. The illumination time of most solar lights can reduce during winter months when the weather is poor and the days are shorter. During this time insolation hours decrease accordingly. Shorter illumination time due to one or more of the above factors does not define the product as being ‘defective’ or ‘not as described’. All solar lights must be used in a completely dark location at night time otherwise they may not illuminate. Nearby strong lighting sources or ambient lighting may affect the operation of a solar light. This does not define the product as being 'defective' or 'not as described'. Please note, if you do not install or use this product for several months the battery may discharge naturally on its own. By allowing a battery to deep discharge it may cause irreversible damage as the battery may then lose the ability to recharge or hold a full charge. Although unlikely, we reserve the right to supply this product with any minor alterations or minor changes to the specifications (shown above by text description or by photographs) due to different supplies or product batches received, incorporating such product changes made by the manufacturer, without further notice. Descriptions, specifications and photographs are updated regularly but may not be current when minor changes to a product have only recently been made.
